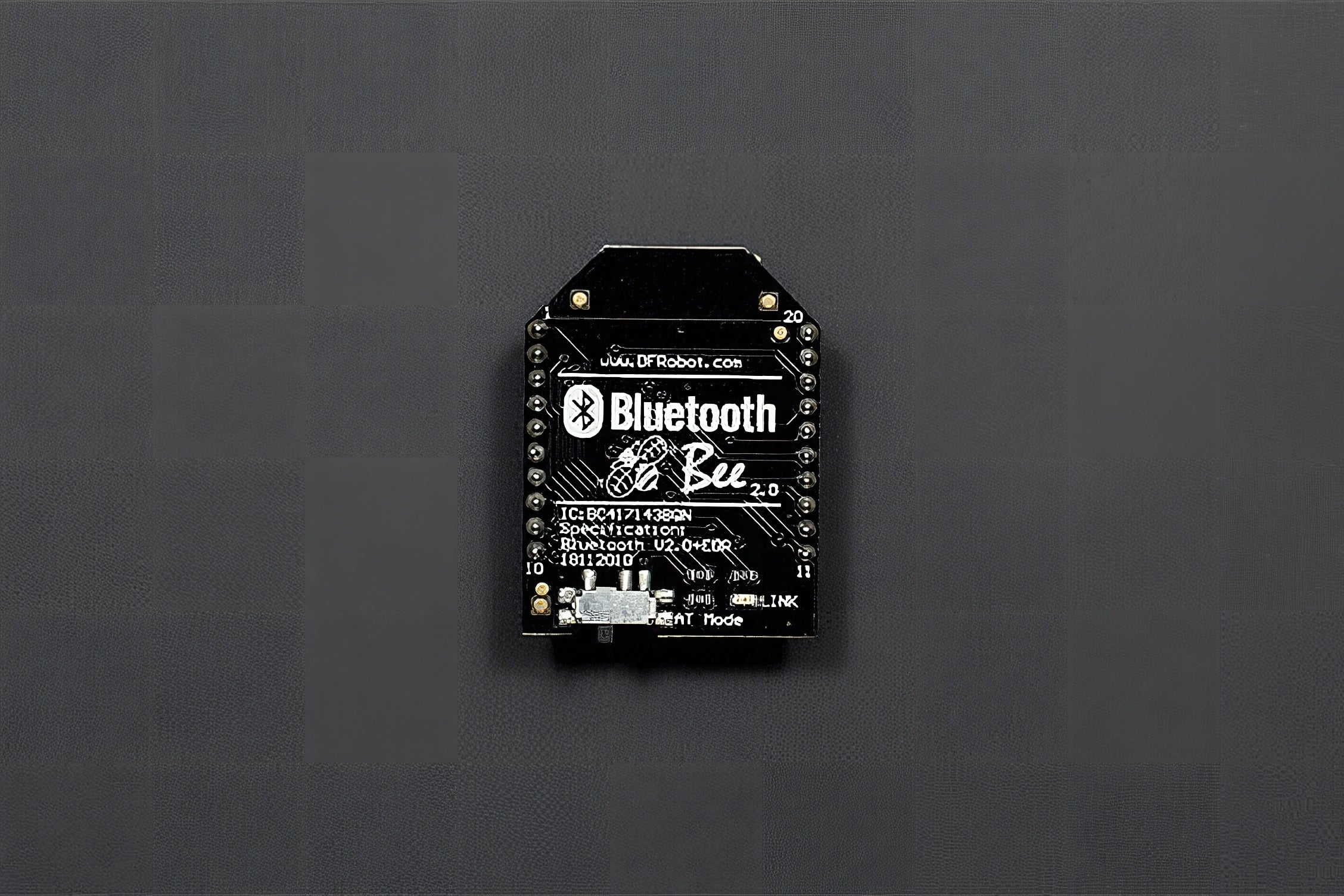

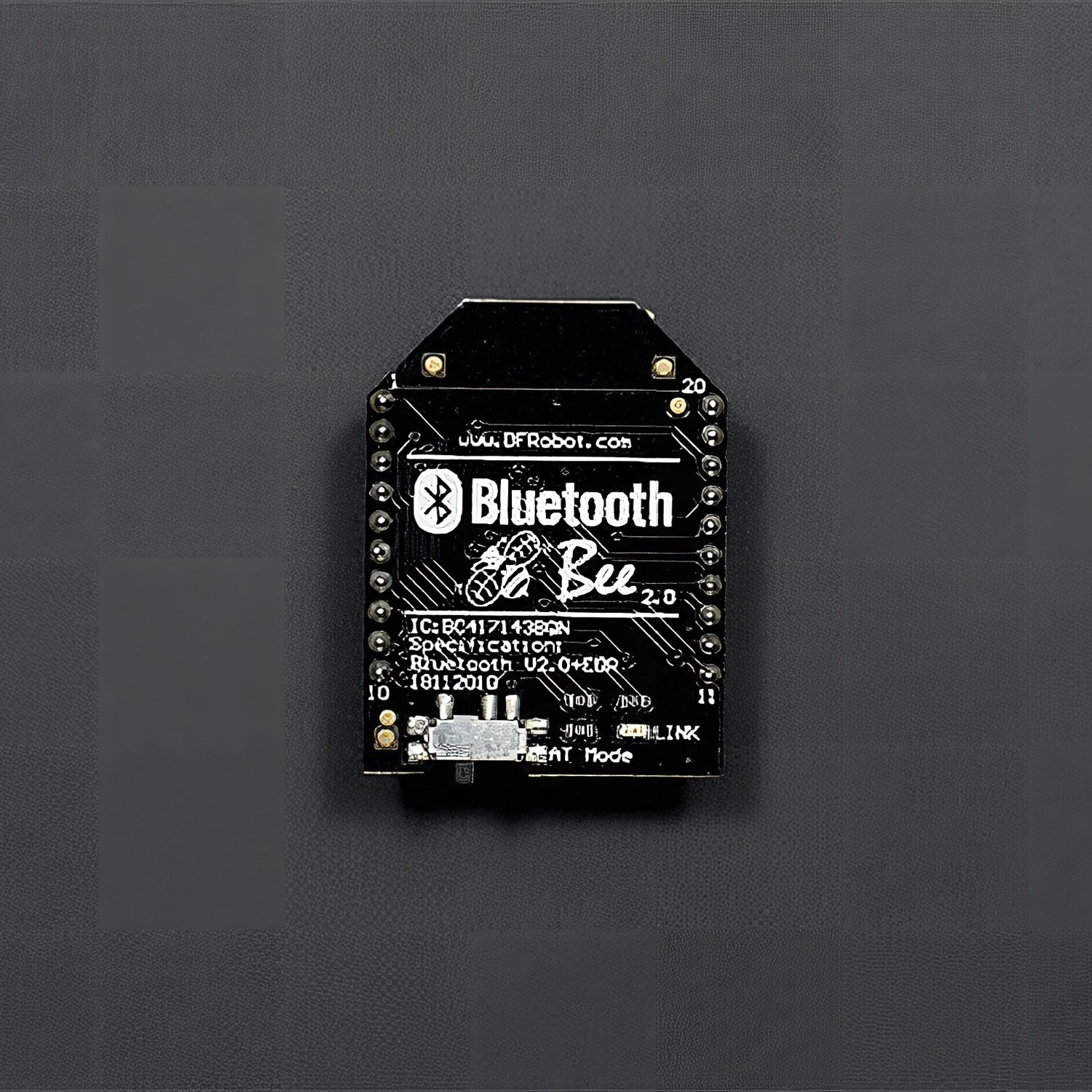

Build Faster with the Bluetooth 2.0 Bee Module For Arduino
This DFRobot Bluetooth Bee Bluetooth wireless module adapts the XBEE design. It has a compact size, the pinout is compatible with XBEE which is suitable for all kinds of microcontrollers such as Arduino who have 3.3V power out, also the module supports AT commands for parameter setting. (NOTE: You have to use an XBEE adapter for parameter setting. )
The Bluetooth Bee modules come with an onboard antenna, the antenna provides better signal quality. It acts like a transparent serial port, which works with a variety of Bluetooth adapter and Bluetooth phone.
Important: Use the official DFRobot links below for wiring, sample code, downloads, and the latest setup notes for this SKU.
Why you'll love it
- Bluetooth chip: CSR BC417143
- Bluetooth protocol: Bluetooth Specification v2.0 + EDR
- USB Protocol: USB v1.1/2.0
- Operating frequency: 2.4 ~ 2.48GHz unlicensed ISM band
- Modulation: GFSK (Gaussian Frequency Shift Keying)
- Transmit Power: ≤ 4dBm, Class 2
What you can build
This board is a good fit for learning, prototyping, robotics, and controller-based builds. Use it as the main brain for sensors, displays, wireless projects, and classroom or workshop demos.
Starter bundles
A solid starter setup includes a USB cable, breadboard, jumper wires, and a few DFRobot Gravity sensors or an LCD module for quick testing.
Recommended add-ons
Useful add-ons include sensors, displays, shields, breadboards, headers, and enclosures if you are building a complete prototype or classroom kit.
Technical specifications
| Product | Bluetooth 2.0 Bee Module For Arduino |
|---|---|
| SKU | TEL0023 |
| Brand | DFRobot |
| Interface | USB, Bluetooth |
| Bluetooth chip | CSR BC417143 |
| Bluetooth protocol | Bluetooth Specification v2.0 + EDR |
| USB Protocol | USB v1.1/2.0 |
| Operating frequency | 2.4 ~ 2.48GHz unlicensed ISM band |
| Modulation | GFSK (Gaussian Frequency Shift Keying) |
| Transmit Power | ≤ 4dBm, Class 2 |
Pinout & usage notes
Verify serial levels, baud rate, and pin mapping in the official DFRobot guide before first power-up. If you are using Gravity connectors, align the plug correctly and avoid forcing the cable into the wrong header.
DFRobot resources
Official product page: View on DFRobot
Wiki / documentation: Open DFRobot wiki
What’s in the box
1 × Bluetooth 2.0 Bee Module For Arduino
Frequently Asked Questions
Is this a good choice for learning and prototyping? Yes. It is well suited for classroom work, hobby builds, quick tests, and project development with common modules and sensors.
Does it work with other boards too? Often yes, as long as voltage, interface, and pin mapping match. ESP32 and Raspberry Pi users should still check the official docs first.
Where can I find wiring and examples? Use the official DFRobot product page and wiki links below for guides, downloads, and code examples.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
Compatibility & downloads
// downloads
- Datasheet pdf
