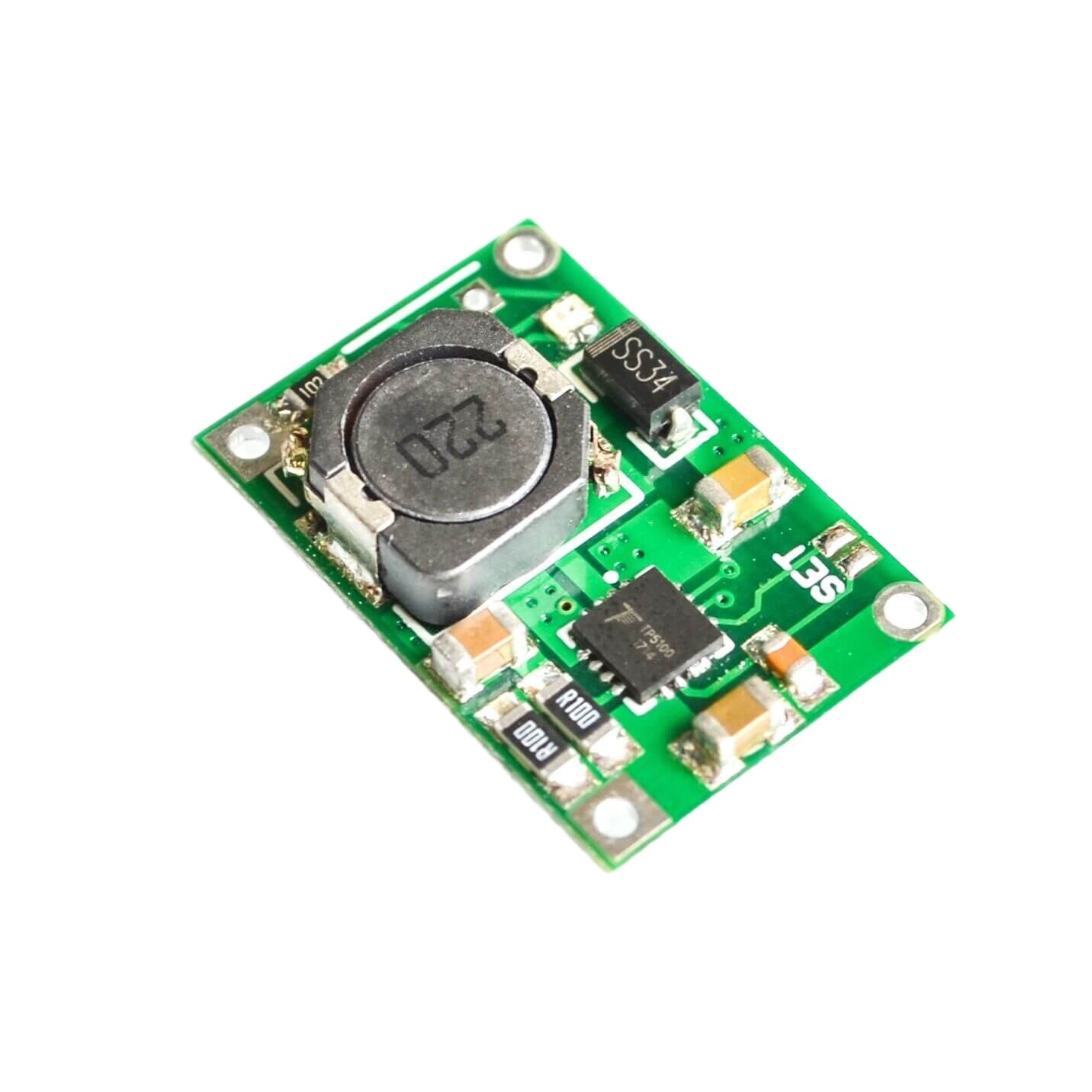

The use of TP5100 are for under voltage protection, over temperature protection, short circuit protection, battery temperature monitoring and reverse battery protection. This module is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. Its ultra-compact QFN16 package and simple external circuit, making TP5100 ideal for portable equipment so large current charging management applications.

TP5100 have 5V-15V wide input voltage, dual battery trickle charge into pre-charge, constant current, constant voltage three phase, pre-charge current trickle charge current through an external resistor adjustment, the maximum charge current up to 2A. TP5100 with a frequency of 400kHz switching mode makes it possible to use a smaller outer Suo device and the large current charging still maintain a smaller amount of heat.

TP51OO built-in power PMOSFET, anti-intrusion circuit, so no anti-intrusion protection and another external Schottky diode.

QUICK OVERVIEW

• Input voltage: 5-15V DC power supply.
• Charge status: full and unloaded blue lights, charging red.
• Double 8.4v / 4.2v lithium rechargeable single .
• Programmable charge current. 0. 1A-2A .
• Programmable steady precharge current 10% -100%.
• Wide operating voltage, maximum reach I8V.
• Red and green LED charge status indicator.
• Chip temperature protection, overcurrent protection, under voltage protection.
• Battery temperature protection, reverse battery shutdown, short circuit protection.
• Switching frequency 400Khz, usable inductance 20uH and more.
