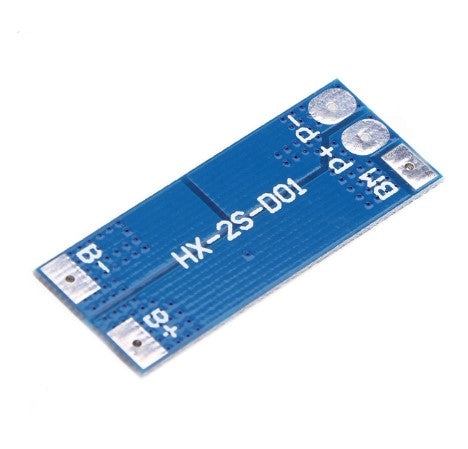

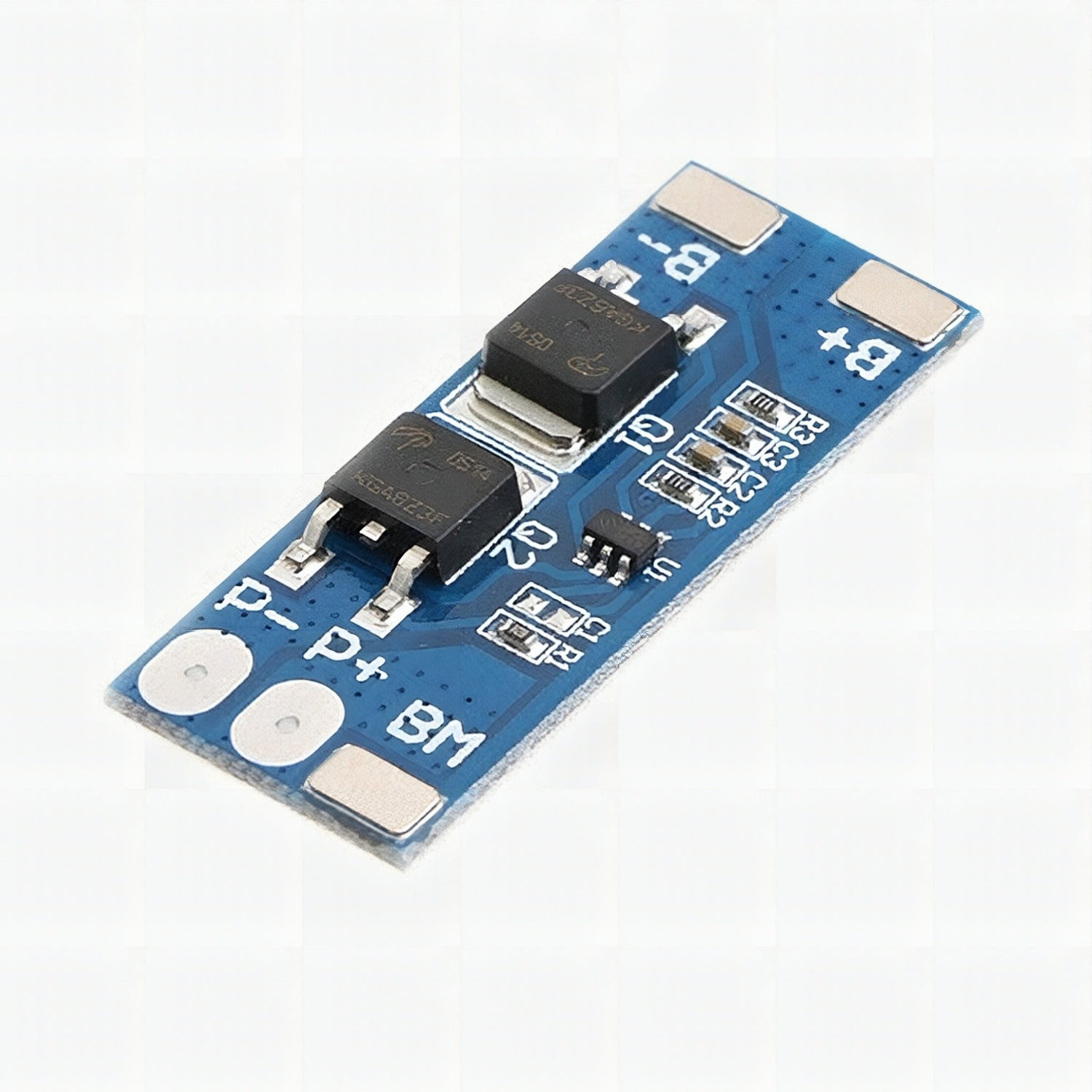

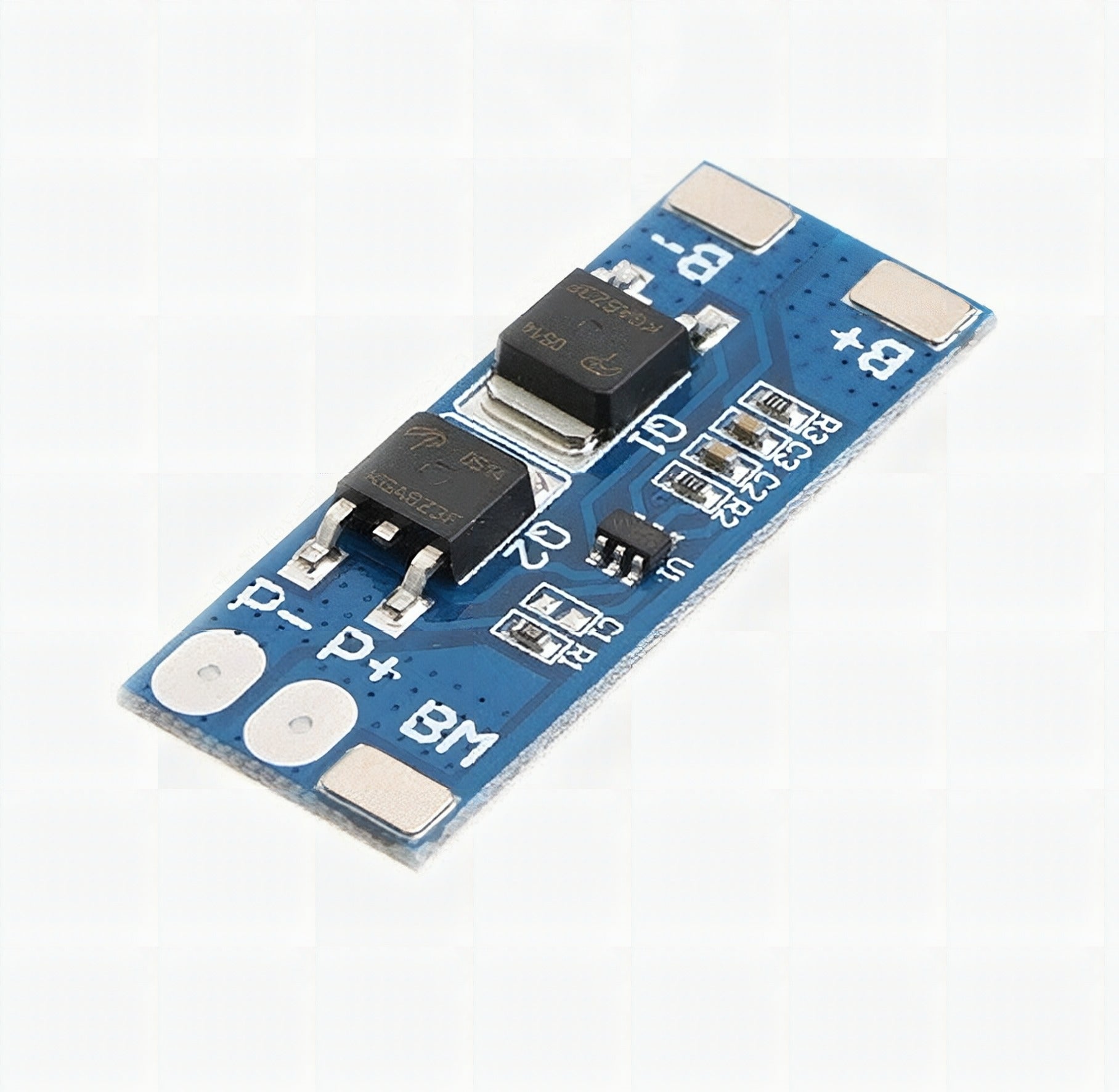

QUICK SPECS:
- Over charge voltage:4.25-4.35v±0.05v
- Over dishcarge voltage: 2.5-3.0v±0.05v
- Max continuous current:8A
- Max peak current:15A
- Working temperature:-40---+50
- Storage Temperature:-40-- +80
- Small current:less than 3uA
- Life cycle :more than 50000hours
- Resistance:Less than 300mΩ
- Short cut protection :Protectable,charge can repair
- Size: 41*16*3.5mm
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
