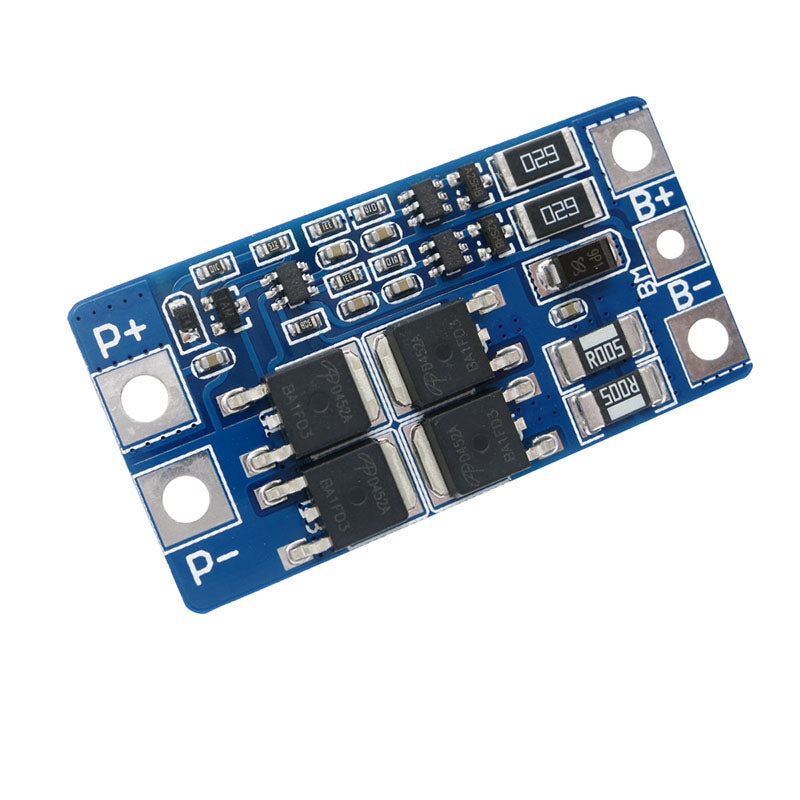

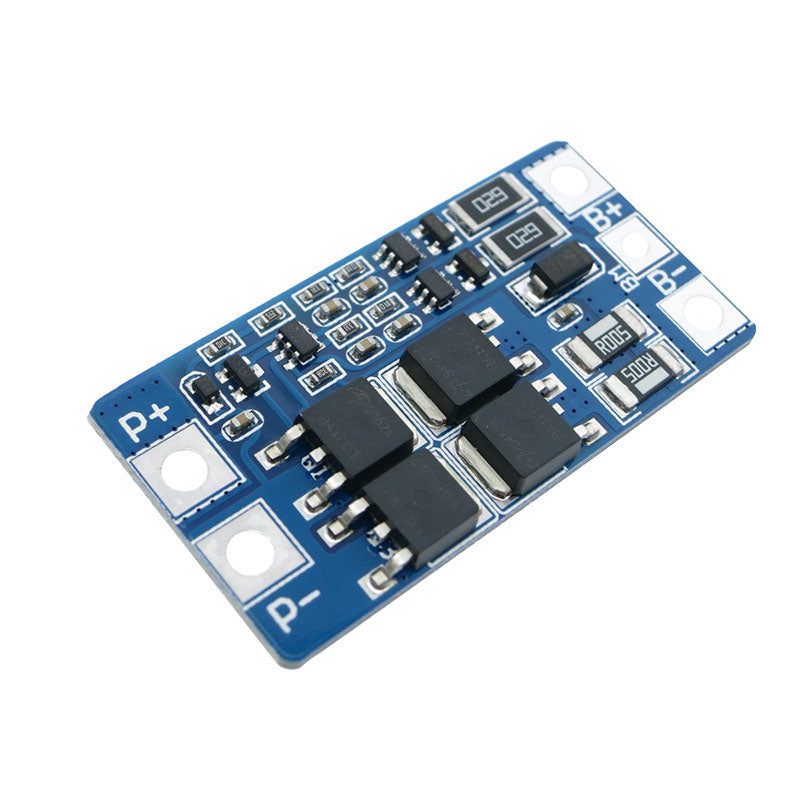

Battery 2S 10A Charger 18650 BMS

QUICK SPECS:

• Model: HX - 2S - JH20 overcharging range: 4.25-4.35 v plus or minus 0.05 v

• Size: 46.7 * 23 * 3.15mm over voltage range: 2.5-3.0 v plus or minus 0.05 v

• Maximum working current: 10 a working temperature: - 40 - + 50 ℃

• Maximum instantaneous current: 20 a storage conditions: - 40 - + 80 ℃

• Static current: less than 10uA effective life: more than 50,000 hours

• Resistance: less than 300 m Ω short circuit protection: to protect and restore must charge

• Charging voltage: 8.4 v-9v

• The protection board size and device description;

• The protective plate size is 46.7 * 23 * 3.15mm
