Barometric Pressure Sensor BMP085 Breakout

This is a simple breakout board for the BMP085 high-precision, low-power barometric pressure sensor from DFRobot. The BMP085 offers a measuring range of 300 to 1100 hPa with an absolute accuracy of down to 0.03 hPa. It's based on piezo-resistive technology for EMC robustness, high accuracy and linearity as well as long term stability. This sensor supports a voltage supply between 1.8 and 3.6VDC. It is designed to be connected directly to a micro-controller via the I2C bus

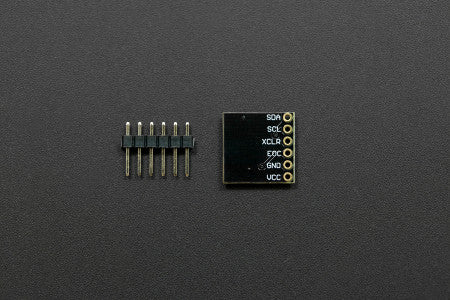

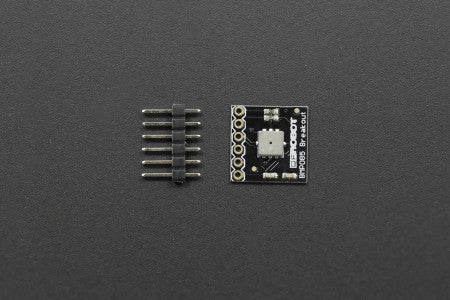

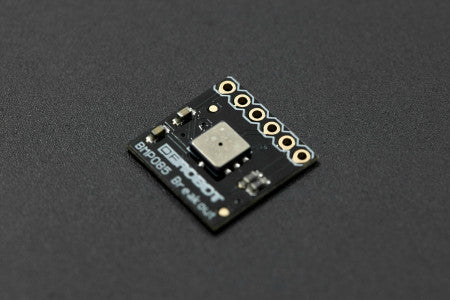

This breadboard-friendly board breaks out all pins of the BMP085 to a 6-pin 0.1" pitch header. The analog and digital supplies (VDDD and VDDA) of the BMP085 are tied together and broken out to a single pin. We've also put two 4.7k pull-up resistors on the I2C lines.

SPECIFICATION

• Digital two wire (I2C) interface

• Wide barometric pressure range

• Flexible supply voltage range

• Ultra-low power consumption

• Low noise measurement

• Fully calibrated

• Temperature measurement included

• Ultra-flat, small footprint

• Dimensions:16 x 16 mm (0.63 x 0.63")

DOCUMENTS

• BMP085 Datasheet

• Library

• Example Arduino Sketch

• Example Code (ATmega328)

• Product Flyer

• Wiring Example

• mbed User Review

• Bildr Tutorial
