This 386AMP audio amplifier module has 20 voltage gain and uses the National Semiconductor LM386 audio power amplifier chip.
In the 6V power supply, it's static power consumption is only 24mW, the module is suitable for battery-powered. The 386AMP audio amplifier can be connected to a MIC or MP3. It is ideal for robot human-machine voice interaction and sound amplification.
SPECIFICATION
- Power supply:4-12V
- Output power:VS = 6V, RL = 8W,P=325mW，Peak output 500mW
- Voltage Gain:VS = 6V, f = 1 kHz，Av=26dB
- Band width:300KHz
- Size:45x30mm
DOCUMENTS
SHIPPING LIST

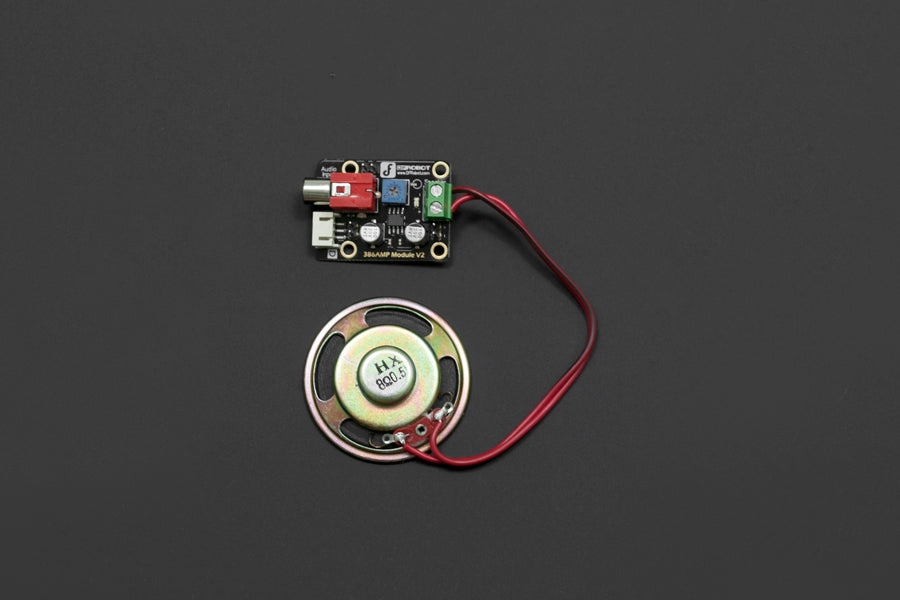

- 386AMP audio amplifier module x1
- Loud speaker x1
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
