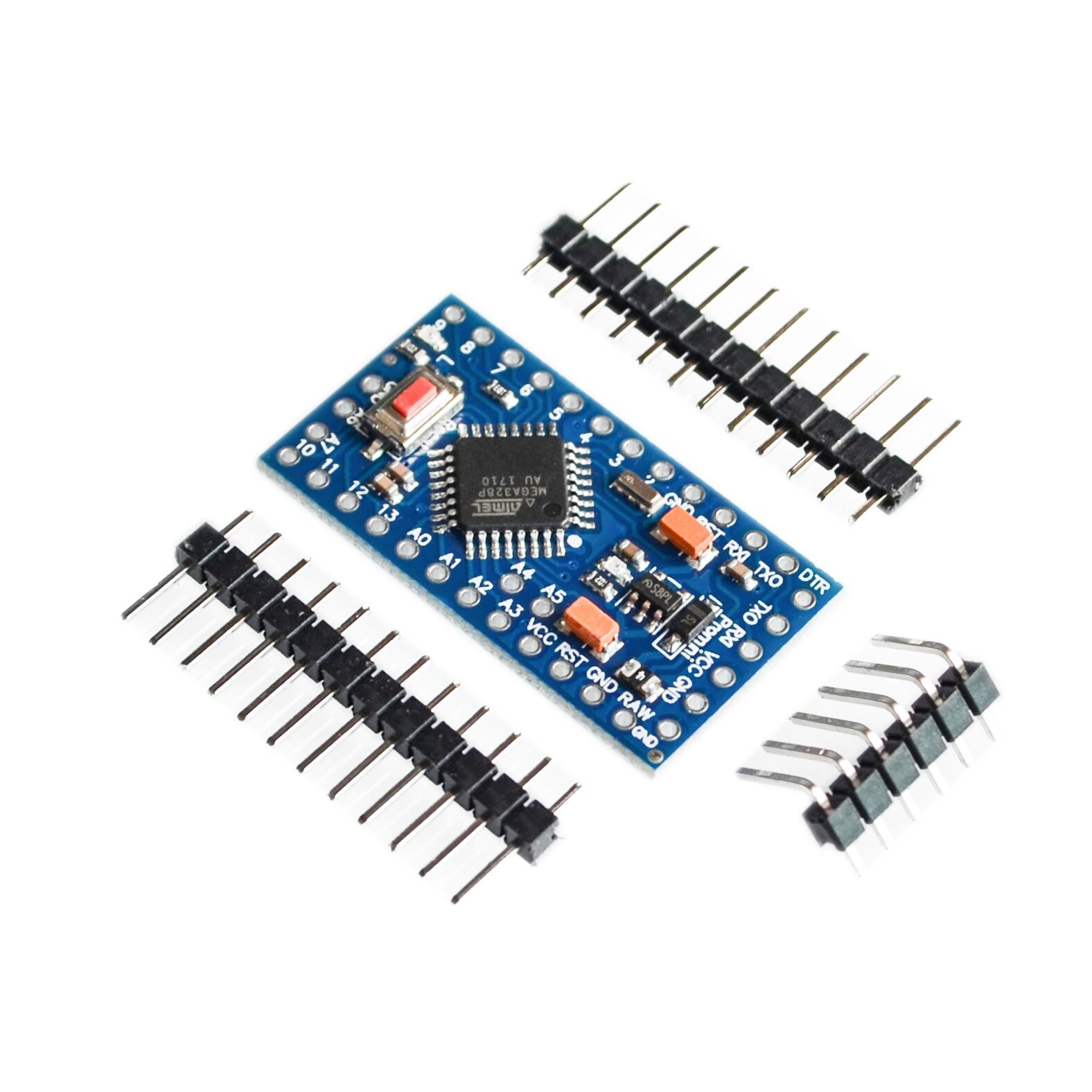

The Arduino Pro Mini is Sparkfun's take on a compact, low-cost, and adaptable Arduino development board. Its minimal components make it highly flexible and easy to integrate into any project. In order to program the Arduino Pro Mini, you need to have an FTDI cable since it doesn't have an onboard USB interface.
Specifications:
- ATmega328 running at 16MHz with external resonator (0.5% tolerance)
- 5V regulator
- DC input 5V up to 12V
- 14 digital IO - TXD, RDX, D2-D13
- 8 analog IO - A0-A7
- Reverse polarity protected
- Dimension: 33.3 *18.0mm
Inclusions:
- Arduino Pro Mini 328 x1
- 12Pin Male Header x 2
- 6Pin Male Header x 1
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
Compatibility & downloads
// downloads
- Schematic pdf
