Arduino Nano RP2040 Connect – WiFi & Bluetooth Enabled Board from Circuitrocks is ideal for DIY electronics builds.
Great for Arduino, ESP32, Raspberry Pi, and robotics or school projects here in the Philippines.

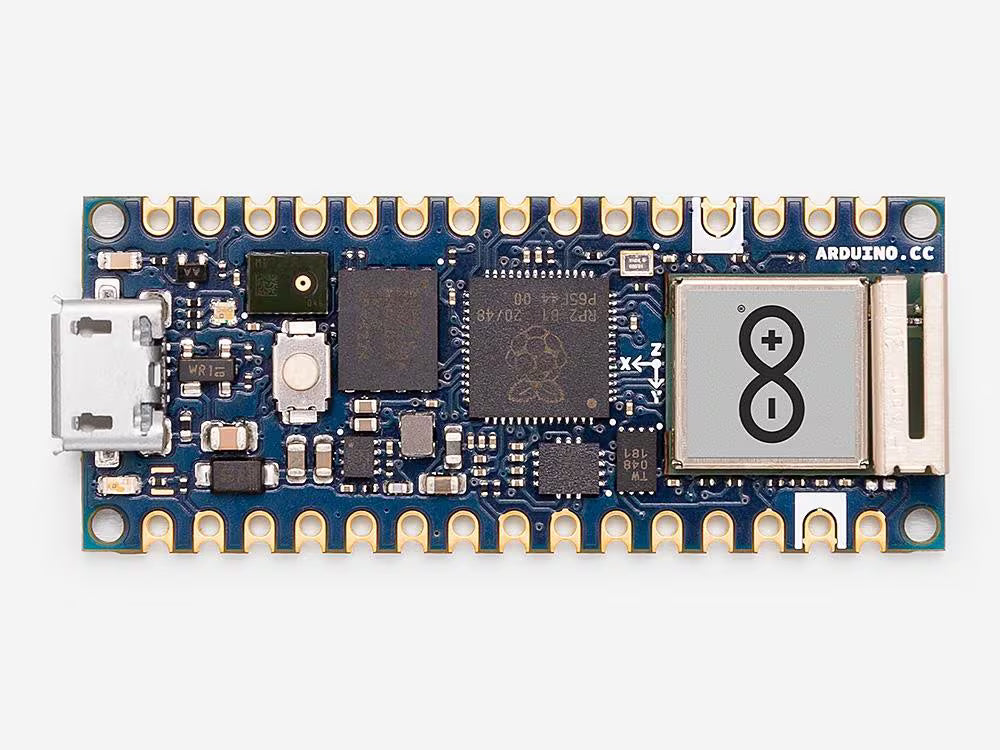

The Arduino Nano RP2040 Connect is a powerful microcontroller board that merges the flexibility of the Raspberry Pi® RP2040 chip with the wireless capabilities of the u-blox NINA-W102 module. Designed for IoT, AI, and connected projects, it’s packed into the classic Nano form factor, making it small, versatile, and breadboard-friendly.
With dual-core processing at 133 MHz, built-in Wi-Fi® and Bluetooth®, a 6-axis IMU sensor, and an onboard microphone, the Nano RP2040 Connect is an ideal choice for projects in robotics, automation, wearable devices, and real-time data applications. The ATECC608A crypto chip ensures secure communication for cloud-based IoT deployments.
Key Features
- Raspberry Pi RP2040 MCU – Dual-core Arm® Cortex®-M0+ running at 133 MHz.
- Wireless Connectivity – Integrated Wi-Fi® and Bluetooth® via u-blox NINA-W102.
- Onboard Sensors – LSM6DSOXTR 6-axis IMU and MP3DT06JTR microphone.
- Crypto Security – ATECC608A secure element for safe IoT communication.
- Versatile I/O – 20 digital pins, 8 analog inputs, 20 PWM outputs.
- Compact & Lightweight – Classic Nano size (45 × 18 mm, 6 g).
Technical Specifications
Microcontroller: Raspberry Pi® RP2040
Processor: Dual-core Arm® Cortex®-M0+, 133 MHz
Pins & I/O
- Digital I/O Pins: 20
- Analog Input Pins: 8
- PWM Pins: 20 (except A6, A7)
- External Interrupts: 20 (except A6, A7)
- Built-in LED Pin: 13
Connectivity
- Wi-Fi® / Bluetooth®: u-blox NINA-W102 module
- Secure Element: ATECC608A-MAHDA-T
Sensors
- IMU: LSM6DSOXTR (6-axis accelerometer + gyroscope)
- Microphone: MP3DT06JTR
Communication Interfaces
- UART: Yes
- I2C: Yes
- SPI: Yes
Power
- Operating Voltage: 3.3V
- Input Voltage (VIN): 5–21V
- DC Current per I/O Pin: 4 mA
Memory
- Flash IC (AT25SF128A-MHB-T): 16 MB
- NINA-W102 Module: 448 KB ROM, 520 KB SRAM, 16 MB Flash
Physical
- Dimensions: 45 mm × 18 mm
- Weight: 6 g
- USB Connector: Micro-USB
The Arduino Nano RP2040 Connect is the most feature-packed board in the Nano family, combining dual-core processing, wireless connectivity, secure communication, and onboard sensors in a tiny footprint—perfect for IoT, AI, robotics, and real-time sensor projects.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
