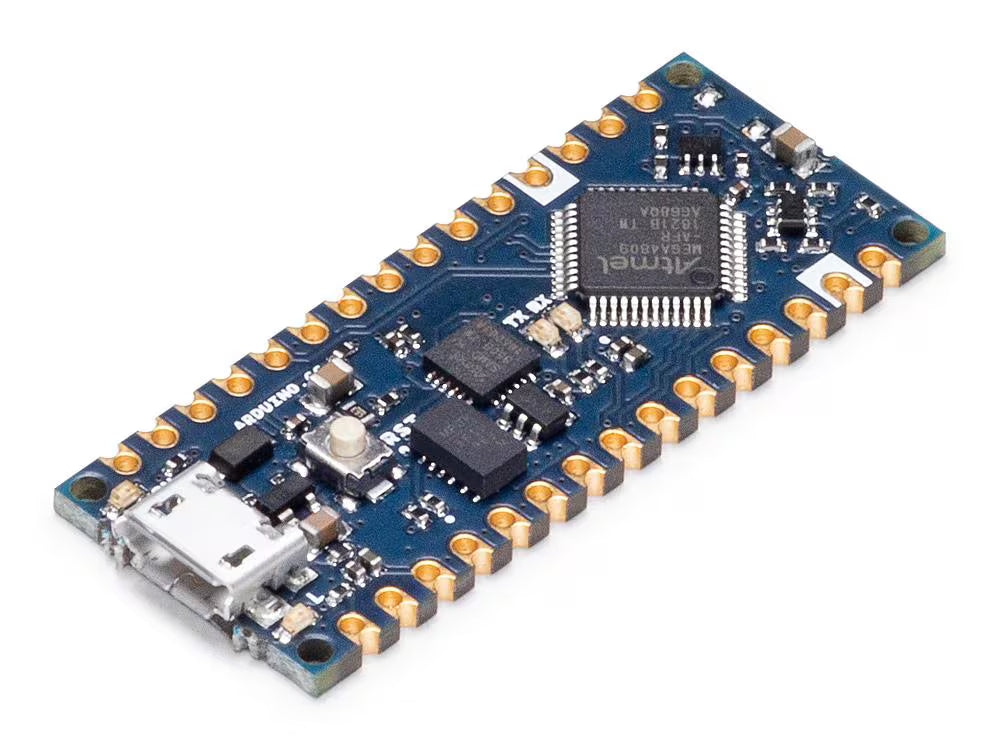

Arduino Nano Every – Compact ATmega4809 Development Board

The Arduino Nano Every is the evolution of the classic Arduino Nano, designed to deliver more memory, higher performance, and a lower price point while maintaining the same small form factor. Built around the ATmega4809 microcontroller, it offers a balance of simplicity and power, making it an excellent choice for everyday projects, education, prototyping, and DIY electronics.

With 48 KB of Flash, 6 KB SRAM, and a faster 20 MHz clock speed, the Nano Every outperforms the original Nano in memory and speed. It provides familiar connectivity with UART, SPI, and I²C interfaces, as well as 5 PWM pins and 8 analog inputs for versatile control.

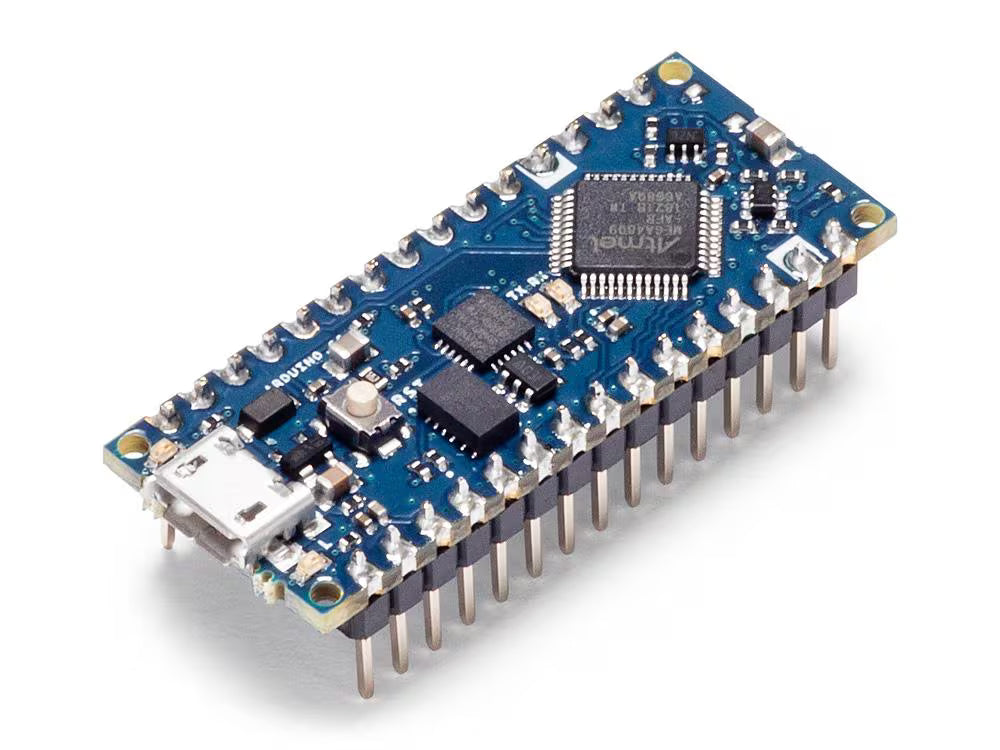

Despite its compact size (45 × 18 mm, only 5 g with headers), it remains breadboard-friendly and plug-and-play with the Arduino IDE.

Key Features

• ATmega4809 MCU – More memory and higher performance than the original Nano.
• Compact Design – Classic Nano size, perfect for breadboards and embedded projects.
• Affordable & Powerful – Cost-effective upgrade for students, makers, and educators.
• Versatile I/O – 8 analog inputs, 5 PWM pins, and support for UART, SPI, and I²C.
• Plug & Play – Uses ATSAMD11D14A as USB-to-serial bridge for easy programming.

Technical Specifications

• Microcontroller: ATmega4809
• Operating Voltage: 5V
• VIN Range: 7–21V
• Clock Speed: 20 MHz

Memory

• Flash Memory: 48 KB
• SRAM: 6 KB
• EEPROM: 256 bytes

I/O

• Digital I/O Pins: All support external interrupts

PWM Pins: 5 (D3, D5, D6, D9, D10)

• Analog Input Pins: 8 (10-bit ADC)
• Analog Output: Only via PWM (no DAC)
• LED Built-in: Pin 13

Communication

• UART: 1
• SPI: 1
• I²C: 1

Power

• DC Current per I/O Pin: 20 mA
• DC Current for 3.3V Pin: 50 mA

Physical

• USB Interface: ATSAMD11D14A (USB-to-serial)
• Dimensions: 45 mm × 18 mm
• Weight: 5 g (with headers)
