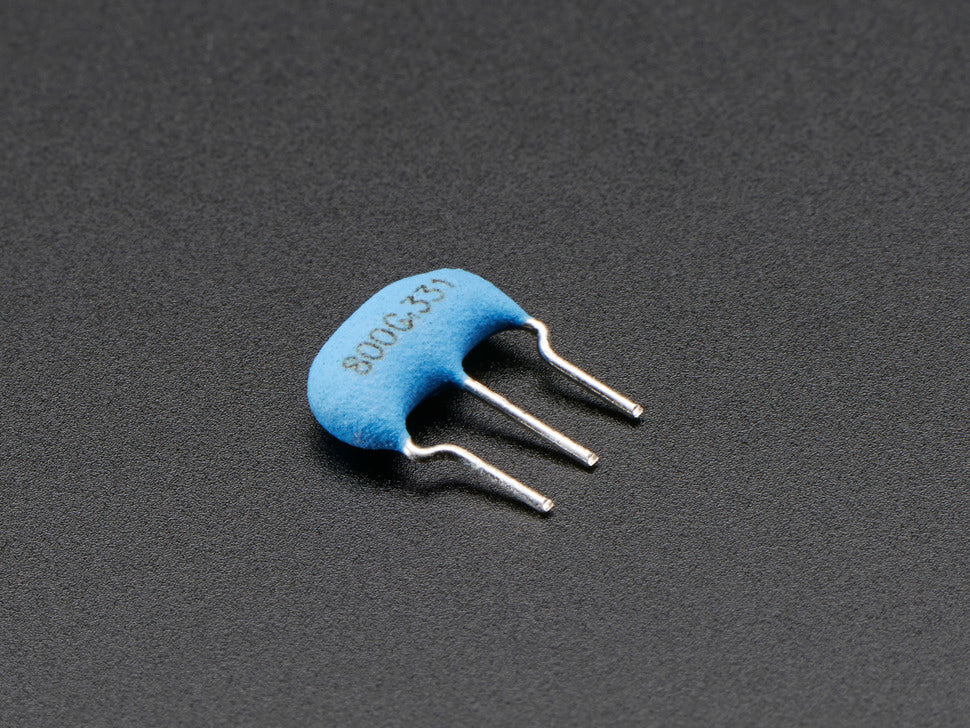

Keep your microcontroller tickin' with a ceramic oscillator. These little devices are bread-board friendly (0.1" pin spacing) and easy to use. They act much like crystals with the 'stability' capacitors inside. They have 0.5% accuracy, great for every day electronics and microcontroller work and certainly precise enough for UART or other baud-rate generation. For ultra-high precision needs (USB timing, long-term time-keeping, RF/PLL/VCO driving) you may need a crystal or temperate-compensated oscillator.
To use, connect the two outer pins to XTAL-in and XTAL-out on your circuit (they package is symmetric so use whichever outer pin) and the inner pin to ground. Check the datasheet for more specs
TECHNICAL DETAILS
- Total Dimensions: 8mm x 9mm x 2mm / .3" x .4" x .08"
- Pin Length: 4.3mm / .17"
- DATASHEET
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
