600W DC-DC Booster Module Solar Notebook Power Supply 10-60V Liter 12-80V

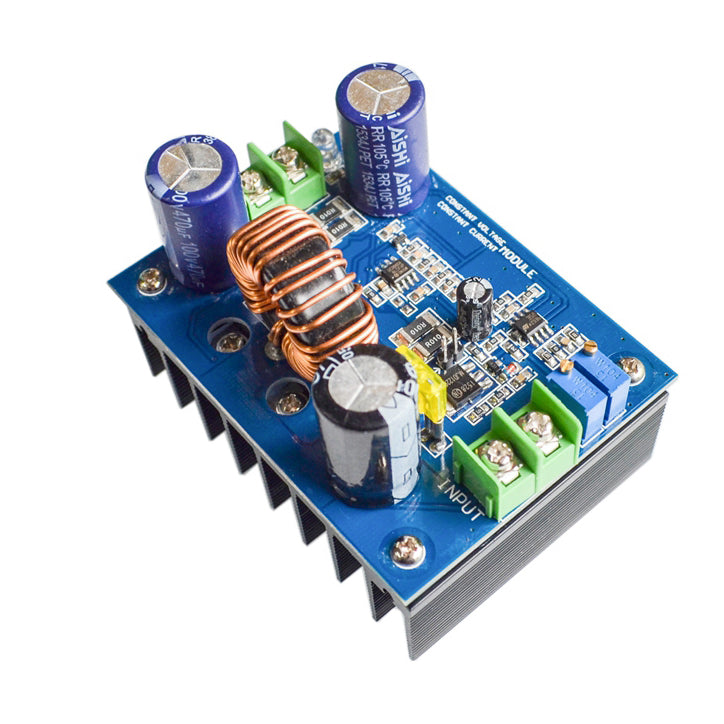

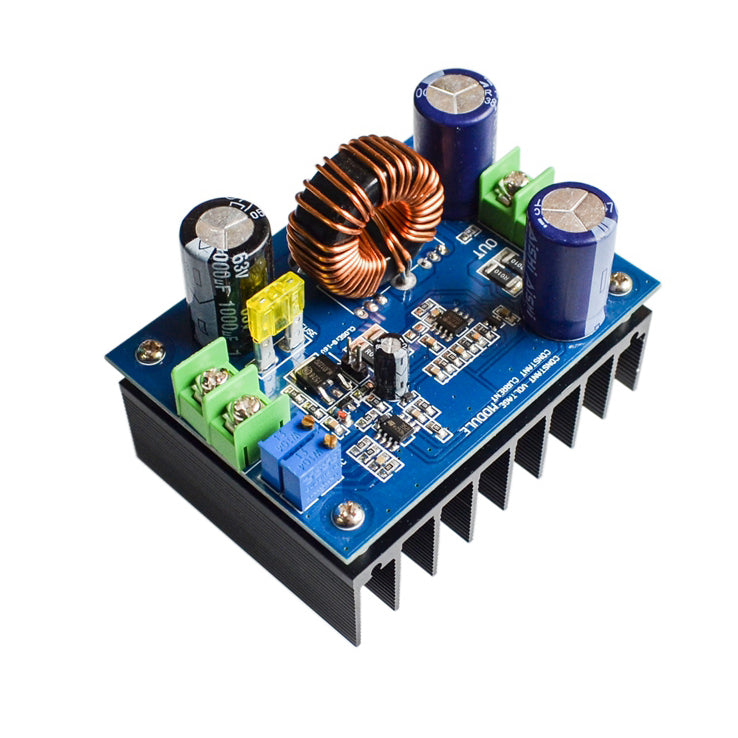

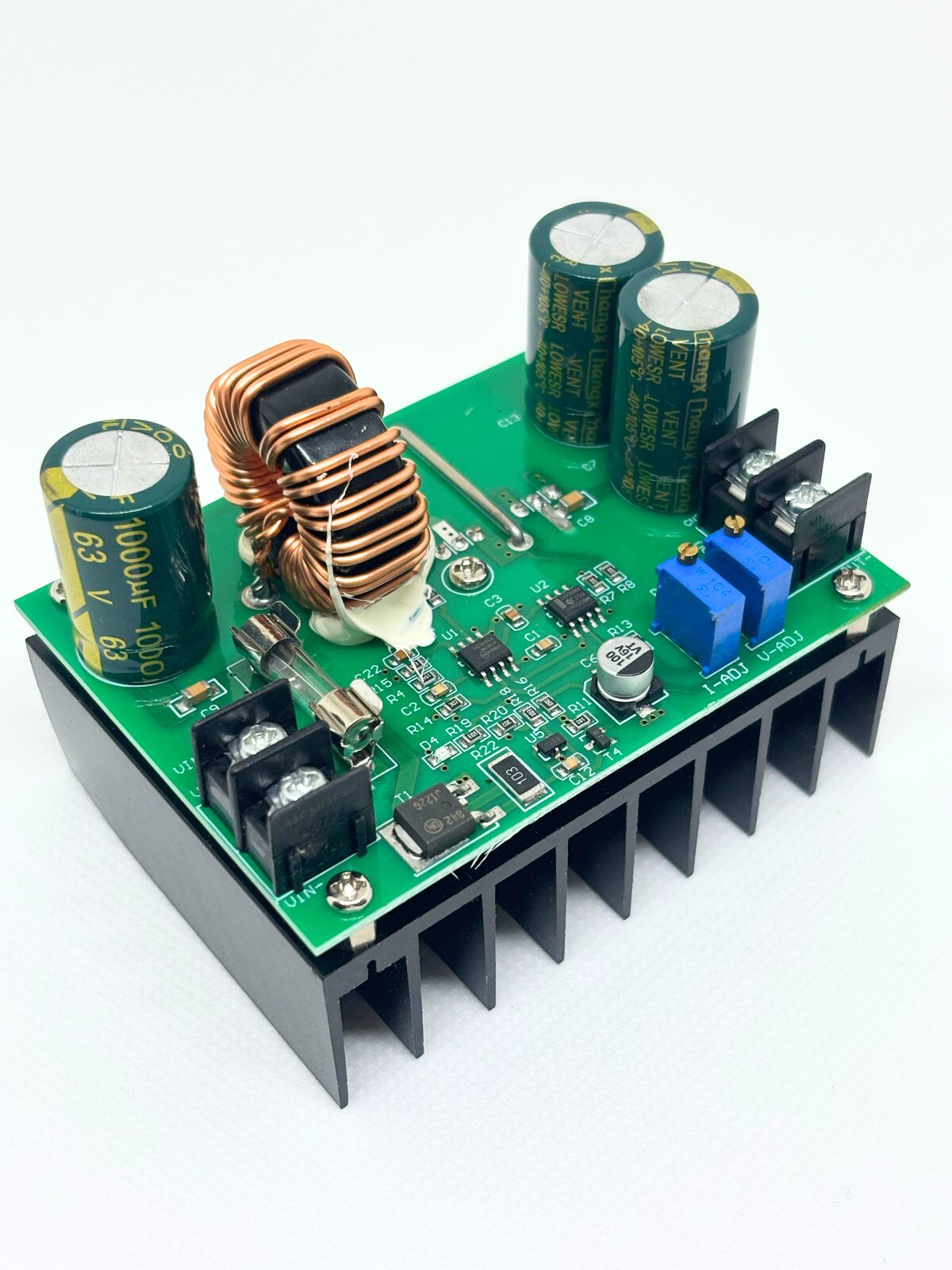

The DC-DC 600W Step-Up Boost Converter Module is a high-power, versatile device designed to increase the voltage from a lower-voltage DC source to a higher-voltage DC output. It is equipped with a large heatsink on the bottom for efficient heat dissipation, making it suitable for applications requiring a significant boost in voltage.

Features:

  • High Power: Capable of delivering up to 600W, making it suitable for high-power applications.
  • Wide Voltage Input: Accepts input voltages ranging from 10V to 60V, offering flexibility for various power sources.
  • Adjustable Output: Provides an adjustable output voltage from 12V to 80V, allowing for a wide range of uses.
  • Adjustable Output Current: The output current can also be adjusted to meet the needs of specific applications.
  • Ultra-Low Dropout Voltage: Ensures efficient operation with minimal voltage loss.
  • Short Circuit Protection: Includes a fuse (20A input fuse) for short circuit protection.
  • Overcurrent Protection: Enhances safety with built-in overcurrent protection.
  • High Operating Frequency: Operates at 150KHz, enabling efficient power conversion.

Specifications:

  • Module Type: Step-Up (Boost)
  • Input Voltage: 12V-60V
  • Input Current: Maximum 15A
  • Output Voltage: 12V-80V adjustable
  • Output Current: Maximum 10A
  • Output Power: Up to 600W
  • Protection: Short circuit, overcurrent
  • Operating Frequency: 150KHz
  • Efficiency: Up to 95%
  • Dimensions: 76 x 60 x 56mm (L x W x H)
  • Weight: 250g

Applications:

  • DIY Regulated Power Supply: Ideal for creating an adjustable output power supply from a 12V input.
  • Electronic Equipment Power Supply: Can be used to power electronic devices, allowing for voltage adjustment to match system requirements.
  • Vehicle Power Supply: Suitable for powering laptops, PDAs, or other digital products in vehicles.
  • High-Power Notebook Mobile Power: Combine with a high-capacity 12V lithium battery pack for portable power solutions.
  • Solar Panel Regulator: Can be used to regulate solar panel outputs.
  • Battery Charging: Suitable for charging batteries, including rechargeable lithium batteries.
  • Driving High-Power LED Lights: Capable of powering high-power LED lighting systems.

Note: The maximum output power of the module depends on the input voltage and current. For example, with an input voltage of 12V, the maximum output power is 120W (12V * 10A), and with an input voltage of 60V, the maximum output power reaches 600W (60V * 10A). It's important to consider the input voltage and current limitations when planning your application to ensure optimal performance.
