Stable 5V Power for Embedded Builds

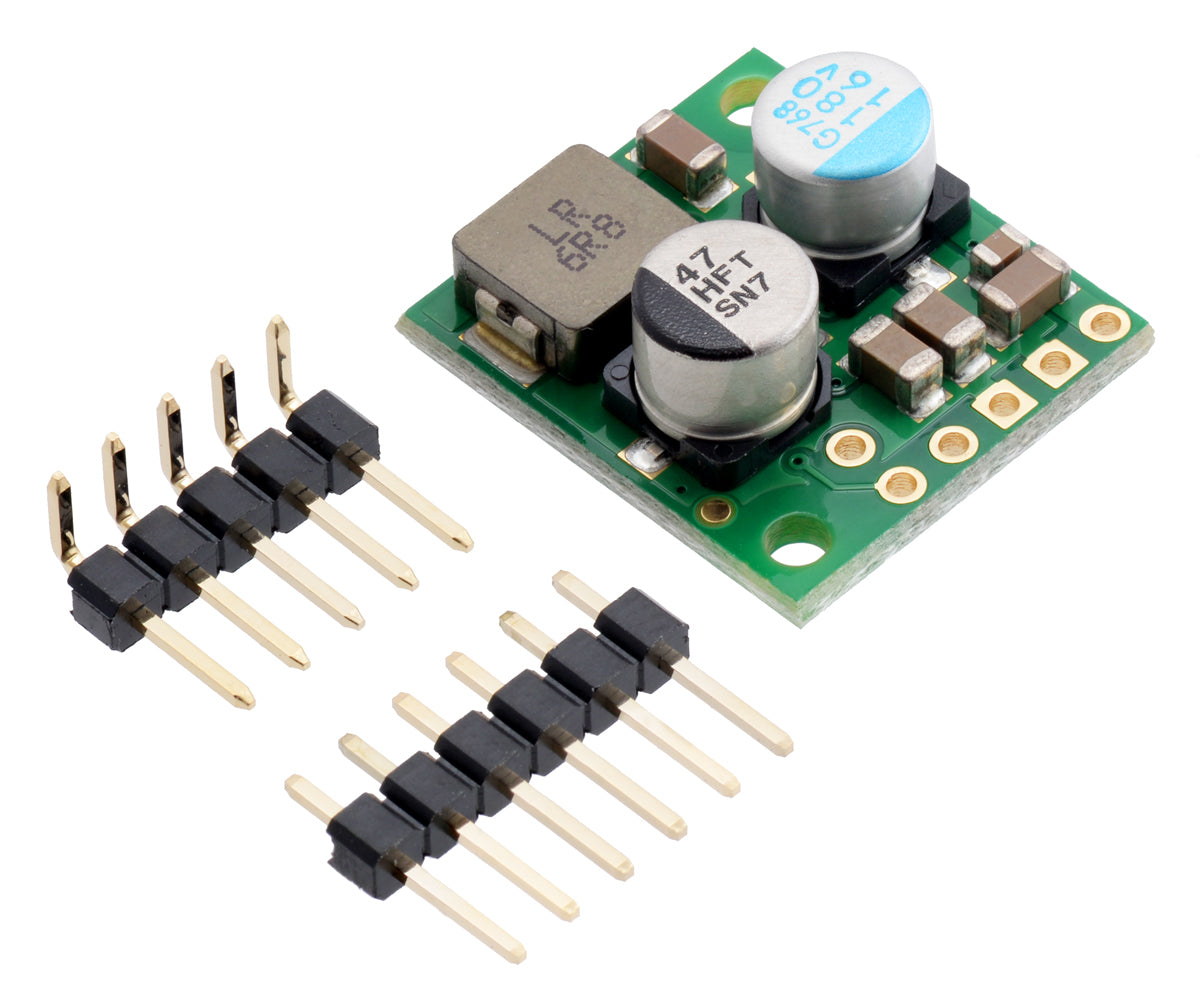

The 5V, 3.2A Step-Down Voltage Regulator D36V28F5 is a compact switching regulator for projects that need a lower and more stable DC rail from a higher input source.
It is a strong fit for robots, control boxes, battery-powered builds, and embedded systems that need efficient power conversion with less heat than a linear regulator.
Important: Choose a regulator based on your full input-voltage range, startup current, thermal limits, and required headroom. Real output current depends on input voltage, airflow, and temperature.
Why you'll love it
- Efficient buck conversion: wastes far less heat than linear regulators when VIN is much higher than 5V
- Powerful for its size: typical max continuous current around 3.2A (thermal conditions and VIN affect real-world output)
- Wide input range: ideal for battery packs and industrial rails (within 5.3–50V)
- Reverse-voltage protection: helps protect against accidental polarity reversal on input (within protection limits)
- Low idle draw: designed for efficient always-on 5V rails in embedded systems
- Better efficiency vs. 7805-style linear regulators
What you can build
Great for powering 5V or 12V rails in robots, controllers, sensor hubs, SBC projects, vehicle electronics, and custom battery systems.
Compare regulator options
| Model | Topology | Output | Max current |
|---|---|---|---|
| S13V10F5 | Buck-Boost | 5 V | 1 A |
| D24V10F5 | Buck | 5 V | 1 A |
| S13V20F5 | Buck-Boost | 5 V | 2 A |
| D24V22F5 | Buck | 5 V | 2.5 A |
| D36V28F5 | Buck | 5 V | 3.2 A |
| D30V30F5 | Buck | 5 V | 3.4 A |
| D24V50F5 | Buck | 5 V | 5 A |
Technical specifications
| Product | 5V, 3.2A Step-Down Voltage Regulator D36V28F5 |
|---|---|
| Brand | Pololu |
| Model | D36V28F5 |
| Category | DC-DC Step-Down Regulator |
| Topology | Step-Down (Buck) |
| Output Voltage | 5 V |
| Max Current | 3.2 A |
| Operating Voltage | 5.3-50 V |
| Support | Official Pololu product search and support resources linked below |
Official resources
Find this product on Pololu | Pololu support and resources
What’s in the box
1 × 5V, 3.2A Step-Down Voltage Regulator D36V28F5
Frequently Asked Questions
Can I power a microcontroller with this?
Yes, if the regulator’s output voltage and current match your controller and all attached loads.
Yes, if the regulator’s output voltage and current match your controller and all attached loads.
Will it run cool at full load?
It depends on input voltage, airflow, and load current. Check thermal limits in the official Pololu resources.
It depends on input voltage, airflow, and load current. Check thermal limits in the official Pololu resources.
Is this better than a linear regulator?
For many builds, yes. Switching regulators are usually more efficient and waste less heat.
For many builds, yes. Switching regulators are usually more efficient and waste less heat.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
