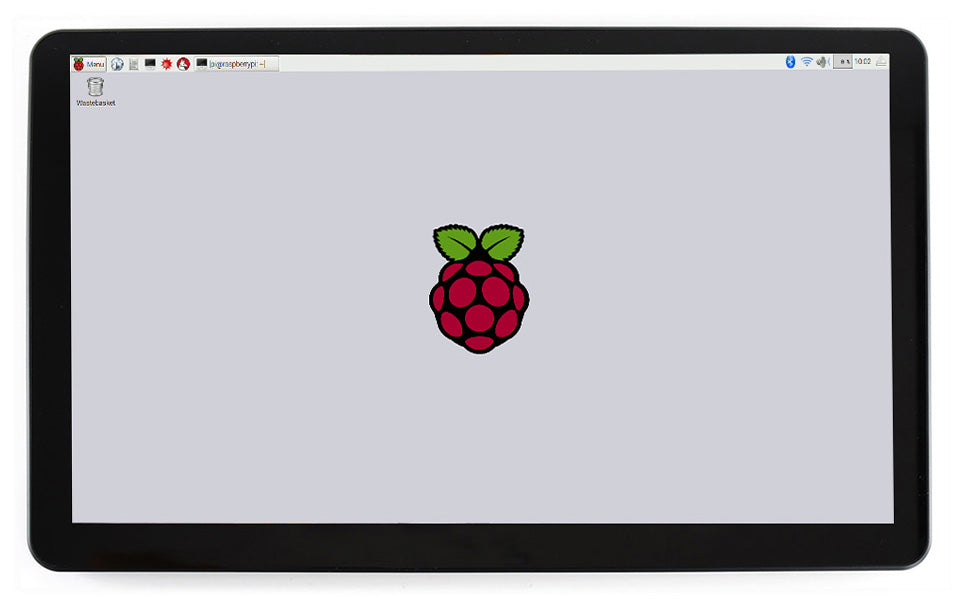

Large 15.6-inch Full HD Touch Display with Case for Premium Raspberry Pi and PC Projects
The 15.6inch Capacitive Touch Screen LCD with Case is the biggest display in this Waveshare group and the best choice when you need more room for full dashboards, media playback, or demo-ready touch interfaces. Its 1920×1080 IPS panel gives you Full HD clarity with wide viewing angles, while the 10-point capacitive touch panel supports more natural interaction.
This model includes a case, toughened glass cover, HDMI and VGA input, a built-in Hi-Fi speaker, and a 3.5mm audio jack. It is a strong fit for trade show displays, smart home control hubs, digital signage, and premium embedded UI projects.
Important: Official Waveshare docs say touch point count depends on the operating system. Raspberry Pi OS and Windows support 10-point touch, while Ubuntu and some other systems are listed as single-point touch.
Why you'll love it
- 15.6-inch Full HD screen: Best for big dashboards, media, and readable touch UIs
- 10-point capacitive touch: Smooth, modern touch response
- Case included: Looks cleaner in finished installs
- Hi-Fi speaker and 3.5mm audio: Useful for media and interactive displays
- HDMI and VGA input: More flexible for older and newer source devices
- Wide platform support: Works with Raspberry Pi, Jetson, PCs, and game consoles
Good fit for
This display works well for Large premium touch screens. It is a practical choice if you want an official Waveshare HDMI screen with clear setup docs and strong compatibility with Raspberry Pi workflows.
Waveshare display lineup comparison
| Model | Size | Resolution | Touch | Panel | Interface | Case | Best for |
|---|---|---|---|---|---|---|---|
| 3.5inch HDMI LCD | 3.5" | 480×320 | Resistive (SPI) | IPS | HDMI | No | Small dashboards and handheld use |
| 5inch HDMI LCD | 5" | 800×480 | Resistive (SPI) | TFT | HDMI | No | Budget Raspberry Pi touch builds |
| 7inch HDMI LCD | 7" | 1024×600 | Resistive (SPI) | IPS | HDMI | No | Mid-size dashboards and HMIs |
| 10.1inch HDMI LCD | 10.1" | 1024×600 | Resistive (SPI) | IPS | HDMI | No | Large HMIs and workbench displays |
| 7inch HDMI LCD (H) with Case | 7" | 1024×600 | Capacitive, 5-point (USB) | IPS | HDMI / VGA | Yes | Ready-to-deploy kiosk and desktop use |
| 10.1inch HDMI LCD (B) with Case | 10.1" | 1280×800 | Capacitive, 10-point (USB) | IPS | HDMI | Yes | Higher-res touch dashboards |
| 13.3inch HDMI LCD (H) (with case) V2 | 13.3" | 1920×1080 | Capacitive, 10-point (USB) | IPS | HDMI / VGA | Yes | Premium Full HD touch displays |
| 15.6inch HDMI LCD (H) with Case ← this model | 15.6" | 1920×1080 | Capacitive, 10-point (USB) | IPS | HDMI / VGA | Yes | Large premium touch screens |
| 11.9inch HDMI LCD | 11.9" | 320×1480 | Capacitive, 5-point (USB) | IPS | HDMI | No | Portrait dashboards and side screens |
Technical specifications
| Screen Size | 15.6" |
|---|---|
| Resolution | 1920×1080 |
| Display Interface | HDMI / VGA |
| Display Panel | IPS |
| Viewing Angle | 178° |
| Touch Type | Capacitive |
| Touch Points | 10-point |
| Touch Interface | USB |
| Touch Panel | Toughened glass |
| Audio | Hi-Fi speaker + 3.5mm jack |
| Enclosure | Polycarbonate case |
| Best Fit | Large-format dashboards, signage, media, premium touch installs |
| System Support | Raspberry Pi OS / Ubuntu / Kali / Retropie; Jetson Nano; Windows 11/10/8.1/8/7; Xbox / PS4 / Switch display support |
Official Waveshare resources
Official product page
Official wiki / setup guide
Frequently Asked Questions
Does this work with Raspberry Pi?
Yes. Official Waveshare resources list Raspberry Pi support for this model.
How is touch connected?
This model uses Capacitive, 10-point (USB).
Can I use it with a PC?
Yes. Official Waveshare documentation lists PC support for this model. Touch behavior can vary by operating system, so check the official wiki for setup notes.
Does it include a case?
Yes. This model includes a case.
