Full HD 13.3-inch Capacitive Touch Display with Case for Premium Embedded Setups

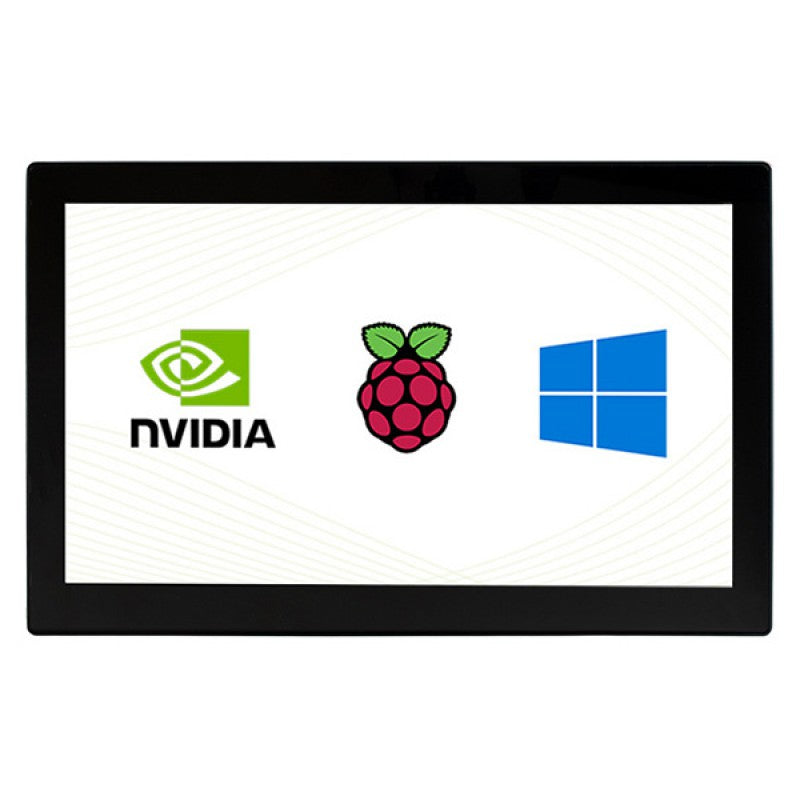

The 13.3inch Capacitive Touch Screen LCD with Case V2 is a premium Full HD display for Raspberry Pi, Jetson, mini PCs, and game consoles. Its 1920×1080 IPS panel gives you desktop-like sharpness, while the 10-point capacitive touch panel makes it much better for rich interfaces than basic resistive models.
This version adds a case, toughened glass cover, speaker, 3.5mm audio output, and VGA support. It is a strong pick for wall-mounted dashboards, touch kiosks, retail screens, client demos, and polished smart-display projects.
Important: Official Waveshare docs say touch point count depends on the host OS. Raspberry Pi OS and Windows support 10-point touch, while Ubuntu and some other systems are listed as single-point touch.
Why you'll love it
- Full HD 1920×1080 panel: Great for rich dashboards, media, and desktop-like layouts
- 10-point capacitive touch: Smooth interaction for touch-first interfaces
- Case and stand-ready design: More polished for public-facing installs
- Built-in speaker and 3.5mm audio: Useful for multimedia and signage
- HDMI and VGA input: Connects to more source devices
- Raspberry Pi, Jetson, PC, and console support: Flexible for many project types
Good fit for
This display works well for Premium Full HD touch displays. It is a practical choice if you want an official Waveshare HDMI screen with clear setup docs and strong compatibility with Raspberry Pi workflows.
Waveshare display lineup comparison
| Model | Size | Resolution | Touch | Panel | Interface | Case | Best for |
|---|---|---|---|---|---|---|---|
| 3.5inch HDMI LCD | 3.5" | 480×320 | Resistive (SPI) | IPS | HDMI | No | Small dashboards and handheld use |
| 5inch HDMI LCD | 5" | 800×480 | Resistive (SPI) | TFT | HDMI | No | Budget Raspberry Pi touch builds |
| 7inch HDMI LCD | 7" | 1024×600 | Resistive (SPI) | IPS | HDMI | No | Mid-size dashboards and HMIs |
| 10.1inch HDMI LCD | 10.1" | 1024×600 | Resistive (SPI) | IPS | HDMI | No | Large HMIs and workbench displays |
| 7inch HDMI LCD (H) with Case | 7" | 1024×600 | Capacitive, 5-point (USB) | IPS | HDMI / VGA | Yes | Ready-to-deploy kiosk and desktop use |
| 10.1inch HDMI LCD (B) with Case | 10.1" | 1280×800 | Capacitive, 10-point (USB) | IPS | HDMI | Yes | Higher-res touch dashboards |
| 13.3inch HDMI LCD (H) (with case) V2 ← this model | 13.3" | 1920×1080 | Capacitive, 10-point (USB) | IPS | HDMI / VGA | Yes | Premium Full HD touch displays |
| 15.6inch HDMI LCD (H) with Case | 15.6" | 1920×1080 | Capacitive, 10-point (USB) | IPS | HDMI / VGA | Yes | Large premium touch screens |
| 11.9inch HDMI LCD | 11.9" | 320×1480 | Capacitive, 5-point (USB) | IPS | HDMI | No | Portrait dashboards and side screens |
Technical specifications
| Screen Size | 13.3" |
|---|---|
| Resolution | 1920×1080 |
| Display Interface | HDMI / VGA |
| Display Panel | IPS |
| Viewing Angle | 178° |
| Touch Type | Capacitive |
| Touch Points | 10-point |
| Touch Interface | USB |
| Touch Panel | Toughened glass |
| Audio | Hi-Fi speaker + 3.5mm jack |
| Enclosure | Polycarbonate case |
| Best Fit | Premium dashboards, kiosks, media displays, client demos |
| System Support | Raspberry Pi OS / Ubuntu / Kali / Retropie; Jetson Nano; Windows 11/10/8.1/8/7; Xbox / PS4 / Switch display support |
Official Waveshare resources
Official product page
Official wiki / setup guide
Frequently Asked Questions
Does this work with Raspberry Pi?
Yes. Official Waveshare resources list Raspberry Pi support for this model.
How is touch connected?
This model uses Capacitive, 10-point (USB).
Can I use it with a PC?
Yes. Official Waveshare documentation lists PC support for this model. Touch behavior can vary by operating system, so check the official wiki for setup notes.
Does it include a case?
Yes. This model includes a case.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
