read tutorial →Ultra-Wide 11.9-inch Portrait HDMI Touch Display for Side Panels and Tall Dashboards

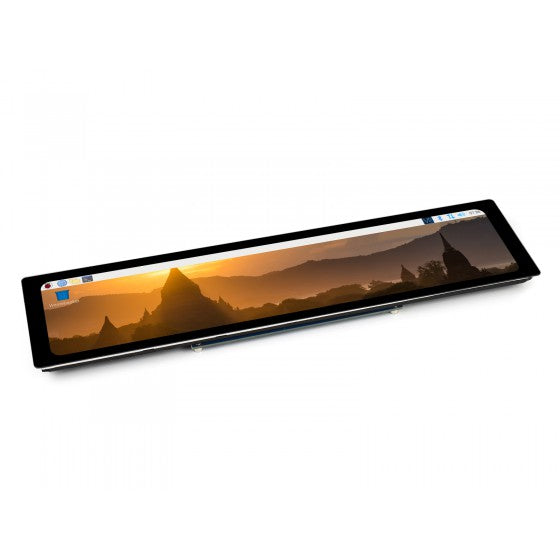

The 11.9inch Capacitive Touch Screen LCD is a tall-format display designed for projects that need something different from a standard widescreen panel. Its 320×1480 portrait layout works well for PC side panels, narrow status dashboards, room schedulers, smart control strips, and other vertical UI ideas.

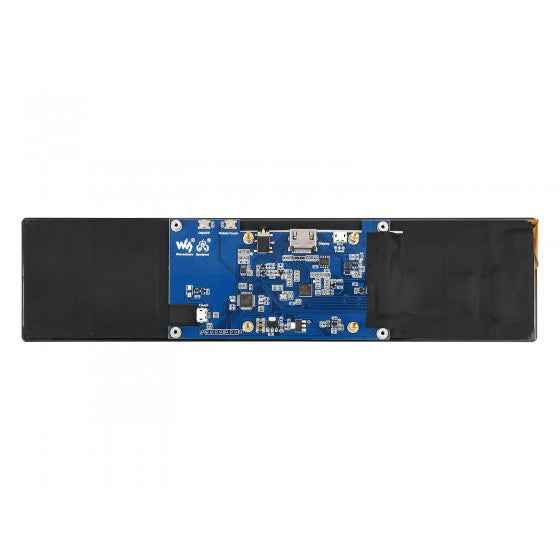

This model uses an IPS panel, 5-point capacitive touch, and a toughened glass cover. It connects over HDMI for video and USB for touch, and it can be used with Raspberry Pi, Jetson, and Windows PCs.
Important: Official Waveshare notes say the display defaults to portrait orientation at 320×1480. You can switch to landscape with software configuration if your layout needs it.
Why you'll love it
- Tall 320×1480 format: Ideal for portrait dashboards and side-screen layouts
- 5-point capacitive touch: Good for swipe and tap interactions
- IPS panel: Maintains clarity when mounted vertically
- Toughened glass front: Better durability for touch use
- 3.5mm audio output: Supports HDMI audio output

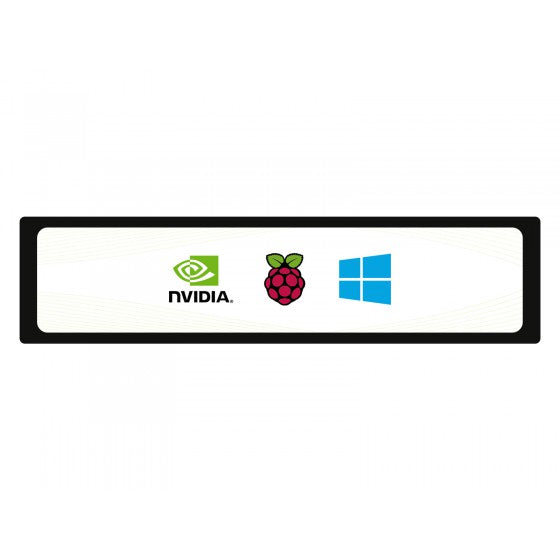

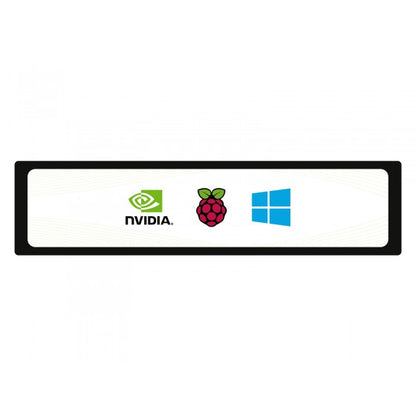

- Driver-free touch on common systems: Official docs cover Raspberry Pi, Jetson, and Windows use
Good fit for
This display works well for Portrait dashboards and side screens. It is a practical choice if you want an official Waveshare HDMI screen with clear setup docs and strong compatibility with Raspberry Pi workflows.
Waveshare display lineup comparison
| Model | Size | Resolution | Touch | Panel | Interface | Case | Best for |
|---|---|---|---|---|---|---|---|
| 3.5inch HDMI LCD | 3.5" | 480×320 | Resistive (SPI) | IPS | HDMI | No | Small dashboards and handheld use |
| 5inch HDMI LCD | 5" | 800×480 | Resistive (SPI) | TFT | HDMI | No | Budget Raspberry Pi touch builds |
| 7inch HDMI LCD | 7" | 1024×600 | Resistive (SPI) | IPS | HDMI | No | Mid-size dashboards and HMIs |
| 10.1inch HDMI LCD | 10.1" | 1024×600 | Resistive (SPI) | IPS | HDMI | No | Large HMIs and workbench displays |
| 7inch HDMI LCD (H) with Case | 7" | 1024×600 | Capacitive, 5-point (USB) | IPS | HDMI / VGA | Yes | Ready-to-deploy kiosk and desktop use |
| 10.1inch HDMI LCD (B) with Case | 10.1" | 1280×800 | Capacitive, 10-point (USB) | IPS | HDMI | Yes | Higher-res touch dashboards |
| 13.3inch HDMI LCD (H) (with case) V2 | 13.3" | 1920×1080 | Capacitive, 10-point (USB) | IPS | HDMI / VGA | Yes | Premium Full HD touch displays |
| 15.6inch HDMI LCD (H) with Case | 15.6" | 1920×1080 | Capacitive, 10-point (USB) | IPS | HDMI / VGA | Yes | Large premium touch screens |
| 11.9inch HDMI LCD ← this model | 11.9" | 320×1480 | Capacitive, 5-point (USB) | IPS | HDMI | No | Portrait dashboards and side screens |
Technical specifications
| Screen Size | 11.9" |
|---|---|
| Resolution | 320×1480 |
| Default Orientation | Portrait |
| Display Interface | HDMI |
| Display Panel | IPS |
| Viewing Angle | 170° |
| Touch Type | Capacitive |
| Touch Points | 5-point |
| Touch Interface | USB |
| Touch Panel | Toughened glass |
| Audio Output | 3.5mm jack |
| Best Fit | PC side panels, tall dashboards, portrait control screens |
| System Support | Raspberry Pi OS / Ubuntu / Kali / Retropie; Jetson Nano; Windows 11/10/8.1/8/7 |
Official Waveshare resources
Official product page
Official wiki / setup guide
Frequently Asked Questions
Does this work with Raspberry Pi?
Yes. Official Waveshare resources list Raspberry Pi support for this model.
How is touch connected?
This model uses Capacitive, 5-point (USB).
Can I use it with a PC?
Yes. Official Waveshare documentation lists PC support for this model. Touch behavior can vary by operating system, so check the official wiki for setup notes.
Does it include a case?
No. This model is sold without a case.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
