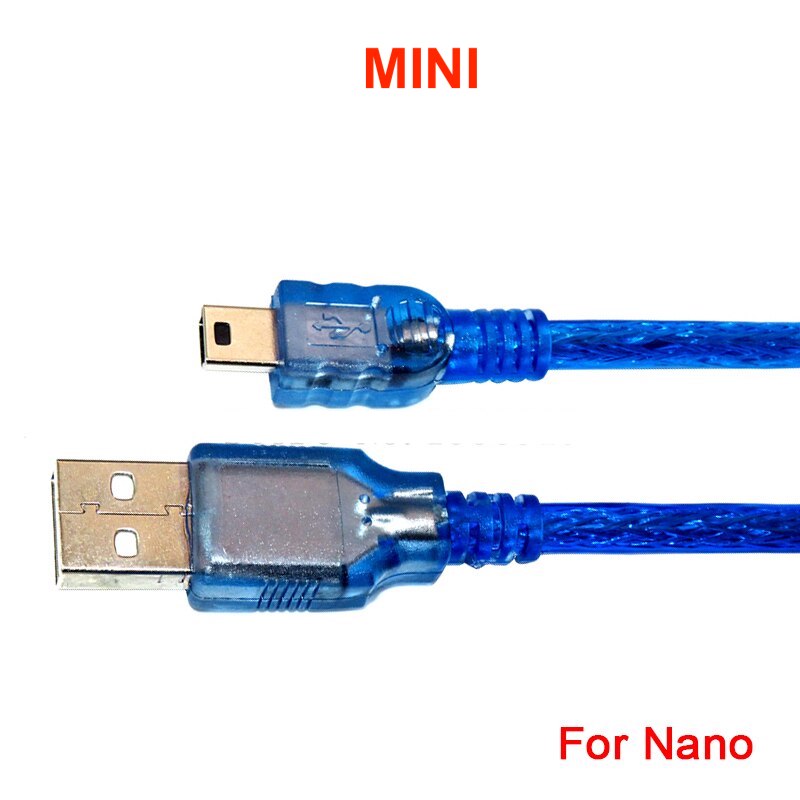

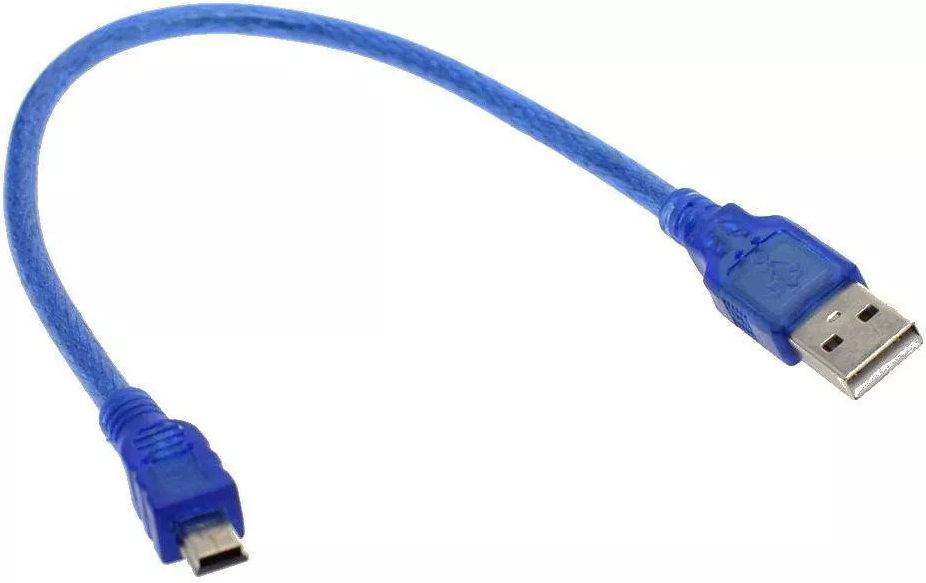

USB Cable Mini B Male to Type A Male for Arduino Nano 30CM
USB Cable Mini B Male to Type A Male for Arduino Nano 30CM - Check out this handy USB cable, which will make it easy for you to enclose a device that has a Mini-B USB-type port. We think this would be most handy when putting a Teensy, FTDI friend, USB LiPo charger, BeagleBone, or any other Mini-B device into a box!
Wiring system to support Arduino
Typically, all that is needed to power an Arduino and attach it to a computer for coding is a USB cable. The most popular Arduino model (Uno) can be connected with a USB Type B cable, however other Arduino boards could need Type B-mini or Type B-micro connectors. When not connected to a USB power source, the Arduino can alternatively be powered via a power adapter connection.
The length of the cable used to connect the Arduino should generally not exceed 5 meters, while it is advised to keep the cable under 3 meters. A conventional AC power line and the appropriate power adapter can be used to power the Arduino over a greater distance.
However, when using this reasoning, make sure the power adapter has the appropriate voltage (usually 7-12 volts). Be wary of non-standard USB plugs as well; although I've never seen one break an Arduino, it might happen if the USB power source isn't made well.
- providing power the Arduino (USB cables and printer cables)
- Useful wire types for Arduino (particularly breadboards)
- The USB cable is the simplest cable for Arduino programming (it is also possible to program an Arduino wirelessly).
Cabling for Arduino Power
- Arduino power adapter cables
- The following specifications should be met by an Arduino power adapter:
- Positive tip, 2.1mm inner diameter, 5.5mm outside diameter
- Center optimistic
- 12v to 7v dc output
This means that the plug on the power adapter cable should have a positive tip, a 2.1mm inner diameter, and a 5.5mm outer diameter.
Any commercially produced power adapter will include a cable that is the proper length, however, the cable for an Arduino power adapter should be no longer than 5m. Consider connecting the power adapter to an extension cord or utilising a portable USB power supply to power the Arduino over a longer distance.
A power adapter is not included in the basic Arduino starter kit, although some of the more sophisticated academic or professional starter kits may. The average price of a power adaptor is less than $10.
