CN3065 Mini USB Solar Lithium Charger Board Module

CN3065 Mini USB Solar Lithium Charger Board Module

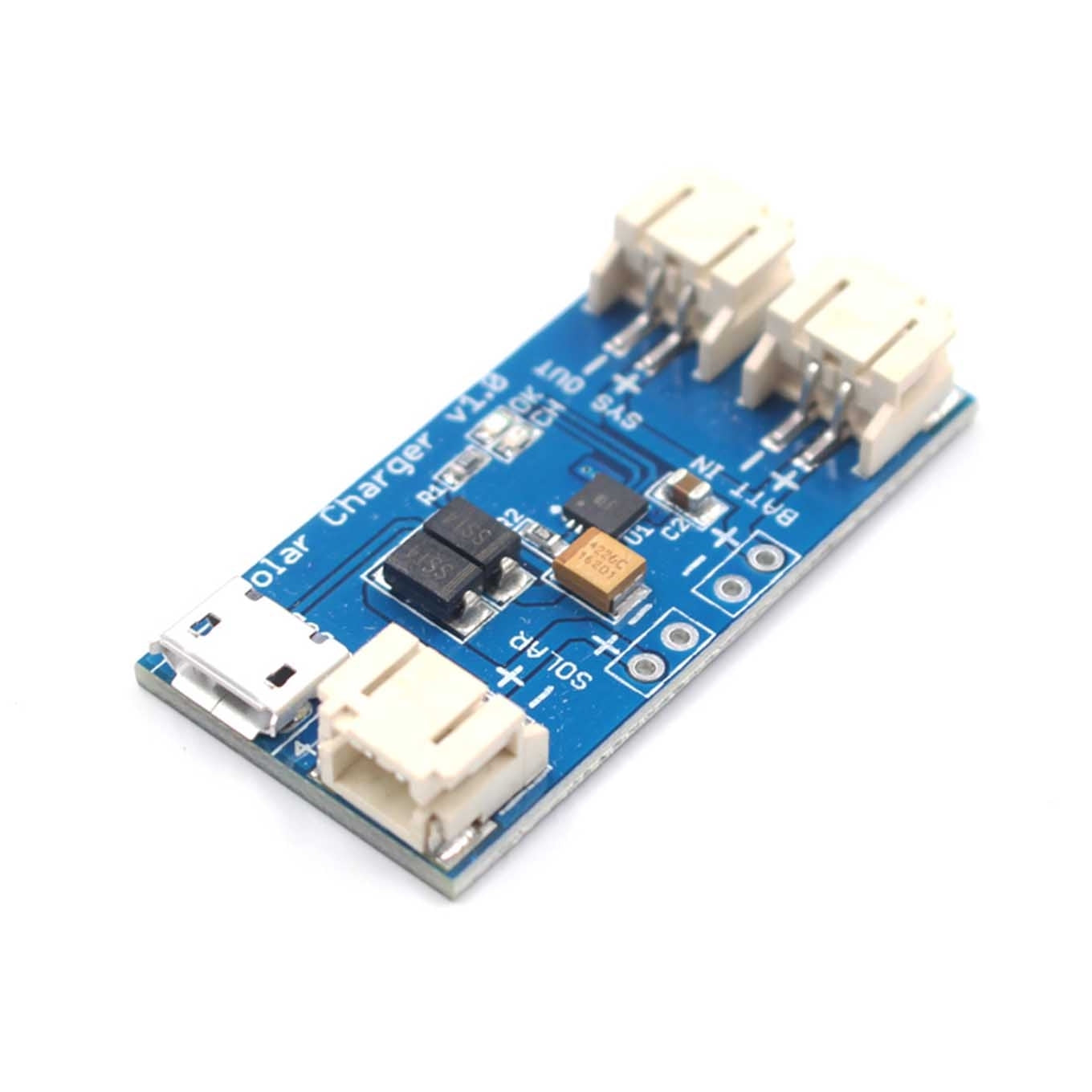

This solar charger board for Li-Ion and Li-Polymer batteries is based on the CN3065 chip. There's an on chip 8-bit ADC that adjusts the charging current depending on the power supply input. This makes it ideal for solar charging. It also supports USB power specifications. When sunlight is not enough for charging, it enters a low power sleep mode dropping the current to less than 3uA. Partner it with our solar panels and it will be surely handy for your camping and outdoor activities!

Features

  • Solar panel input: 4.4 – 6V
  • Max charge current: 500mA
  • Interface: 2-pin PH 2.0 connectors
  • Short circuit protection
  • Continuous Charge Current Up to 500mA
  • Battery status indication ( Red : Charging , Green: Charged )
  • Support USB Charge (Micro-USB Connector)
  • Size: 2cm x 4cm

Write a review

Please login or register to review

CN3065 Mini USB Solar Lithium Charger Board Module

  • Brand: OEM
  • Product Code: 2692
  • Availability: 3
  • ₱149
