Battery Polymer Lithium Ion 40mAh

Battery Polymer Lithium Ion 40mAh

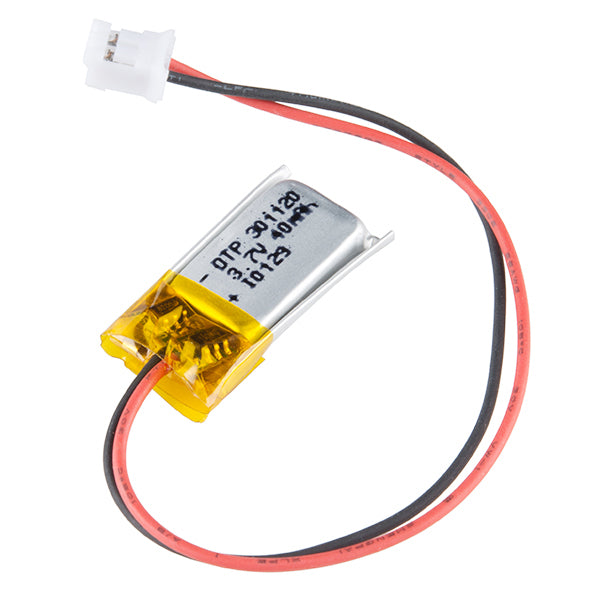

This is an extremely tiny and light weight battery based on the new Polymer Lithium Ion chemistry. This is the highest energy density currently in production. Each cells outputs a nominal 3.7V at 40mAh. This may sound like not so much power, but the cell is really tiny… like, about half an inch square!

Comes terminated with a standard 2-pin JST-PH connector - 2mm spacing between pins. These batteries require special charging. Do not attempt to charge these with anything but a specialized Lithium Polymer charger. Battery includes built-in protection against over voltage, over current, and minimum voltage. Please use caution when using this battery in wearable projects. When using conductive thread, a short in the thread can create sparks and heat. We recommend using coin cell batteries for beginners.

QUICK SPECS:

  • Rated Capacity: 40mAh
  • Nominal Voltage 3.70V
QUICK LINKS:

Write a review

Please login or register to review

Battery Polymer Lithium Ion 40mAh

  • Brand: Sparkfun
  • Product Code: PRT-13852
  • Availability: 23
  • ₱385
