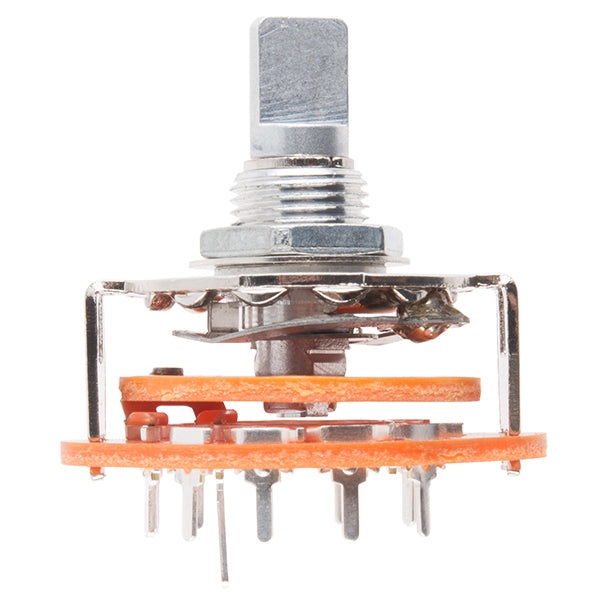

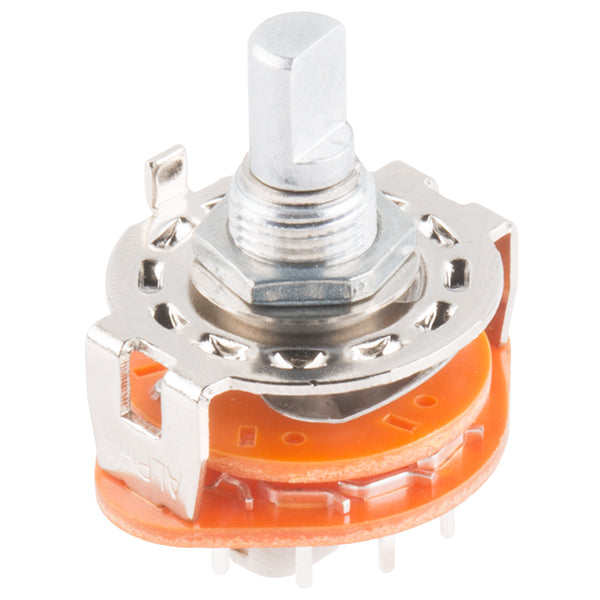

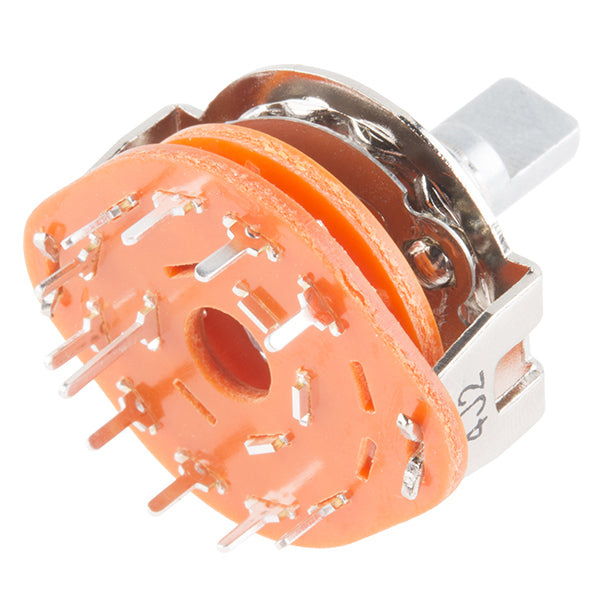

This is a single pole, 10 position rotary switch able to select up to 10 different states in a durable package. Unlike our other rotary switch, this model is much more robust and capable of handling larger currents and voltages.
With a max voltage rating of 125VAC at 0.3A and a dielectric strength of 250VAC for 1 minute this is a serious little rotary switch capable of working with some of your bigger projects.
QUICK SPECS:
- Rating: 0.3A/125VAC
- Contact Resistance: 50mΩ max
- Insulation Resistance: 100MΩ @ 500VDC min
- Dielectric Strength: 250VAC for 1 minute
- Rotation torque: 1.0+0.5KG/cm
- Shaft: 3/8"
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
