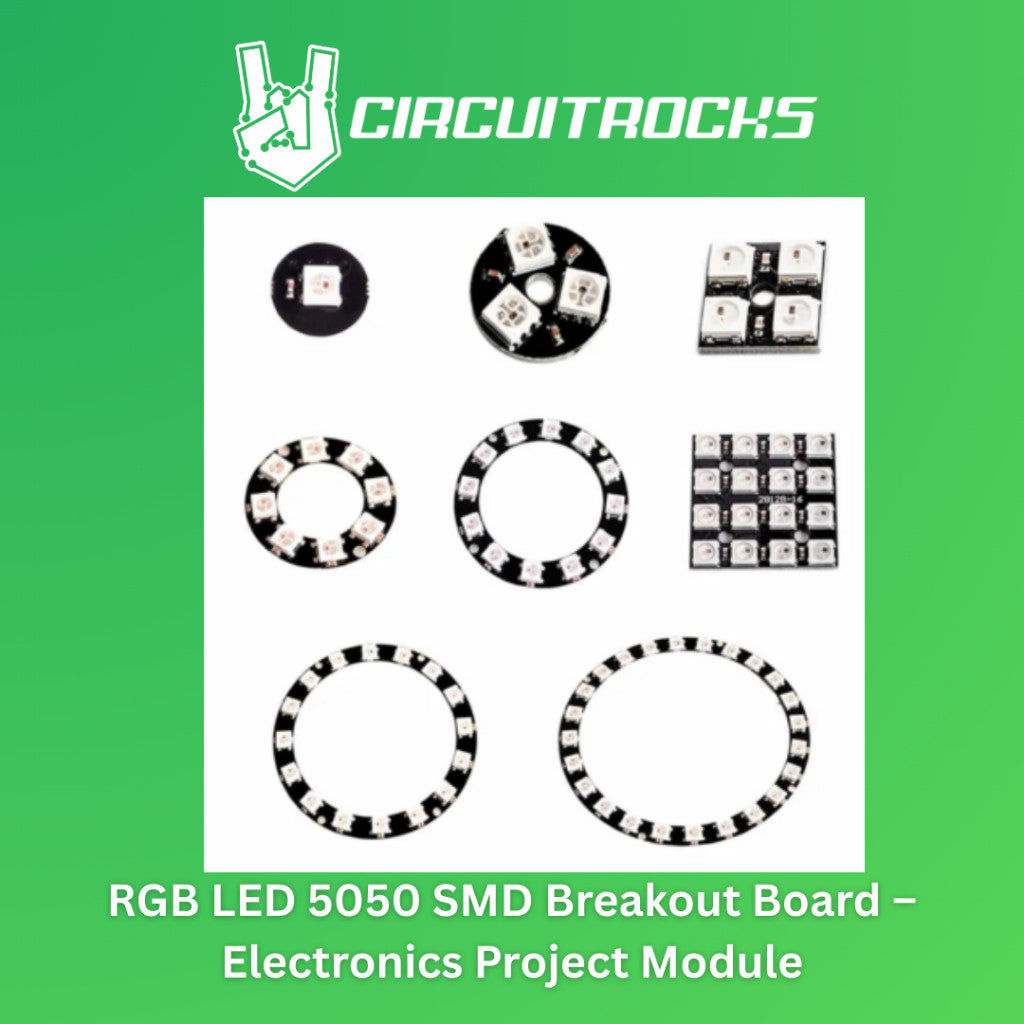

RGB LED Breakout 5050 SMD WS2812

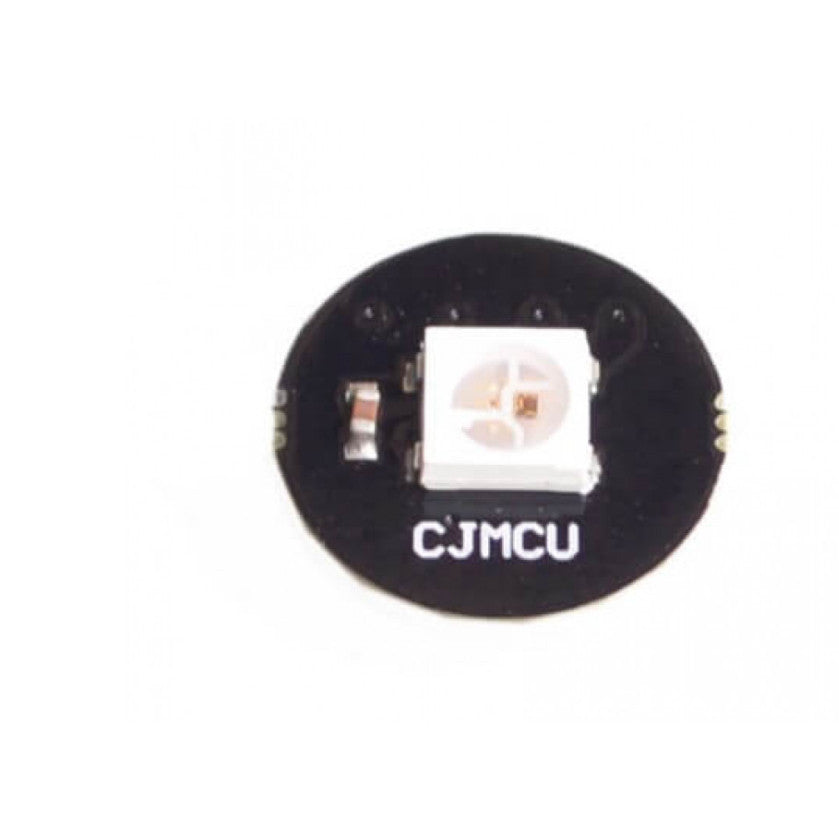

RGB LED Breakout 5050 SMD WS2812 5PCS - This is a breakout board for the WS2812B RGB LED. The WS2812B is actually an RGB LED with a WS2811 built right into the LED! Several of these breakouts can even be chained together to form a display or an addressable string.
Frequently asked questions about RGB LED Breakout 5050 SMD WS2812 5PCS
Q1: What is an RGB LED Breakout 5050 SMD WS2812?
An RGB LED Breakout 5050 SMD WS2812 is a type of LED module that has a red, green, and blue LED integrated into a single package. It is also equipped with a WS2812 driver chip that allows for individual control of each LED's color and brightness. There is one RGB LED in each module.The voltage range for the RGB LED Breakout 5050 SMD WS2812 is between 3.3V to 5V(60mA per LED).
Q2: What is the viewing angle for the RGB LED Breakout 5050 SMD WS2812?
The viewing angle for the RGB LED Breakout 5050 SMD WS2812 is 120 degrees.
Q3: Can I control the RGB LED Breakout 5050 SMD WS2812 individually?
Yes, you can control each RGB LED Breakout 5050 SMD WS2812 individually using a microcontroller with the appropriate software.
Q4: How do I connect the RGB LED Breakout 5050 SMD WS2812 to a microcontroller?
You can connect the RGB LED Breakout 5050 SMD WS2812 to a microcontroller using three wires: power, ground, and data. The data line uses a single-wire serial communication protocol.
Q5: What is the maximum data transfer rate for the RGB LED Breakout 5050 SMD WS2812?
The maximum data transfer rate for the RGB LED Breakout 5050 SMD WS2812 is 800Kbps.
Q6: Can I daisy chain multiple RGB LED Breakout 5050 SMD WS2812 modules together?
Yes, you can daisy chain multiple RGB LED Breakout 5050 SMD WS2812 modules together, allowing you to control multiple LEDs with a single microcontroller.
Q7: Are there any precautions I should take when using the RGB LED Breakout 5050 SMD WS2812?
Yes, you should be careful not to exceed the maximum current rating for each LED and ensure that the power supply voltage is within the specified range. Additionally, you should ensure that the data line is properly connected and not exposed to ESD or other electrical interference.
This is a breakout board for the WS2812B RGB LED. The WS2812B is actually an RGB LED with a WS2811 built right into the LED! Several of these breakouts can even be chained together to form a display or an addressable string.
