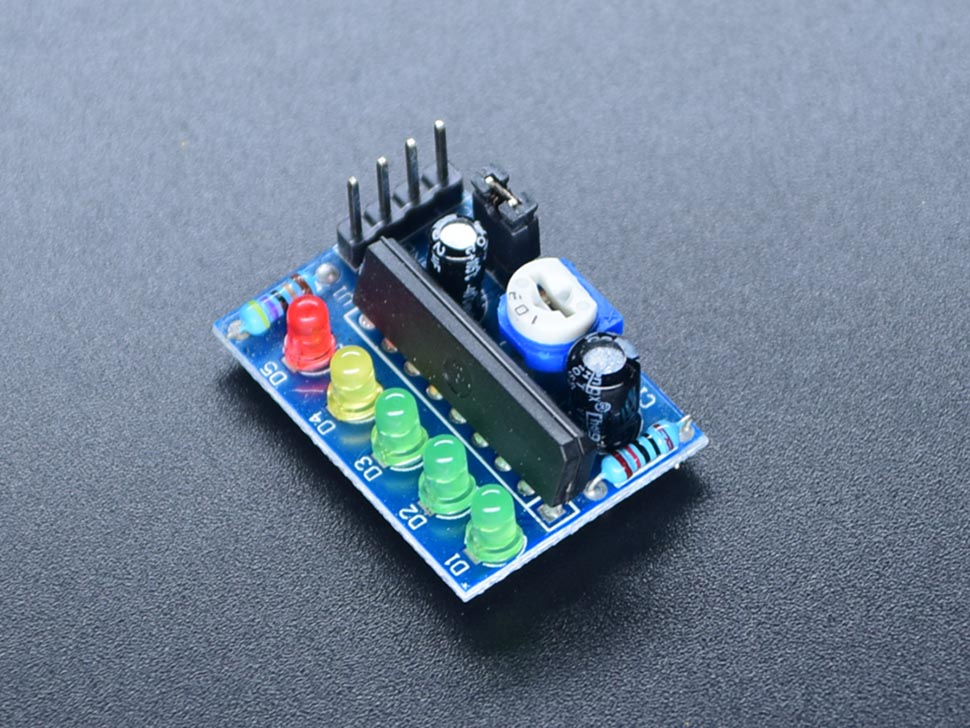

Measure Current, Voltage, or Magnetic Fields with Ease
The Voltage Level Indicator KA2284 is an electric current electric potential magnetic sensor module designed for power monitoring, motor feedback, magnetic detection, and control systems. It is a practical fit for makers, students, and engineers who want reliable sensor data in embedded builds.
Key details include Working voltage: 3.5V-12V.
Why you’ll love it
- Power range: 3.5V-12V
- Compact size: 29 (mm) x21 (mm);
- Maker-friendly build: Easy to use in prototypes, classroom projects, and custom electronics
- Common controller support: Works well with Arduino, ESP32, Raspberry Pi, and similar boards
- Project-ready sensing: power monitoring, motor feedback, magnetic detection, and control systems
Compare with similar products
| Product | Sensor style | Standout |
|---|---|---|
| Voltage Level Indicator KA2284 | electric current electric potential magnetic sensor module | Current item |
| DC Current Sensor INA219 High Side Breakout 26V 3.2A Max | current or power sensor with I2C | I2C interface, motion sensing |
| Current 20A Analog Sensor Gravity | electric current electric potential magnetic sensor module with analog output | analog output, hall-effect detection |
| Current Sensor AC/DC 50A | current or power sensor with analog output | analog output, hall-effect detection |
What you can build
This sensor is a good fit for current meters, motor drivers, magnetic door sensing, power dashboards, and fault alerts.
Starter bundles
Pair it with an Arduino-compatible board, ESP32, or Raspberry Pi, plus a breadboard or jumper wires for quick setup and testing.
Recommended add-ons
Useful add-ons include breadboards, jumper wires, displays, enclosures, and logging modules, depending on how you plan to power, mount, and log the sensor.
Technical specifications
| Product | Voltage Level Indicator KA2284 |
|---|---|
| Working voltage | 3.5V-12V |
| PCB board Dimension | 29 (mm) x21 (mm); |
| Category | electric current electric potential magnetic sensors |
Wiring & usage notes
Check the pin labels on the Voltage Level Indicator KA2284 and match them to your controller voltage, ground, and signal pins. Keep wiring short and verify the logic level before powering the module.
What’s in the box
1 × Voltage Level Indicator KA2284
Frequently Asked Questions
What does the Voltage Level Indicator KA2284 measure?
It is designed to measure voltage level.
Can I use it with Arduino, ESP32, or Raspberry Pi?
Yes. It is well suited for common maker and embedded platforms, as long as you power it at the correct voltage and match the signal level to your controller.
What affects accuracy?
Power quality, wiring, mounting, target material, and the real environment can all affect the reading. It is best to test and calibrate in the final setup.
Is it good for prototyping?
Yes. It is a practical choice for learning, proof-of-concept builds, and small automation projects.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
