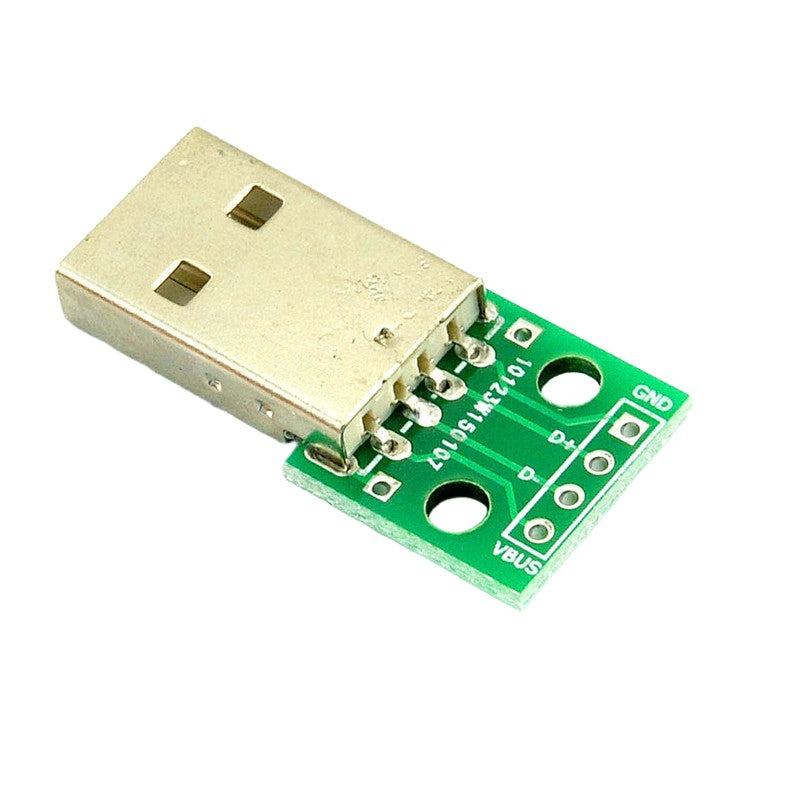

USB Male Head DIP 2.54MM Breakout

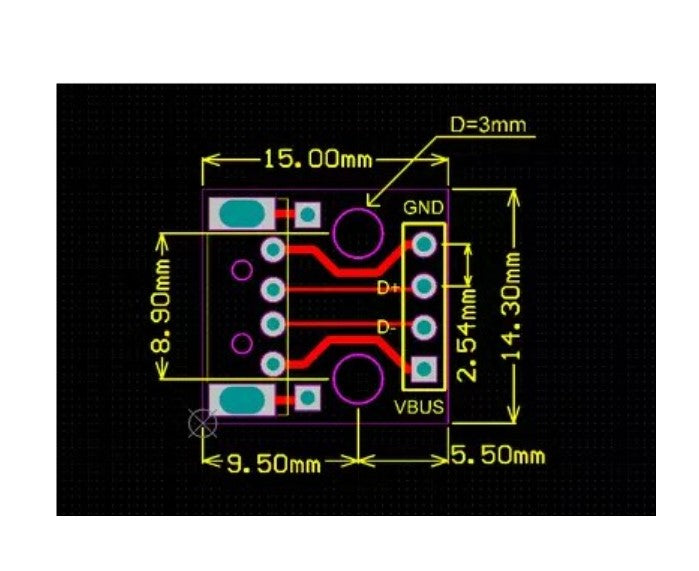

A common de facto connector for power or data interface in many consumer electronics is the USB Male head DIP 2.54mm Breakout Board with Direct 4P Adapter Board. Because of its widespread use, compatible cables are now readily available. This breakout board is ideal if you wish to incorporate a typical type A USB male plug into your project. Simply put, this board separates the USB connector's four pins into solderable holes with a 2.54mm pitch. After that, you may either solder wires straight to the holes or a 4-pin header to connect to a breadboard.

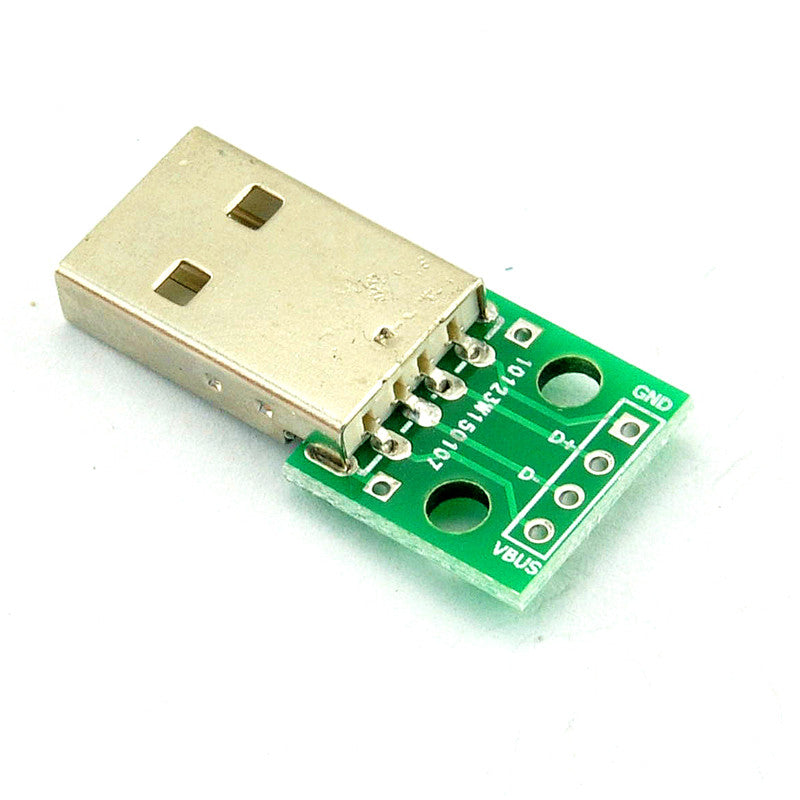

This breakout board features a USB male head connector with all four pins broken off, making it straightforward but efficient. Excellent for supplying USB 5V power to a project or pairing with a microcontroller that supports USB Female ends.

Specification

• Connector – USB Type A male to DIP
• Number of Pins – 4
• Pitch – 2.54mm

Features

• It converts a USB Type A Male connector to a 2.54mm pitch DIP header.
• Provide access to 4 USB Pins
• Easy handling and compact in size
• Plug and play function
• Compatible with USB-based devices
• High-quality PCB for stable connections

Applications

• Connecting microcontrollers
• USB data communications
• USB to UART
• DIY electronics
• Breadboard power supply setups

FAQs

Q1. For a power supply of 5V, can this be useful>

Ans. The VCC pin provides 5V of power directly from the USB source.

Q2. For USB 2.0 is this board support USB 2.0?

Ans. For signal transmission, this board supports standard USB 2.0 pinouts.

Q3. Is there any complication while handling, or is it plug and play?

Ans. Just plug and play, easy and simple.

Q4. Is this board suitable for the transmission of data?

Ans. It supports up to 480 Mbps of speed, which is based on wiring and signal integrity.

Q5. For connecting lights, is these supports?

Ans, as long as the current drawn is within USB limits.
