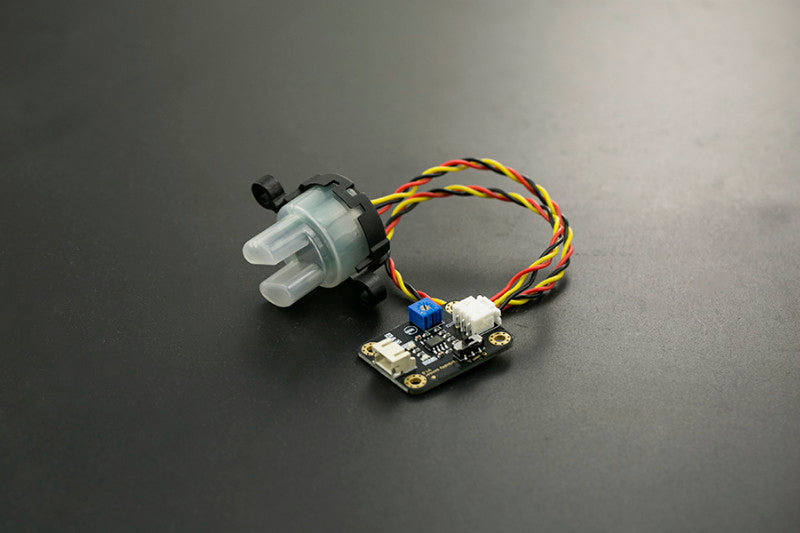

Turbidity Analog Sensor | 5V DC

The turbidity sensor detects water quality by measuring level of turbidity. It is able to detect suspended particles in water by measuring the light transmittance and scattering rate which changes with the amount of total suspended solids (TSS) in water. As the TTS increases, the liquid turbidity level increases.

SPECIFICATION

Operating Voltage: 5V DC
Operating Current: 40mA (MAX)Response Time:
Insulation Resistance: 100M (Min)
Output Method: Analog
Analog output: 0-4.5V
Digital Output: High/Low-level signal (you can adjust the threshold value by adjusting the potentiometer)
Operating Temperature: -30 ℃~80 ℃
Storage Temperature: -10℃~80℃
Weight: 30g
Adapter Dimensions: 38mm*28mm*10mm/1.5inches *1.1inches*0.4inches
