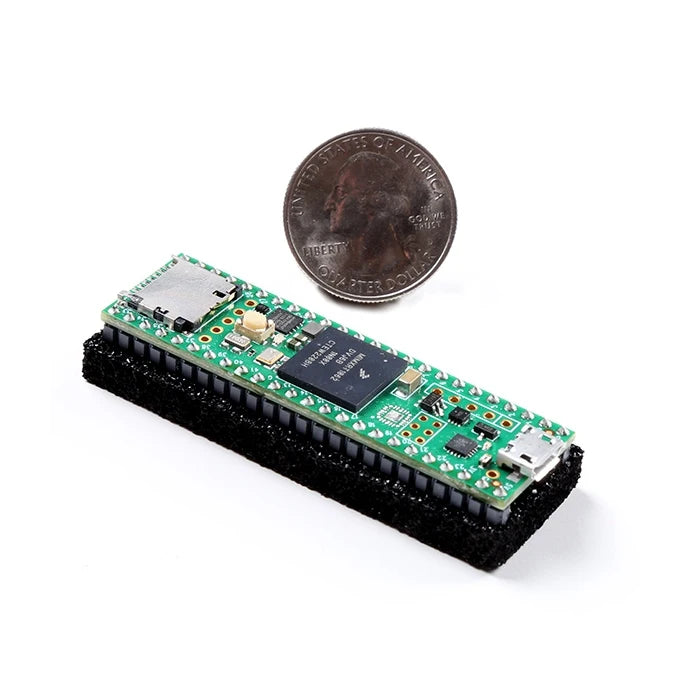

The Teensy 4.1 Without Ethernet Headers is a fast and compact microcontroller board built for projects that need more power than a basic Arduino-style board. It uses a 600MHz ARM Cortex-M7 processor, with 8MB Flash and 1024K RAM, giving it strong performance for advanced embedded projects.

This version comes with pre-soldered male headers, so it is ready for breadboard testing without extra soldering. It also removes the Ethernet PHY controller, making it a lower-cost choice for projects that do not need wired network support.

The board includes a built-in microSD card socket, USB host port, and many I/O options. It has 55 total I/O pins, 42 breadboard-friendly I/O pins, 35 PWM pins, 18 analog inputs, 8 serial ports, 3 SPI ports, 3 CAN bus ports, and native SDIO support.

It is a great fit for robotics, audio projects, data logging, motor control, sensor systems, LED projects, and other builds that need fast processing in a small board.

Key Features:

• 600MHz ARM Cortex-M7 processor
• 8MB Flash memory
• 1024K RAM
• Pre-soldered male headers
• Built-in microSD card socket
• USB host port
• 55 total I/O pins
• 35 PWM pins
• 18 analog inputs
• 8 serial ports
• 3 SPI ports
• 3 CAN bus ports
• RTC support
• Power on/off management
• No Ethernet PHY controller

What You Can Build:

• High-speed robotics controller
• Data logger with microSD storage
• Audio processing project
• LED matrix controller
• Motor control system
• Sensor hub
• USB host project
• CAN bus test setup
• Advanced Arduino-compatible prototype
