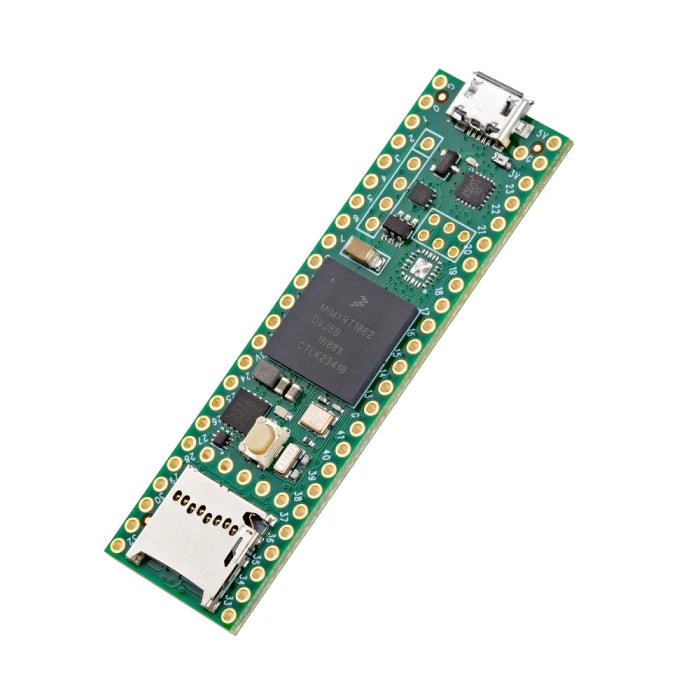

Teensy 4.1 Without Ethernet Development Board
The Teensy 4.1 Without Ethernet is a high-speed microcontroller board for advanced electronics, robotics, audio, control, data logging, and embedded projects. It is powered by a 600MHz ARM Cortex-M7 processor and gives you much more speed, memory, and I/O than many standard hobby boards.
This version keeps the core power of the Teensy 4.1 but removes the Ethernet PHY. It is a good choice for projects that do not need wired network support but still need fast processing, a microSD socket, USB host support, many I/O pins, and strong real-time performance.
Why Choose Teensy 4.1 Without Ethernet?
- Fast 600MHz ARM Cortex-M7 processor for demanding projects.
- 8MB flash and 1024K RAM for larger programs and data buffers.
- Built-in microSD socket for fast data logging and storage.
- USB host port support for selected USB devices.
- 55 total I/O pins, including 35 PWM-capable pins.
- Good for audio, robotics, lighting, controls, and sensor projects.
- Lower-cost option when Ethernet is not needed.
What You Can Build
- Fast sensor logging system
- Robotics controller
- Audio processing project
- USB host device project
- LED and pixel control system
- CAN bus test project
- Motor and motion control project
- High-speed serial communication project
- MicroSD-based data recorder
- Advanced Arduino IDE-compatible embedded project
What’s Included?
- Teensy 4.1 Without Ethernet development board - 1 pc
Note: Headers are not included. USB cable, memory card, sensors, and other accessories are sold separately unless stated in the package.
Technical Specifications
| Product Type | High-performance microcontroller development board |
|---|---|
| Model | Teensy 4.1 Without Ethernet |
| SKU | DEV-20359 |
| Processor | ARM Cortex-M7 at 600MHz |
| Main Chip | NXP MIMXRT1062DVJ6B |
| Flash Memory | 8MB flash |
| RAM | 1024K RAM, with 512K tightly coupled memory |
| Total I/O Pins | 55 total I/O pins |
| Breadboard-Friendly I/O | 42 pins |
| PWM Pins | 35 PWM pins |
| Analog Inputs | 18 analog input pins |
| Communication | 8 serial ports, 3 SPI ports, 3 I2C ports, and 3 CAN bus ports |
| Audio Support | 2 I2S digital audio ports and 1 S/PDIF digital audio port |
| Storage | Built-in microSD card socket |
| USB | USB device and USB host support |
| Ethernet | Not included. This version does not include Ethernet PHY. |
| Software Support | Arduino IDE with Teensy boards add-on |
| Logic Level | 3.3V logic. Pins are not 5V tolerant. |
| Best For | Robotics, audio, data logging, controls, lighting, sensors, and high-speed embedded projects |
Power and Wiring Notes
Teensy 4.1 uses 3.3V logic. Do not connect 5V signals directly to its pins. Using 5V input signals may damage the board.
The board can be powered through USB for basic testing. When using external power through VIN, do not apply VIN power while USB is also connected unless the VUSB-VIN trace has been properly separated.
Important Notes
- This version does not include Ethernet support.
- Headers are not included.
- Use 3.3V-safe sensors and modules.
- Use a compatible USB cable for programming.
- Install Teensy support in Arduino IDE before uploading code.
Recommended Add-ons
- Teensy boards and accessories
- Pins and headers
- Sensors and modules
- MicroSD cards and storage
- USB cables
FAQ
What is Teensy 4.1 Without Ethernet used for?
It is used for fast embedded projects such as robotics, audio, lighting, data logging, sensor systems, and control projects.
Does this version have Ethernet?
No. This version does not include the Ethernet PHY. Choose a Teensy 4.1 Ethernet version if wired networking is needed.
Are headers included?
No. Headers are not included with this version.
Can I program this with Arduino IDE?
Yes. It can be programmed using Arduino IDE with the Teensy boards add-on.
Are the pins 5V tolerant?
No. The pins use 3.3V logic and are not 5V tolerant.
