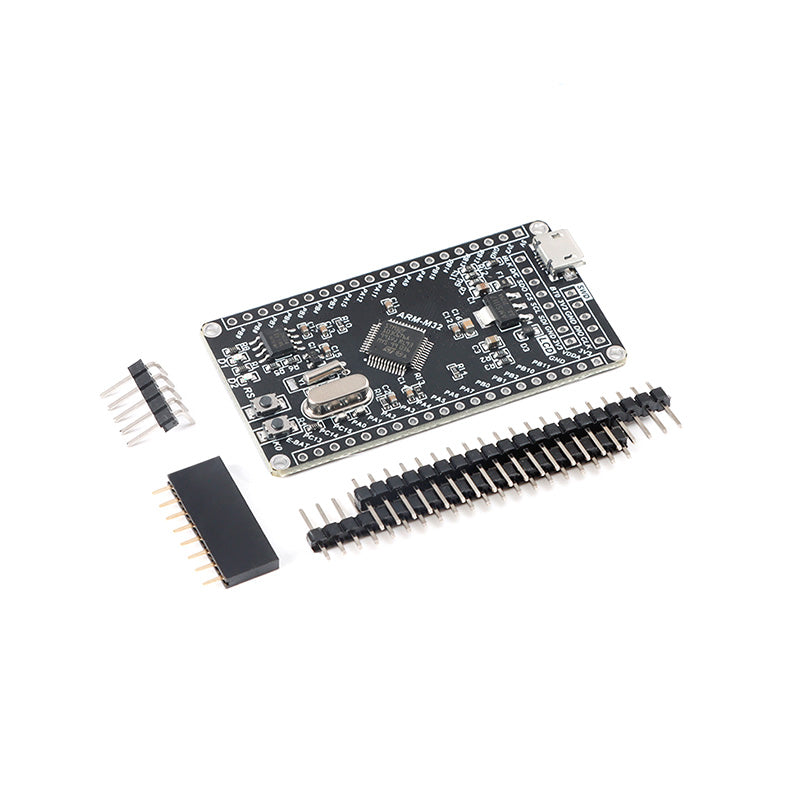

STM32F103C6T6 Development Board

The STM32F103C6T6 Development Board is a compact and powerful minimum system board built around the STMicroelectronics STM32F103C6T6 32-bit microcontroller. Featuring an Arm® Cortex®-M3 core running at up to 72 MHz, this board provides excellent performance, low power consumption, and a wide range of peripherals, making it ideal for embedded systems development, robotics, industrial control, IoT, and educational projects. The STM32F103C6T6 includes up to 32 KB Flash memory, SRAM, multiple communication interfaces, USB Full-Speed support, CAN, and dual 12-bit ADCs.

Designed as a minimum system board, it exposes the microcontroller's GPIO pins for easy prototyping and peripheral expansion. The onboard USB interface simplifies programming and power supply, while the SWD debugging interface supports firmware development and debugging using compatible ST-Link programmers.

Features

• Genuine STM32F103C6T6 32-bit Arm® Cortex®-M3 microcontroller

• CPU frequency up to 72 MHz

• 32 KB Flash memory

• 10 KB SRAM

• Compact minimum system development board

• USB interface for power and programming

• SWD programming and debugging support

• Onboard reset and boot mode buttons

• Crystal oscillators for stable system operation

• Low-power operation with Sleep, Stop, and Standby modes

• Breadboard-friendly pin layout

• Compatible with STM32CubeIDE, Keil MDK, IAR Embedded Workbench, PlatformIO, and the Arduino IDE (with STM32 board support)

Specifications

• Microcontroller: STM32F103C6T6

• CPU Core: Arm® Cortex®-M3 (32-bit)

• Clock Speed: Up to 72 MHz

• Flash Memory: 32 KB

• SRAM: 10 KB

• Operating Voltage: 3.3 V

• Input Voltage: 3–5 V (depending on board design)

• GPIO Pins: Up to 37

• ADC: Dual 12-bit ADC

• Communication Interfaces:

  • USB 2.0 Full-Speed

  • USART

  • SPI

  • I²C

  • CAN Bus

• Debug Interface: SWD

• Operating Temperature: -40°C to +85°C

Applications

• Embedded systems development

• Robotics and automation

• Industrial control

• IoT devices

• Sensor interfacing

• Motor control

• USB communication projects

• Data acquisition

• Educational and STEM learning

• Rapid prototyping

Package Includes

• 1 × STM32F103C6T6 Development Board

Note: This board is intended for developers and students working with STM32 microcontrollers. Programming can be performed using an ST-Link/V2 debugger via the SWD interface or through the onboard USB bootloader (where supported by the board design). Please verify your board version and development environment before use.
