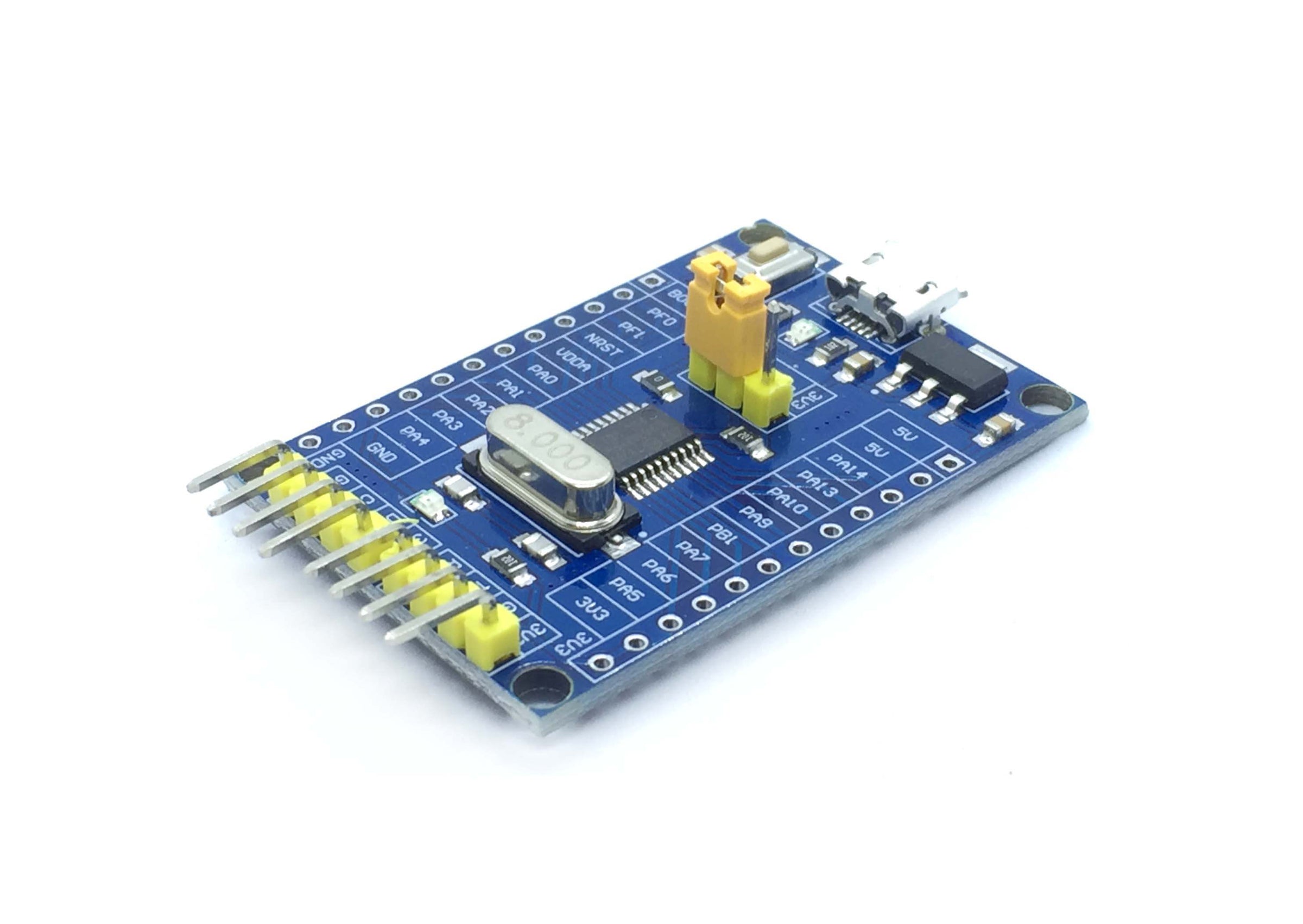

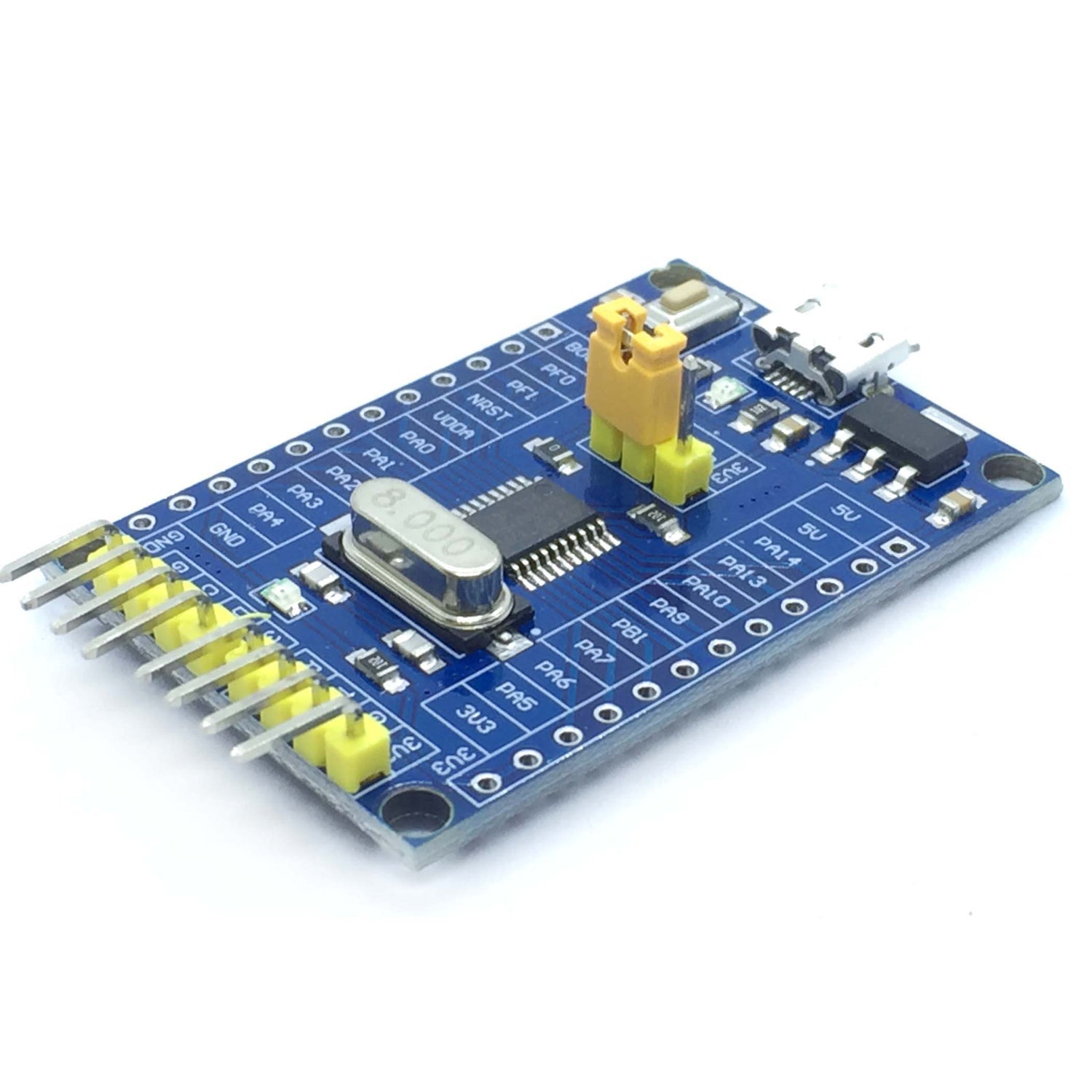

If you need a more powerful board than a Arduino Uno, then this STM32F030F4P6 is the go to board. This board offers great performance at less power consumption. When in running mode, maximum power consumption is 22 mA, and 175 uA. This board features 5.5 V to 3.3 V regulator, RESET button, onboard LED for power indication, jumper BOOT option, output pins and mounted pinhead specifically for ISP connection or SWD. This board also integrates micro USB power supply interface and ISP/SWD programming/debugging interface. These features make it ideal for a wide range of applications which need a relatively high processing power and more communication capabilities.
QUICK SPECS:
- Low power consumption (depending on the application)
- Communication: one SPI, one USART, and one I2C
- 11-channel, 12-bit ADC
- 15 GPIO pins
- Operating Voltage: 2.4 V to 3.6 V
- Operating Frequency: 48 MHz
- Timers: 1 advanced 4 general purpose
- Flash memory: 16 kb
- SRAM: 4 KB
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
