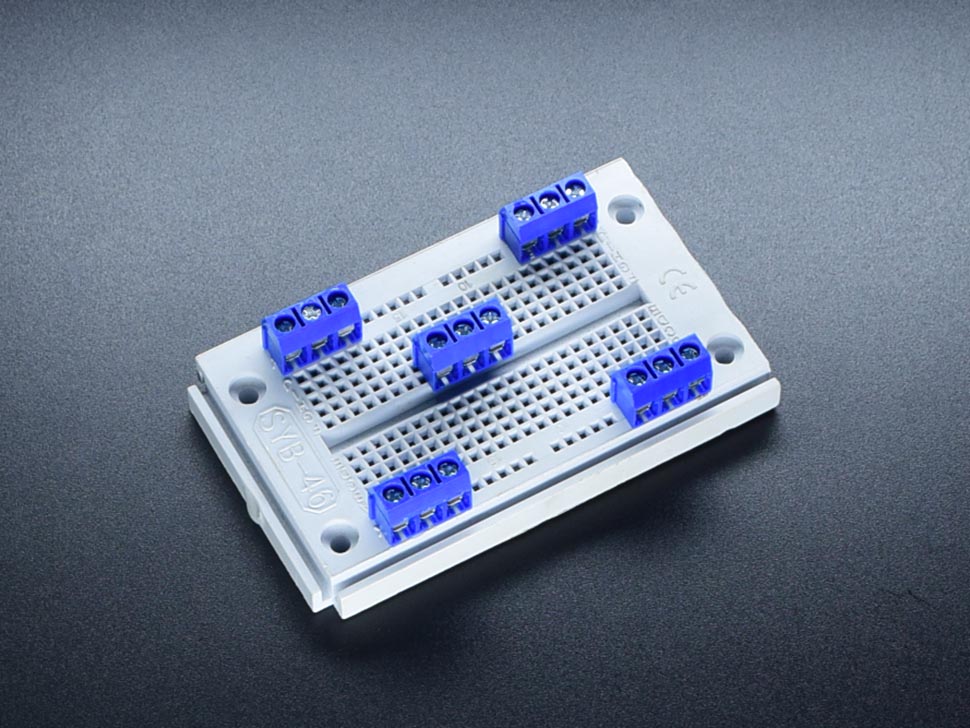

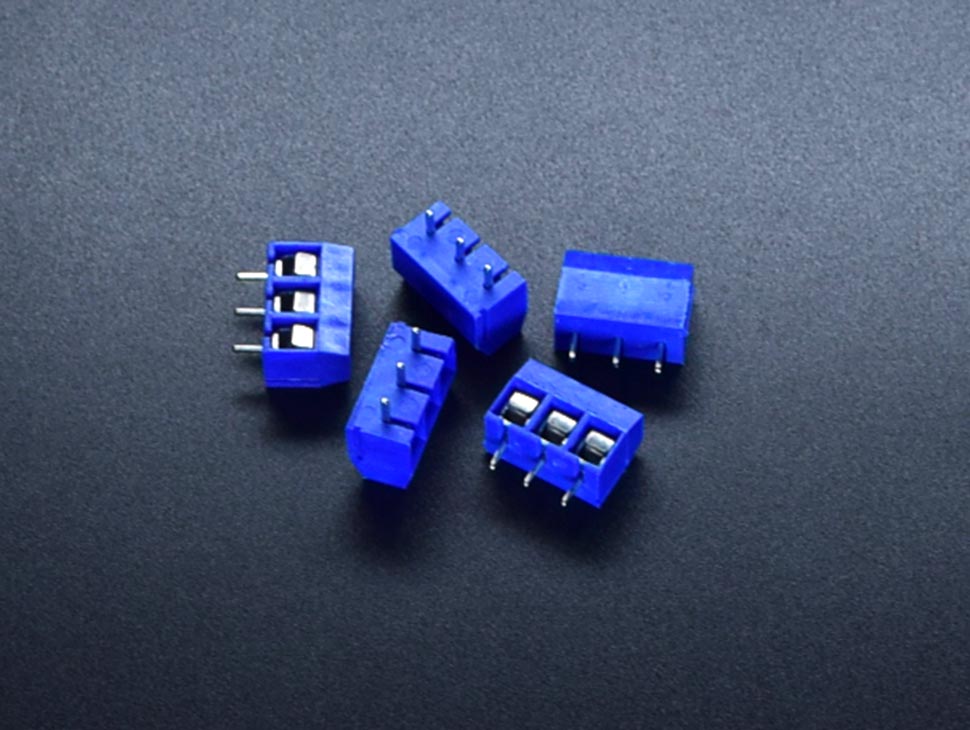

Screw Terminals 3Pin 5mm Pitch 5PCS

It is best suited for the PCD boards and can be fitted easily in them. It is made according to the measurement of the PCB boards and can be fitted and maintained effectively. A fast and secure method of creating electrical connections in a combination of electronic techniques and devices is provided by these solderable connectors.

These terminal blocks are made to easily accommodate wires with a pin spacing of 5mm. There is less chance of unintentional shorts or bad connections due to the wide spacing, which makes installation and connecting simple. These connectors will speed up and improve the efficiency of your PCB assembly process, regardless of your level of experience with electronics.

Screw Terminals 3Pin 5mm Pitch is a device or a product that is used in the connections between the wires in a electric circuit in a electrical application or any other project. This screw terminal can be used effectively in the PCB boards, and many other circuits.

What are the main features of Screw Terminals 3Pin 5mm Pitch?

It has 3 pins that help connect 3 wires efficiently, in a circuit, and provides the best connection that is strong and effective. It has a 5mm pitch, which means the space between the pins is 5mm and makes the wires rest easily. It is also best for any connection required. It is built with full durability and offers the best results and can handle strict connections. You can also install this screw terminal easily in an electrical connection. This can be easily fitted into a circuit without much effort and work.

Why it is beneficial to use Screw Terminals 3Pin 5mm Pitch?

When you use screw terminals in an electrical circuit, you can reuse it again. This is very effective and is secure, and does not damage the circuit. It is very easily maintained in a system and can be replaced easily if not working properly. It is more efficient and works effectively, furthermore, it can be combined with other products and wires easily and is highly compatible.

Where we can use Screw Terminals 3Pin 5mm?

Screw Terminals 3Pin 5mm Pitch are a dependable option for many applications due to their excellent structure, broad pin spacing, and ease of installation, whether you need to connect wires for a commercial product, a prototype, or a hobby project.

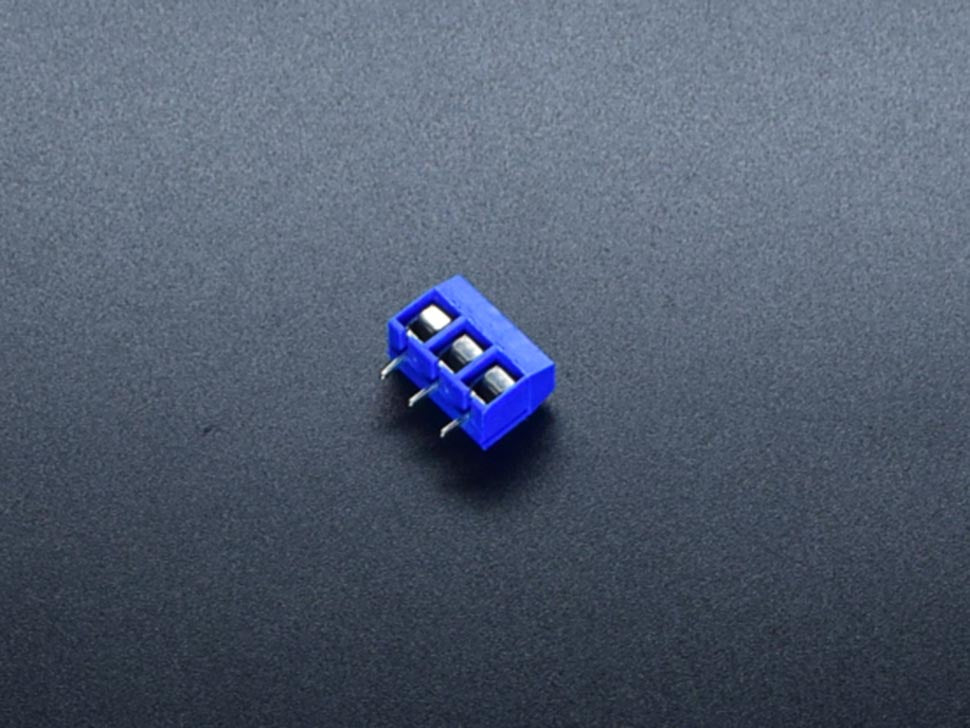

This is a 3 Pole 5.0mm Screw Terminal Block. There are screws which are tightened for a secure connection for both lugs and bare wire.

QUICK SPECS:

• Rated: 250,16A (250V,17.5A)

• Contact resistance: 200mΩ Max

• Insulation resistance: 5000MΩ Min

• Temp range: -30℃~+120℃

• Max Soldering: +260℃ 5s

• Wire range: 22-14AWG(1.5mm2)
