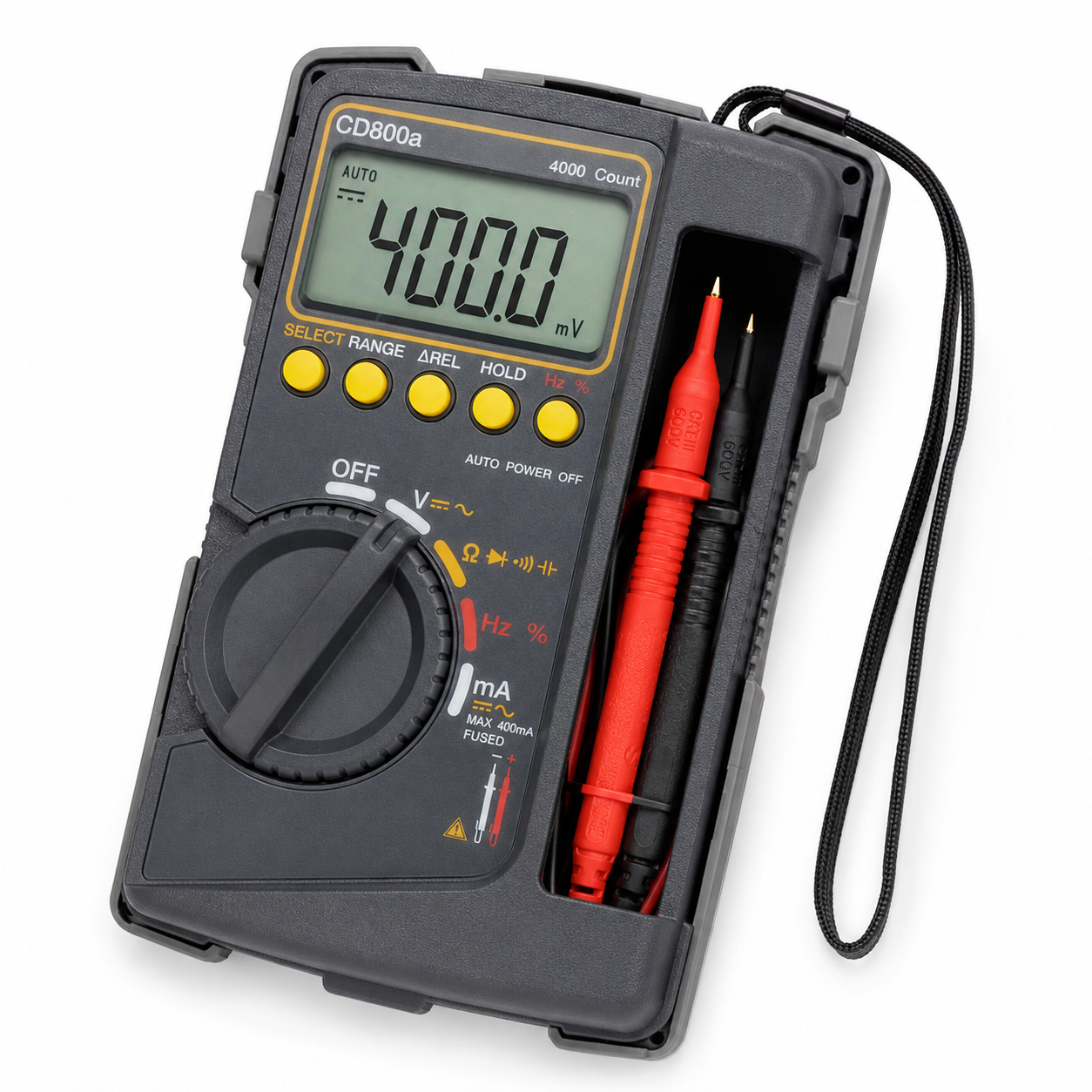

read tutorial →CD800A Digital Multi Tester
The CD800A Digital Multi Tester is a compact and reliable digital multimeter for daily electrical testing. It is made for checking low-voltage circuits, small appliances, batteries, lighting voltage, and small communication equipment. It gives users a handy way to measure common electrical values with one easy-to-use tool.
This tester features a 4000-count digital display with clear, high-contrast readings. It can measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, continuity, and diode status. This makes it useful for repair work, electronics projects, school labs, and basic troubleshooting.
The CD800A supports up to 600V AC/DC voltage measurement and has a best accuracy of ±0.7% for DC voltage. It also includes auto range and manual range options, so users can choose between fast setup or more control while testing.
Its solid body cover helps protect the meter during use and storage. The cover can also work as a tilt stand, letting you place the tester upright while reading values. This is helpful when both hands are needed for test probes or circuit work.
Key Features
- 4000-count digital display
- Best accuracy of ±0.7% on DC voltage
- Measures AC/DC voltage up to 600V
- Measures AC/DC current up to 400mA
- Resistance range up to 40MΩ
- Capacitance range up to 100μF
- Frequency range from 5Hz to 100kHz
- Duty cycle measurement from 20% to 80%
- Continuity test with buzzer
- Diode test function
- Auto range and manual range options
- Data hold function for easier reading
- Protective body cover with tilt stand
- Compact size for field, desk, or lab use
Best For
- Electronics repair
- Appliance checking
- Battery testing
- School and training labs
- DIY electrical work
- Low-voltage circuit testing
- Technician tool kits
- Hobby and maker projects
Included Items
- Sanwa CD800A Digital Multi Tester
- Test leads
- Instruction manual
Product Specs
Display: 4000-count LCD
DC Voltage: 400mV / 4V / 40V / 400V / 600V
AC Voltage: 4V / 40V / 400V / 600V
DC Current: 40mA / 400mA
AC Current: 40mA / 400mA
Resistance: 400Ω to 40MΩ
Capacitance: 50nF to 100μF
Frequency: 5Hz to 100kHz
Battery: R6P 1.5V x 2
Size: H176 x W104 x D46mm
Weight: Approx. 340g
Safety Note
Use this tester within its rated limits only. Always follow the instruction manual before testing live circuits.
