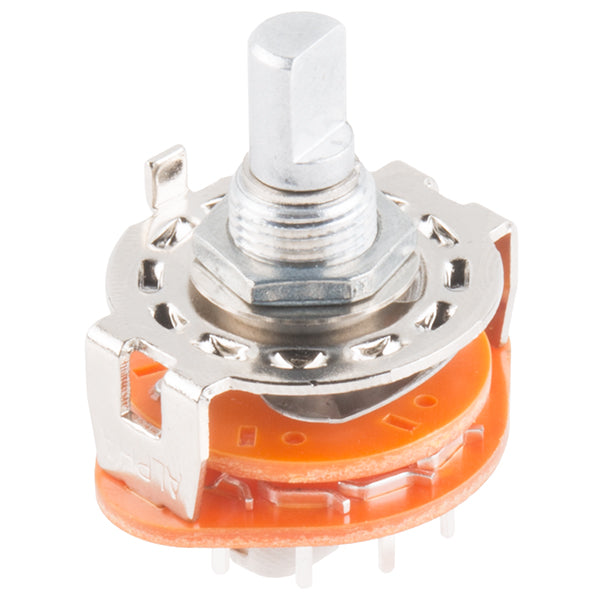

Rotary Switch 10 Position

This is a single pole, 10 position rotary switch able to select up to 10 different states in a durable package. Unlike our other rotary switch, this model is much more robust and capable of handling larger currents and voltages.

With a max voltage rating of 125VAC at 0.3A and a dielectric strength of 250VAC for 1 minute this is a serious little rotary switch capable of working with some of your bigger projects.

QUICK SPECS:

• Rating: 0.3A/125VAC

• Contact Resistance: 50mΩ max

• Insulation Resistance: 100MΩ @ 500VDC min

• Dielectric Strength: 250VAC for 1 minute

• Rotation torque: 1.0+0.5KG/cm

• Shaft: 3/8"

• Datasheet
