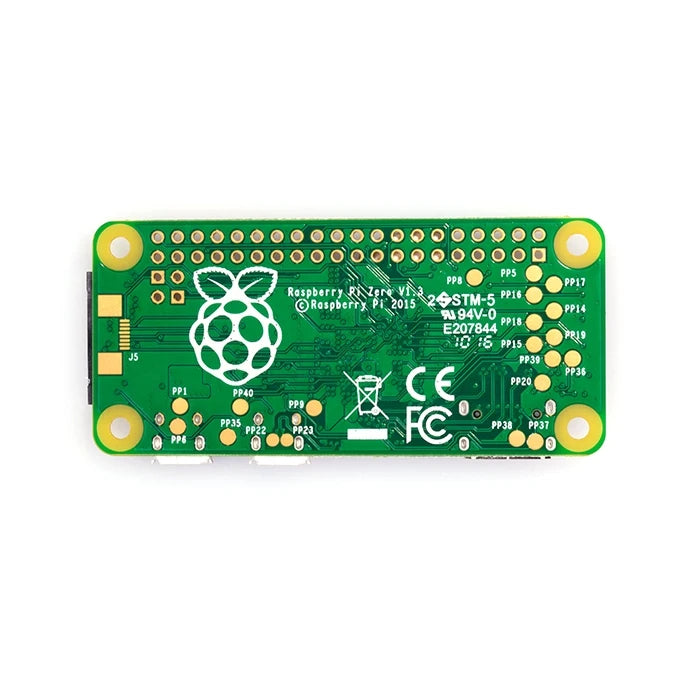

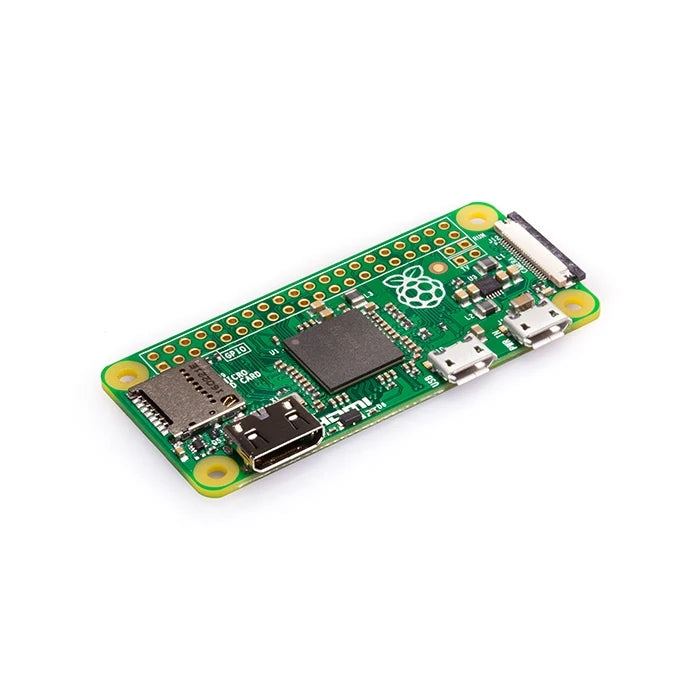

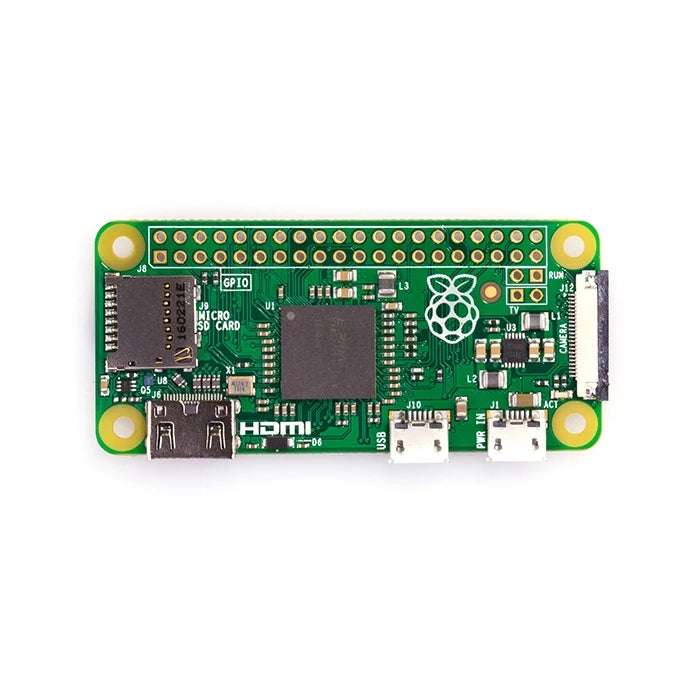

Raspberry Pi Zero — Tiny Linux Computer for Headless, Cameras, and Embedded Builds
The Raspberry Pi Zero is the classic ultra-compact Raspberry Pi: half the size of a Model A+, affordable enough for experiments, and powerful enough for media playback, GPIO control, and lightweight Linux projects. It works great as a headless computer (SSH + WiFi dongle/USB gadget) or as a tiny “real” desktop when you add the right cables.
1GHz CPU
512MB RAM
40-pin GPIO
Mini HDMI
USB OTG
CSI Camera (v1.3)
- Entry-level Pi Zero board (no built-in wireless on this model)
- 1GHz Broadcom BCM2835 single-core CPU + 512MB RAM
- HAT-compatible 40-pin header for Raspberry Pi add-ons (usually unpopulated—add headers if needed)
- Mini HDMI for display output
- Micro USB OTG for USB devices (keyboards, WiFi dongles, flash drives, etc.)
- Micro USB power input
Why/Benefits
Small, low-cost Linux brain
- Perfect for embedded automation, lightweight servers, and DIY electronics dashboards
- Same 40-pin GPIO layout family so many Raspberry Pi accessories fit
- Great for classroom STEM and maker projects
What you can build
- Headless Raspberry Pi: SSH box for scripts, logging, and automation
- GPIO controller for relays, sensors, and small robotics projects
- Mini media player / digital signage (lightweight)
- Compact camera projects (board revision permitting)
Technical specifications
| Board | Raspberry Pi Zero (entry-level Pi Zero line) |
|---|---|
| CPU | Broadcom BCM2835, 1GHz single-core |
| RAM | 512MB |
| Video out | Mini HDMI |
| USB | Micro USB OTG (data) + Micro USB (power) |
| GPIO | HAT-compatible 40-pin header |
| Other headers | Composite video + reset headers |
| Camera | CSI camera connector (v1.3 only) |
Pinout & power notes
- Power: use the dedicated micro USB power port for stable operation.
- USB devices: plug peripherals through the micro USB OTG port (usually via OTG adapter).
- GPIO: add 2x20 headers if your board arrives with unpopulated pins (common for Pi Zero).
What’s in the box
- 1× Raspberry Pi Zero board
FAQ
-
Does this Pi Zero have built-in WiFi/Bluetooth?
No—this model is the entry-level Pi Zero. If you need wireless built-in, choose Pi Zero W or Zero 2 W. -
What cables do I need to start?
Most setups need a mini HDMI adapter/cable, a micro USB OTG cable, a 5V power source, and a microSD card with Raspberry Pi OS. -
Can I connect a Raspberry Pi Camera?
Some Pi Zero revisions include a CSI camera connector (notably v1.3). If your project depends on the camera, confirm your board revision. -
Is it compatible with Raspberry Pi HATs?
It uses the HAT-compatible 40-pin header layout, but you may need to install header pins first.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
