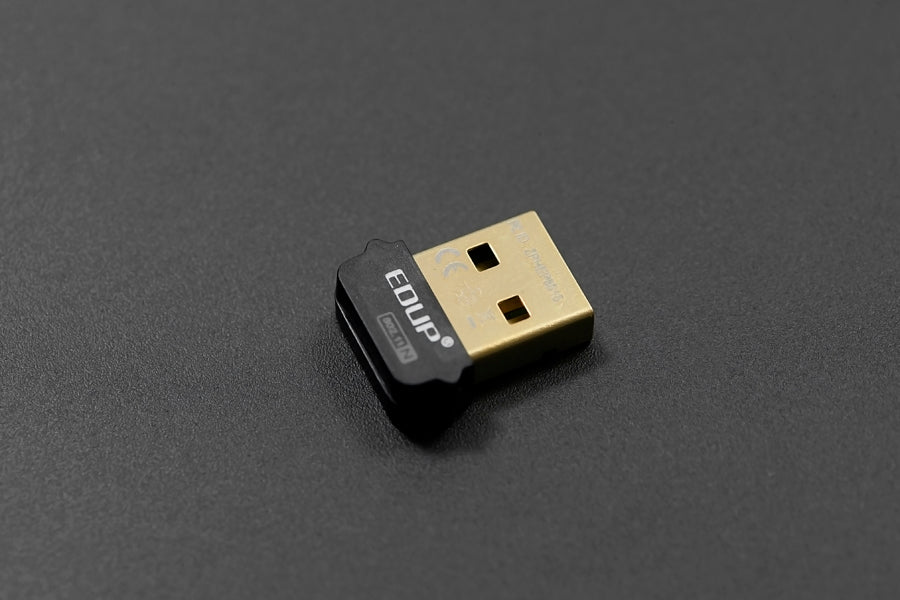

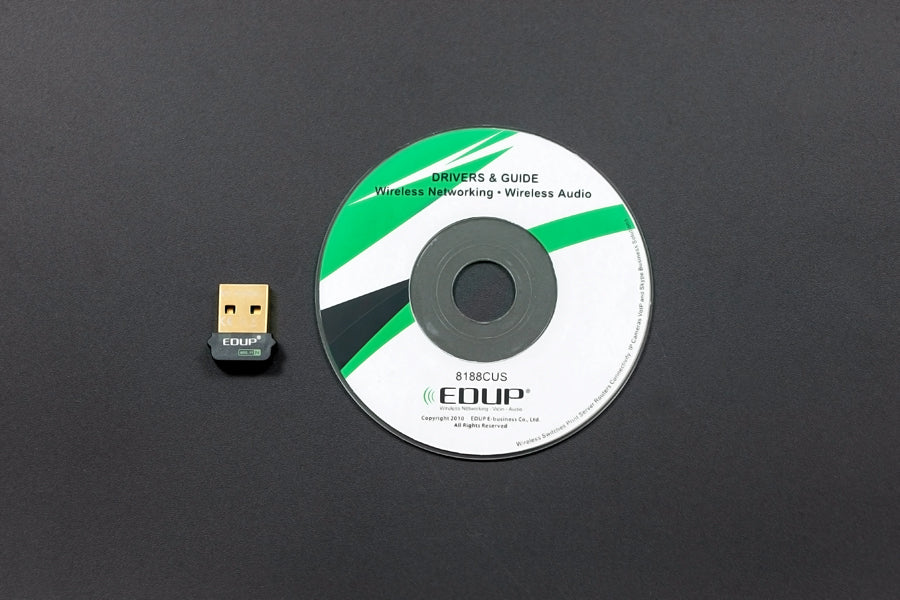

Raspberry Pi WiFi 150M Miniature (802.11n) Module


EDUP"s Wireless-N USB 2.0 Adapter allows you to connect your devices such as laptop, PC and miniPC to any Wireless-N networks in your home or office. The Wireless-N (802.11n) USB 2.0 Adapter is great for those who want to connect devices to internet over a Wireless-N network.

At 5 times faster than traditional Wireless-G (802.11b) networks, Wireless-N networks allow for high speed data transfers, online gaming, and lightning fast downloads. The Wireless-N USB 2.0 Adapter gives you access to all the high-speed features of Wireless-N networks on any devices. Its simple and easy setup means you"ll be surfing the internet, downloading movies, and e-mail in no time.

FEATURES

  • MIMO technology improves data throughput and range over existing 802.11b/g products
  • Add high-speed Wireless-N (draft 802.11n) Internet access to any USB enabled computer
  • Download music & movies, surf the internet and e-mail up to 5 times faster than previous generation wireless networks (Wireless 802.11g)
  • Offers greater coverage than Wireless-G networks for internet access throughout your home or office
  • Works with older Wireless-G and Wireless-B networks
  • WiFi Protected Setup (WPS) simplifies setup and operation
  • Operating distance of up to 300 feet indoor, and up to 900 feet in open space
  • Data transfer rate of up to 150Mbps (downlink) and 150Mbps (uplink)
  • Supports USB 2.0 interface, backward compatible to USB 1.1 and 1.2
  • Enhanced WEP and WPA wireless security for protected Internet access
  • 64-bit / 128-bit WEP (Wired Equivalent Privacy), TKIP, AES 2.400GHz ISM
  • Frequency Band Modulation Method: QPSK / BPSK / 16-QAM / 64-QAM
  • Supports Ad Hoc and Infrastructure modes
  • Supports IEEE 802.11e standard

APPLICATIONS

  • PC
  • Raspberry Pi
  • Cubieboard
  • Radxa Rock
SPECIFICATION

  • Wireless Standards:
  • IEEE 802.11n (draft)
  • IEEE 802.11g
  • IEEE 802.11b
Frequency Band
  • 802.11n: up to 150Mbps (downlink) and 150Mbps (uplink)
  • 802.11g: 54 / 48 / 36 / 24 / 18/ 12 / 9 / 6 Mbps auto fallback
  • 802.11b: 11 / 5.5 / 2 / 1 Mbps auto fallback
Chipset
  • Realtek8188CUS
RF Frequency
  • 2412 ~ 2462 MHz (North America)
  • 2412 ~ 2472 MHz (Europe)
  • 2412 ~ 2484 MHz (Japan)
Radio Channel
  • 1 ~ 14 channels (Universal Domain Selection)
Range Coverage
  • Up to 3 times farther range than 802.11g
Antenna type
  • Integrated Antenna
Roaming
  • Full mobility and seamless roaming from cell to cell
RF Output Power
  • 13 ~17 dBm (Typical)
Modulation
  • 11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
  • 11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
  • 11b: DQPSK, DBPSK, DSSS, CCK
Data Security
  • 64/128-bit WEP Encryption
  • WPA, WPA-PSK, WPA2, WPA2-PSK. TKIP/AES
Network
  • Auto-switch to use 802.11n or 802.11g or 802.11b mode
  • Supports Ad-Hoc, Infrastructure WLAN network
  • Wireless roaming
  • Data rate auto fall-back under noisy environment or longer range distance
  • Site Survey with Profile function
Configuration & Management
  • Plug-and-Play setup and installation
  • Management Utility supports 2000 / XP/ Vista
Media Access Control
  • CSMA/CA with ACK
LED Indicator
  • Link/Active ( Green )
Operating System
  • Windows 2000, XP 32/64-bit, Vista 32/64-bit，
  • Linux and MAC OS X
Environment
  • Operating Temperature: 0oC to 40oC
  • Storage Temperature: -20oC to 75oC
  • Operating Humidity: 10% ~ 90% (Non Condensing)
  • Storage Humidity: 5% ~ 95% (Non Condensing)
Compliant
  • FCC (USA)
  • CE Mark (Europe)
  • RoHS Compliant
  • Wi-Fi Compliant

Raspberry Pi WiFi 150M Miniature (802.11n) Module

Raspberry Pi WiFi 150M Miniature (802.11n) Module

Out of stock

Product Code

FIT0368

₱ 497.00
₱ 497.00
