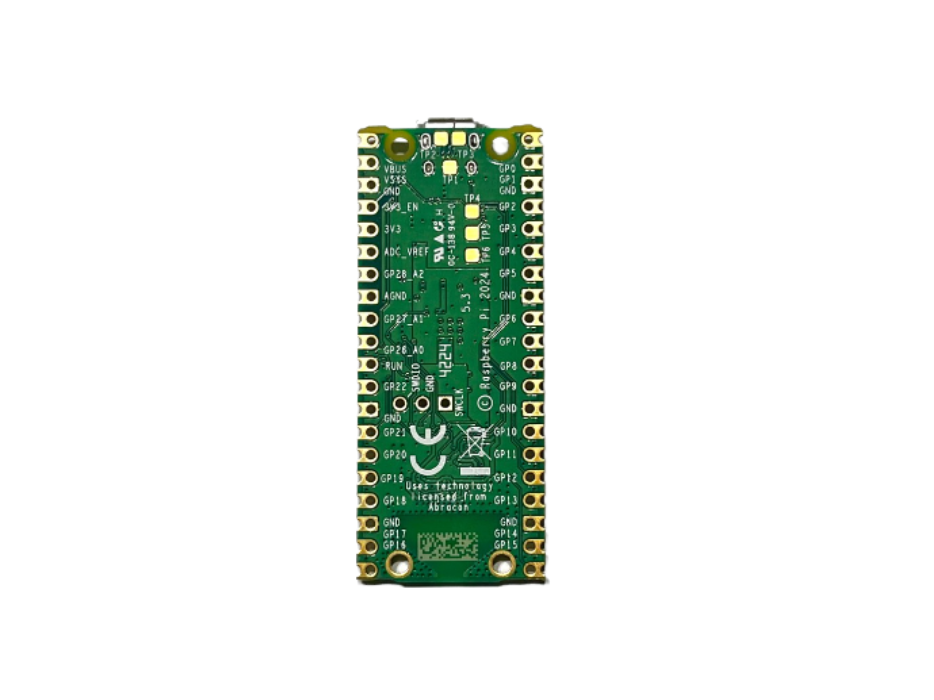

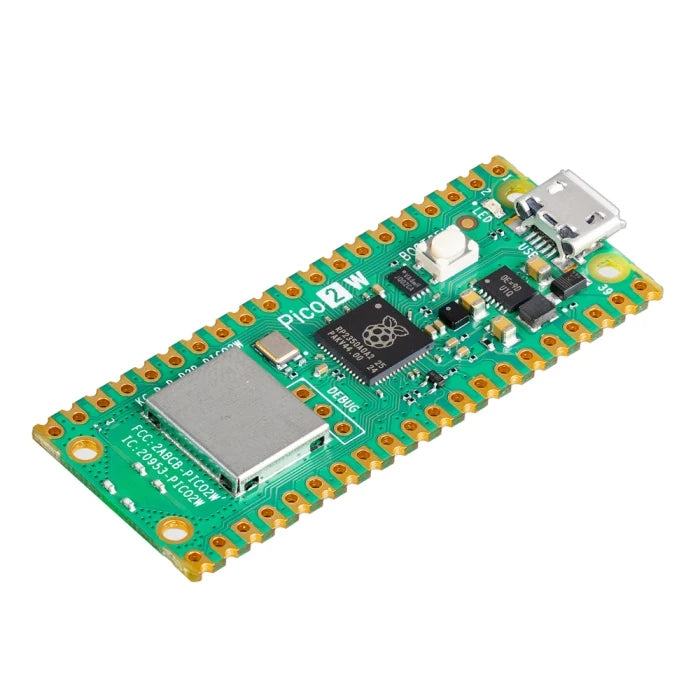

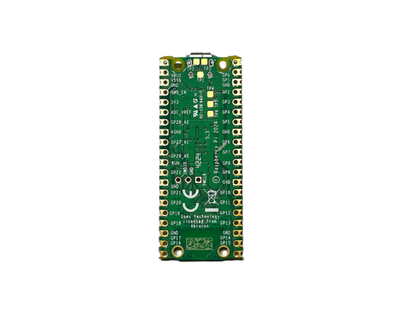

The wireless Pico 2: Raspberry Pi's RP2350 microcontroller plus 2.4GHz WiFi and Bluetooth 5.2 on the familiar 40-pin board. Program it drag-and-drop over USB (UF2) in MicroPython or C/C++.
Wireless is handled by an onboard Infineon CYW43439, and the VSYS input takes anything from 1.8V to 5.5V - single Li-ion cells included.
Specs
| MCU | Raspberry Pi RP2350 |
| Cores | Dual Cortex-M33 or dual RISC-V Hazard3, up to 150MHz |
| Memory | 520KB SRAM + 4MB onboard flash |
| Wireless | 2.4GHz 802.11n WiFi + Bluetooth 5.2 (CYW43439) |
| GPIO | 26 multi-function pins (3.3V logic), 3 ADC-capable |
| USB | Micro USB, UF2 drag-and-drop programming |
| Power input | VSYS 1.8V to 5.5V (onboard buck-boost) |
| Size | 21mm × 51mm, castellated edges |
3.3V logic only - use a level shifter for 5V signals, and keep metal clear of the antenna end for better range.
