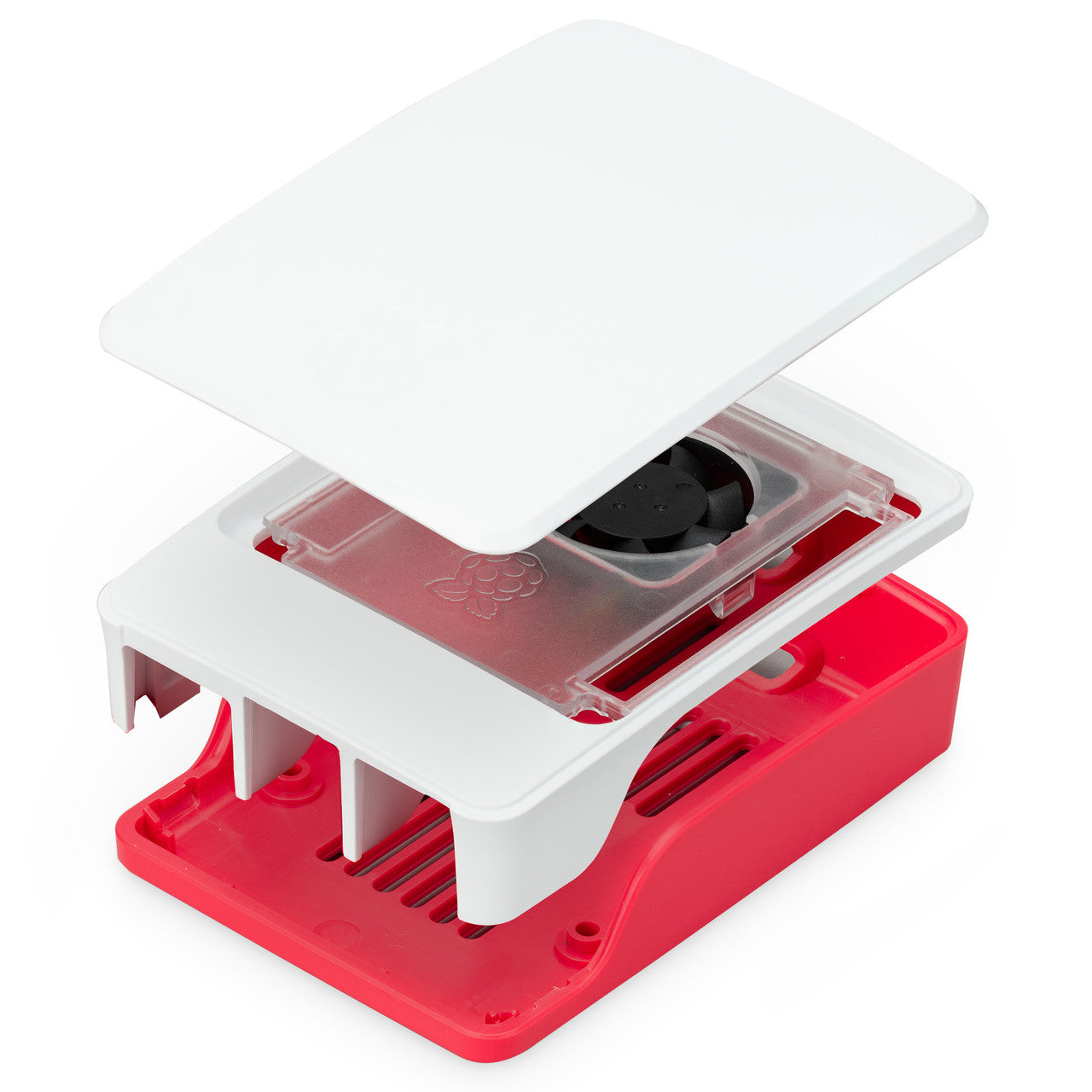

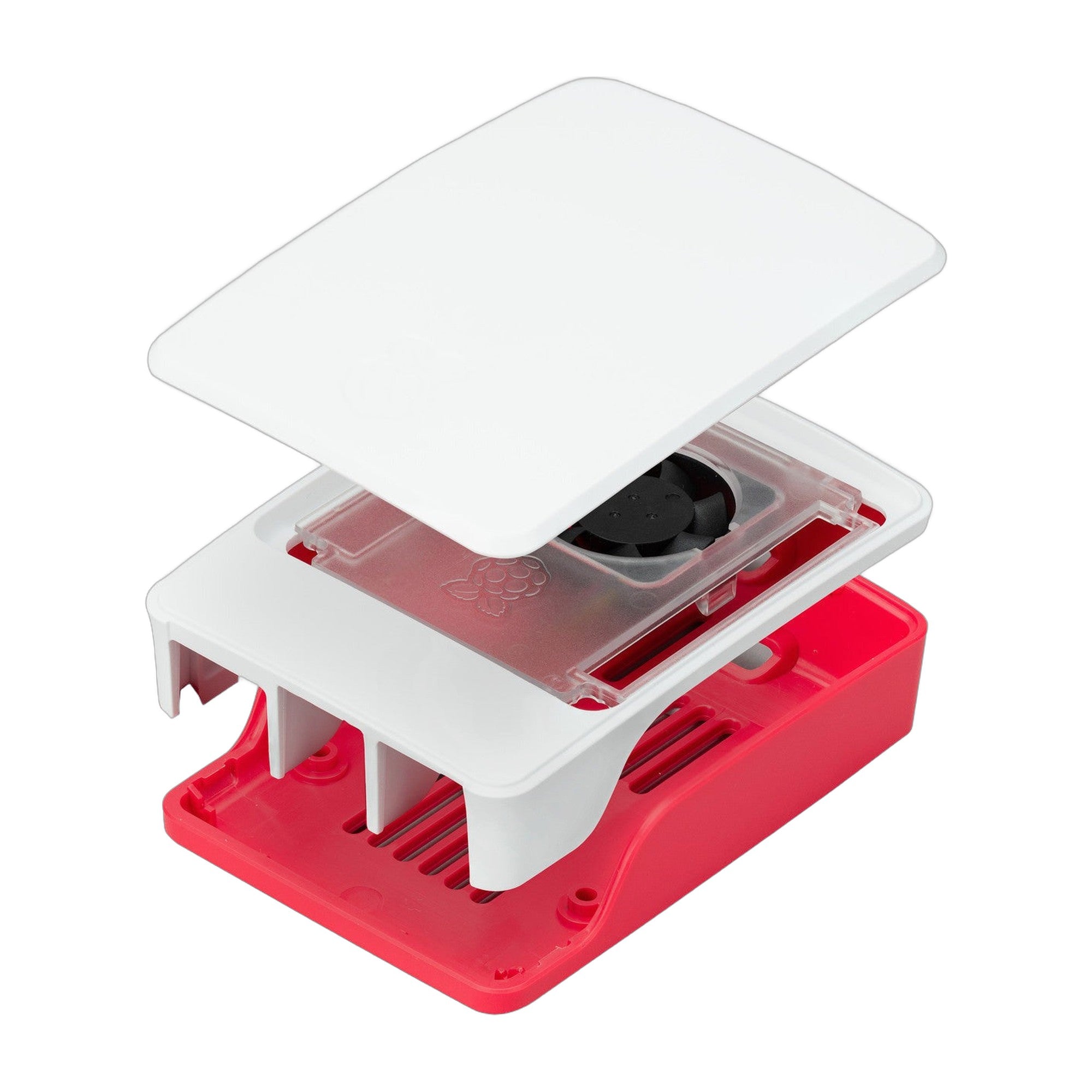

Raspberry Pi Case for Pi 5 Red/White

The Raspberry Pi Case for Pi 5 is a sleek, clip-together enclosure that provides robust protection while maintaining the optimal performance of your Raspberry Pi 5. With its four-part design and integrated, temperature-controlled cooling fan, this case ensures that your Raspberry Pi stays cool even under heavy load. The active cooling system is complemented by a 2mm × 17mm × 4mm heatsink with a self-adhesive pad that efficiently transfers heat away from the processor, maintaining a comfortable operating temperature during intensive tasks.

One of the standout features of this case is its easily removable lid, which not only provides access to the fan but also includes a breakout slot for connecting cables and accessing the GPIO pins. This design makes it simple to add or remove components and customize your setup. Additionally, the case's integrated mounting features allow for easy stacking, and you can mount HATs to the enclosure using stand-offs and GPIO header extenders (sold separately). The screw-less design offers a hassle-free assembly process while providing the flexibility to expand your Pi's capabilities with additional hardware.

The case comes with four silicone feet to ensure stability and prevent slipping on surfaces. With a 5V DC input supplied via the four-pin fan header on the Raspberry Pi 5, the fan operates with pulse width modulation control and a tachometer, achieving a maximum speed of 8000 RPM and delivering up to 2.79 CFM of airflow. Constructed from durable ABS and PC materials, this case not only offers protection but also enhances the longevity of your Raspberry Pi 5 by effectively managing heat dissipation.

Features:

• Integrated, temperature-controlled cooling fan that connects to the fan connector on Raspberry Pi 5
• 12mm × 17mm × 4mm heatsink with self-adhesive pad improves heat transfer from the processor
• Easily removable lid exposes fan and breakout slot for cables and GPIO
• Integrated mounting features allow for case stacking
• HATs can be mounted to the enclosure with stand-offs and GPIO header extenders (not included)
•  Four silicone feet for the case are included

NOTE: The Raspberry Pi Case is a screw-less design but allows for hats to be mounted if desired. Mounting hardware is NOT included.

Specifications:

• Cooling Fan:
  • Input Voltage: 5V DC
  • Control: PWM with tachometer
  • Max Airflow: 2.79 CFM
  • Max Speed: 8000 RPM ± 15%
• Heatsink:
  • Dimensions: 2mm × 17mm × 4mm
  • Self-adhesive pad
• Case Material:
  • ABS (base, frame, lid), PC (fan assembly)
  • Design: Screw-less, clip-together
  • Mounting: Case stacking, HAT compatible
• Additional Features:
  • Includes four silicone feet
  • Removable lid for GPIO and cable access

Technical Details

• Datasheet
