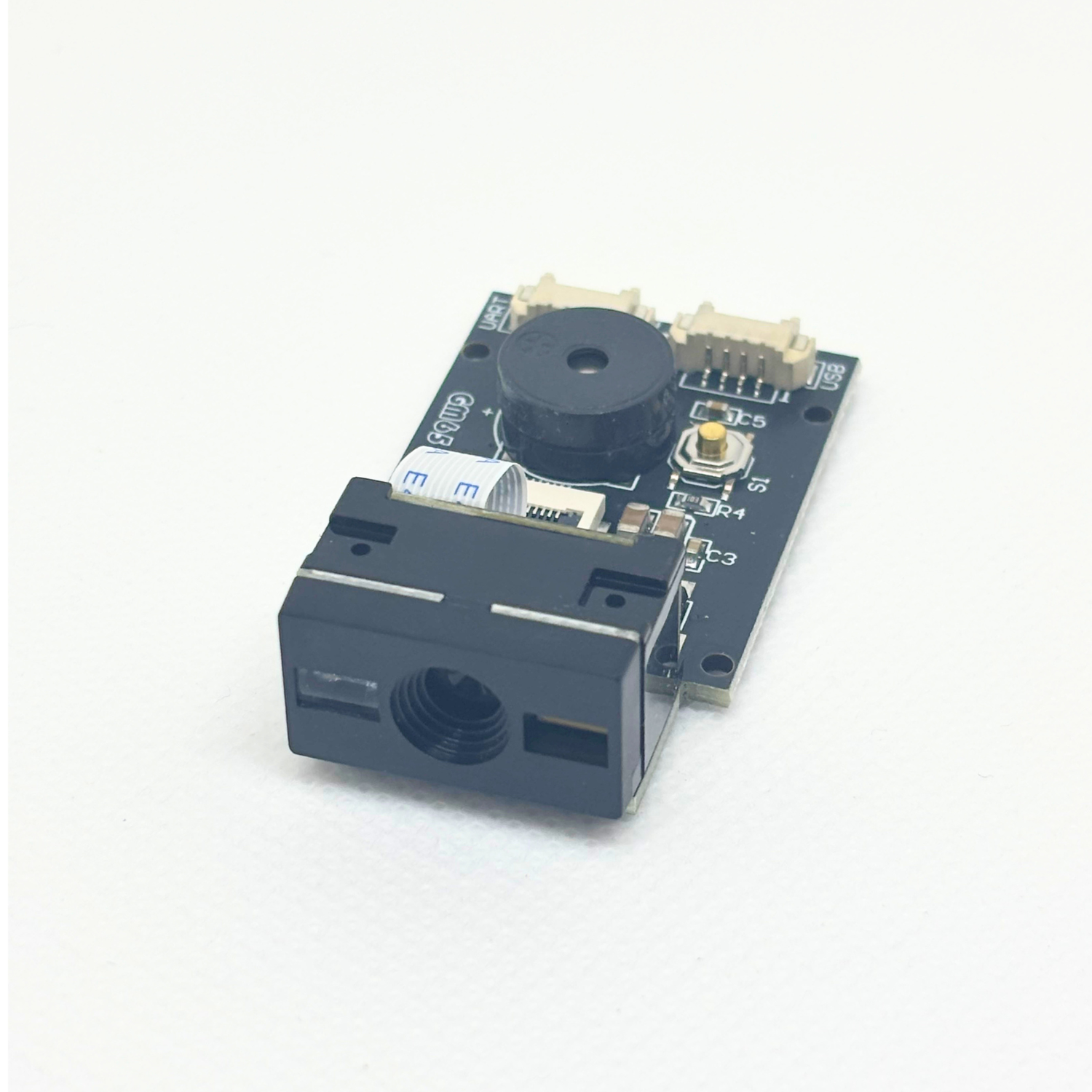

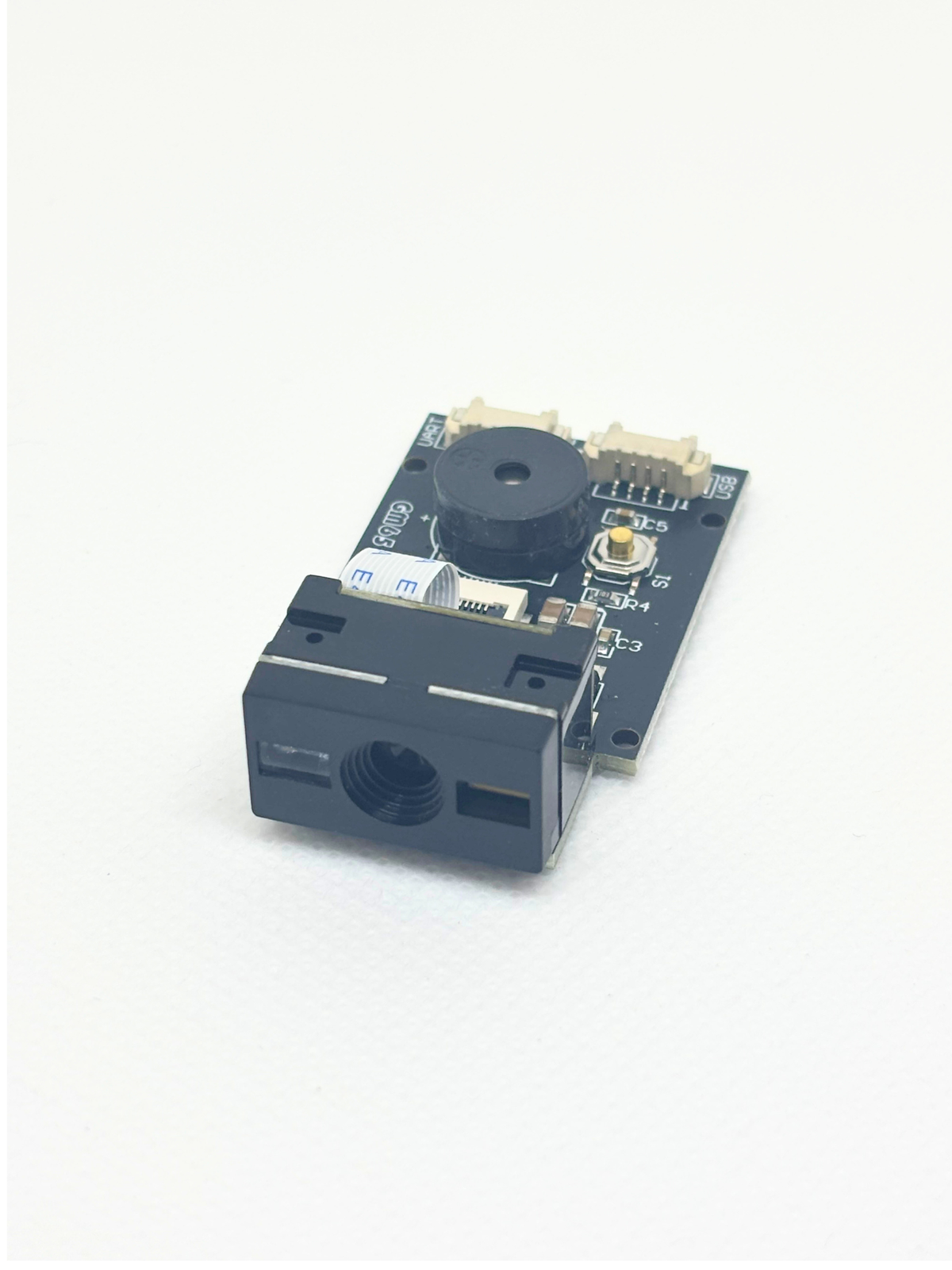

read tutorial →The GM65 QR Code Scanning Recognition Module is a compact scanner module for reading QR codes and barcodes in embedded projects. It is useful for access control, self-service machines, inventory systems, ticket scanners, and other code-reading applications.
It uses a white light source with red light aiming for easier scanning. The module supports wide reading angles, making it easier to scan codes from different positions.
Features:
-
Model: GM65
-
Working voltage: DC 4.2V to 6V
-
Standby current: 30mA
-
Working current: 160mA
-
Sleep current: 3mA
-
Light source: white light
-
Aiming: red light aiming
-
Reading angle: 360° rotation, ±65° tilt, ±60° flat
-
Resolution: 648 × 488
-
Scanning angle: 35° horizontal, 28° vertical
-
Available styles: QR code sweeping dock, QR code recognition module
-
Useful for QR code, barcode, access, and inventory projects
