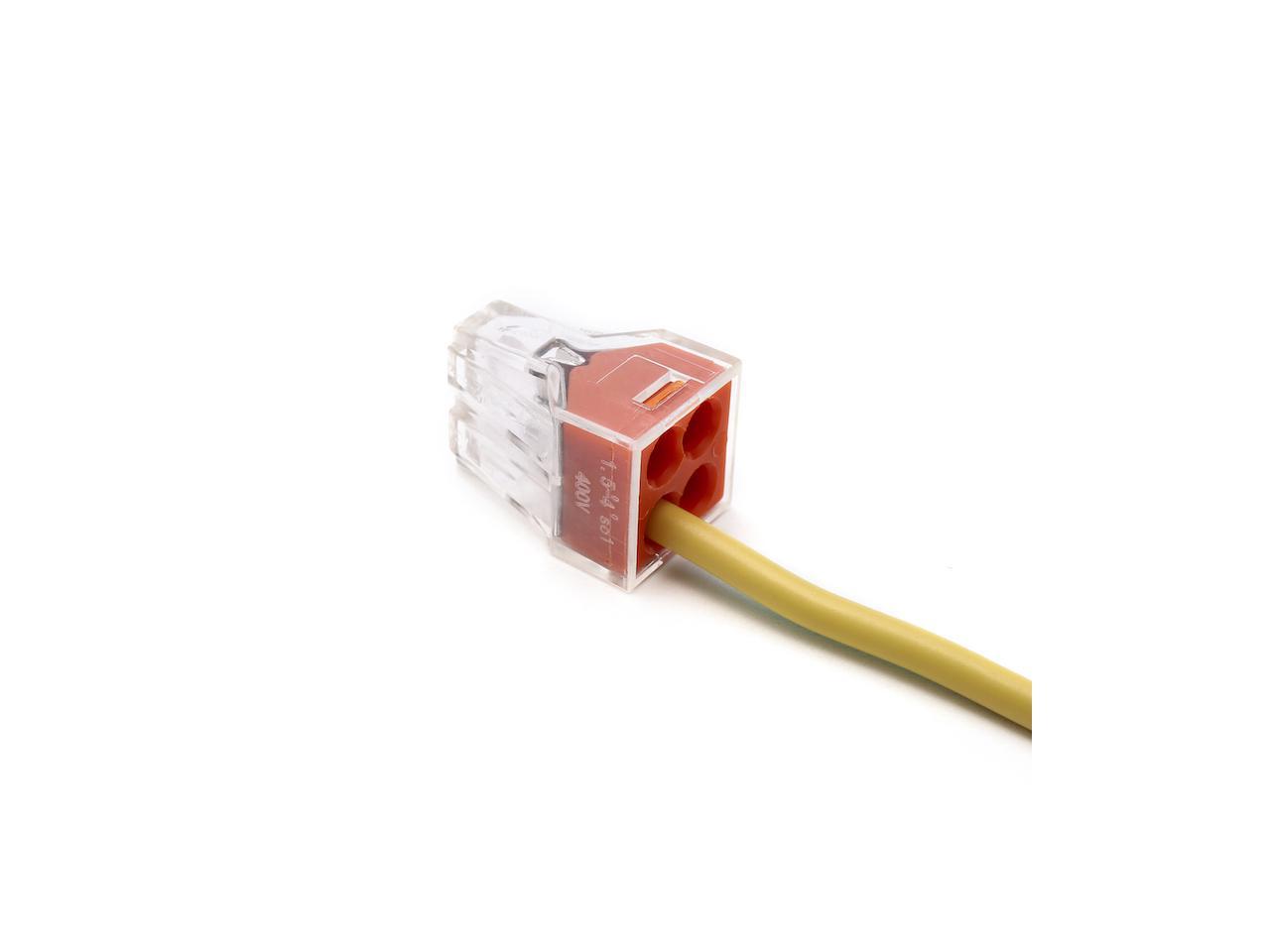

These are the easiest way possible to connect two wires - no if's, and's, or butt's! Well, actually, these are often referred to as wire butts 'cause you 'butt' two wires together (hey we didn't come up with the name!) Butt seriously folks! OK, so despite the humor, these are really handy. If you want to quickly prototype some wiring, skip the soldering and use these 4-pin Wire Joints!
QUICK SPECS
- Safety information 1 In grounded power lines
- Safety information 2 When using conductors of exclusively the same cross section, 0.75 mm²/AWG 18 is also possible
- Rated voltage (II / 2) [V] 400 V
- Rated impulse voltage (II / 2) [kV] 4 kV
- Total number of potentials 1
- Type of wiring Side-entry wiring
- Number of connection points (connection type) 4
- Actuation type Push-in
- Connectable conductor materials Copper
- Solid conductor 0.75 … 2.5 mm² / 18 … 12 AWG
- Stranded conductor 1.5 … 2.5 mm² / 16 … 12 AWG
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
