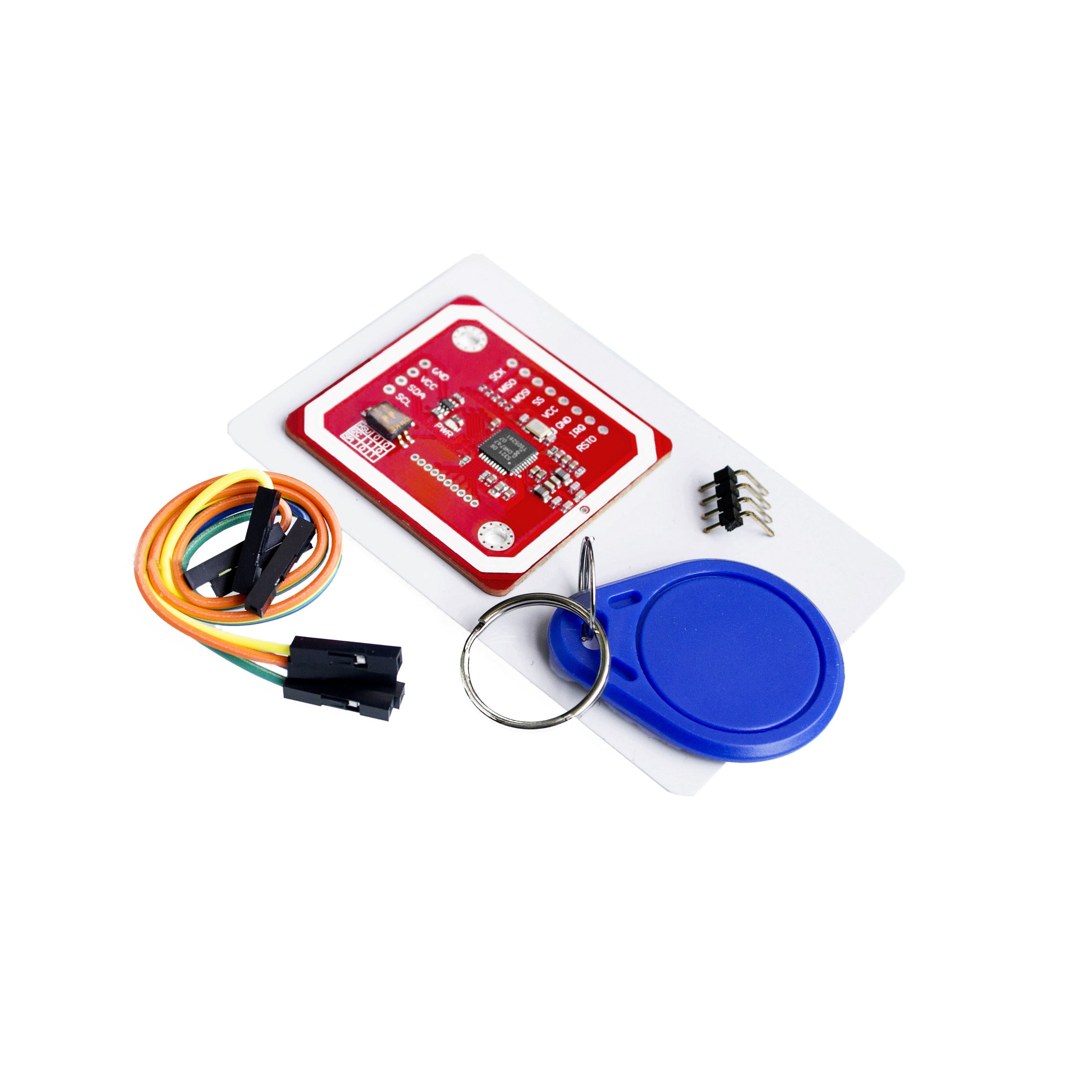

PN532 NFC RFID V3 Module
The PN532 NFC RFID V3 Module is a 13.56MHz reader and writer module for NFC and RFID projects. It can be used with Arduino, Raspberry Pi, ESP32, and other microcontroller boards that support I2C, SPI, or UART.
This module is useful for RFID card reading, NFC tag testing, access control, attendance systems, smart lock demos, payment-style project tests, and phone-to-module NFC experiments.
Why Choose This PN532 Module?
- Supports NFC mode and RFID reader/writer mode.
- Works with common 13.56MHz RFID and NFC cards.
- Supports I2C, SPI, and HSU UART communication.
- Built-in PCB antenna for easier project setup.
- Arduino-compatible and suitable for Raspberry Pi projects.
- Can work as a reader, writer, or virtual card.
- Good for school projects, access systems, and NFC testing.
Common Applications
- NFC tag reading and writing
- RFID card reading projects
- Access control systems
- Attendance and ID systems
- Smart lock project demos
- Phone-to-module NFC tests
- Library or membership card projects
- Arduino and Raspberry Pi RFID projects
What’s Included?
- PN532 NFC RFID V3 Module - 1 pc
Note: RFID cards, NFC tags, headers, wires, and other accessories are not included unless stated in the actual package.
Technical Specifications
| Product Type | NFC RFID reader/writer module |
|---|---|
| Main Chip | PN532 |
| Working Frequency | 13.56MHz |
| Communication Interface | I2C, SPI, and HSU UART |
| Reading Distance | About 4cm to 6cm, depending on card or tag type |
| Antenna | Built-in PCB antenna |
| Logic Level | 5V TTL for I2C and UART, 3.3V TTL for SPI |
| Supported Cards | MIFARE 1K, MIFARE 4K, Ultralight, DesFire, ISO/IEC 14443-4, Jewel, and FeliCa cards |
| Working Modes | RFID reader/writer, NFC mode, virtual card, and peer-to-peer communication |
| Compatible Boards | Arduino, Raspberry Pi, ESP32, and similar microcontroller boards |
| Best For | NFC projects, RFID systems, access control, attendance, and smart card testing |
Setup Notes
Select the correct communication mode before wiring the module. Use I2C, SPI, or HSU UART based on your board, code, and library.
Place the RFID card or NFC tag near the antenna area. The actual reading distance may change based on the card type, tag size, antenna design, and project setup.
Important Notes
- Check the selected interface mode before uploading code.
- Use a compatible PN532 library for your board.
- Do not wire 5V signals to pins that require 3.3V logic.
- Reading distance depends on the card, tag, and wiring setup.
- RFID cards and NFC tags may be sold separately.
Recommended Add-ons
- RFID and NFC modules
- RFID cards and NFC tags
- Arduino boards and modules
- Raspberry Pi boards
- Jumper wires and breadboard parts
FAQ
What is the PN532 NFC RFID V3 Module used for?
It is used for reading and writing supported 13.56MHz RFID cards and NFC tags.
Can I use this with Arduino?
Yes. The PN532 module is commonly used with Arduino-compatible boards.
What interfaces does it support?
It supports I2C, SPI, and HSU UART communication.
Does it support MIFARE cards?
Yes. It supports MIFARE 1K, MIFARE 4K, Ultralight, and DesFire cards.
Are RFID cards or NFC tags included?
RFID cards and NFC tags are not included unless stated in the package.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
