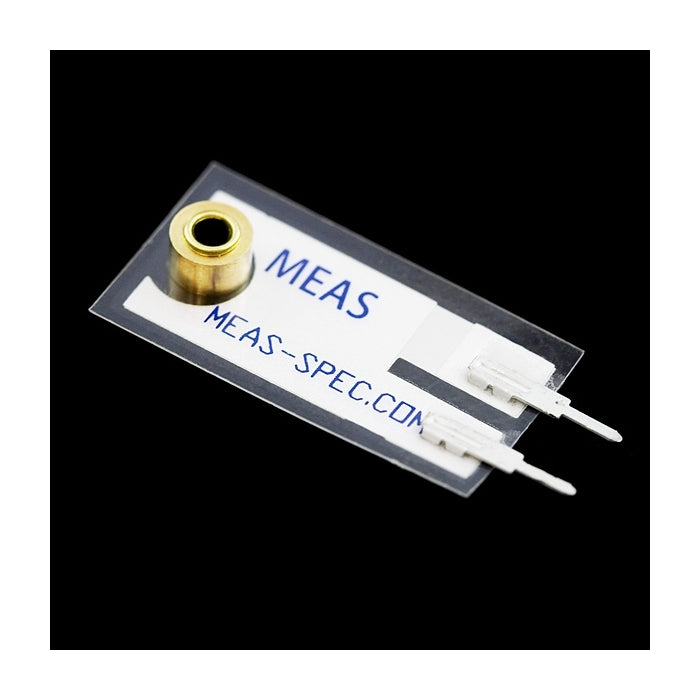

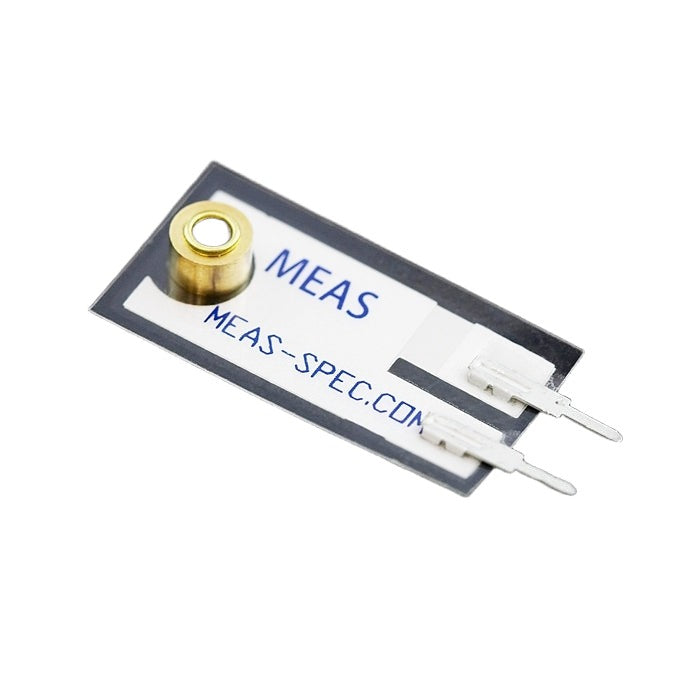

Higher Motion Sensitivity with a Weighted Piezo Vibration Sensor
The Piezo Vibration Sensor Large with Mass is a flexible piezo film sensor built for vibration, motion, tap, and shock detection. The added tip mass improves sensitivity to motion, which makes it a strong choice for event-triggered sensing.
Like other piezo film sensors, it creates an AC signal when the film bends or moves. This version adds a mounted mass so smaller movements can produce a stronger response.
Important: This sensor can generate large voltage spikes when moved. Use a resistor network and proper input protection before feeding the signal into an ADC or comparator.
Why you'll love it
- Mass-loaded piezo tip: Increases sensitivity to motion
- Flexible PVDF piezo film: Good for vibration and shock sensing
- Wide dynamic range: Useful across light to stronger motion events
- Laminated film design: Helps produce stronger voltage output
- Breadboard-friendly leads: Easy to prototype in test circuits
What you can build
Use it in motion-triggered props, knock detectors, condition monitoring tests, tamper alerts, vibration logging, and simple energy-harvest or event detection experiments.
Starter bundles
Pair it with a resistor network, microcontroller, or comparator board to turn raw vibration into a clean event signal.
Recommended add-ons
Helpful add-ons include resistor kits, signal conditioning boards, microcontrollers, data loggers, and mounting hardware.
Technical specifications
| Product | Piezo Vibration Sensor Large with Mass |
|---|---|
| SKU | SEN-09197 |
| Sensor Type | Flexible PVDF piezo film with tip mass |
| Use Cases | Flex, touch, vibration, shock, impact sensing |
| Signal Behavior | AC output with motion |
| Peak Signal Note | Can generate up to about ±90V with motion |
| Lead Style | 0.1-inch breadboard-friendly leads |
Pinout & usage notes
This is a two-wire passive sensor. The added mass raises motion sensitivity, so plan input protection and threshold tuning around your use case.
Resources & support
Official SparkFun product page | SparkFun hookup guide
What’s in the box
1 × Piezo Vibration Sensor Large with Mass
Frequently Asked Questions
What does the added mass do?
It makes the sensor more sensitive to movement and vibration.
Can it be used as a simple switch?
Yes. With the right circuit, it can act like a motion or impact trigger.
Do I need protection parts?
Yes. Piezo sensors can create spikes, so protect your input stage.
