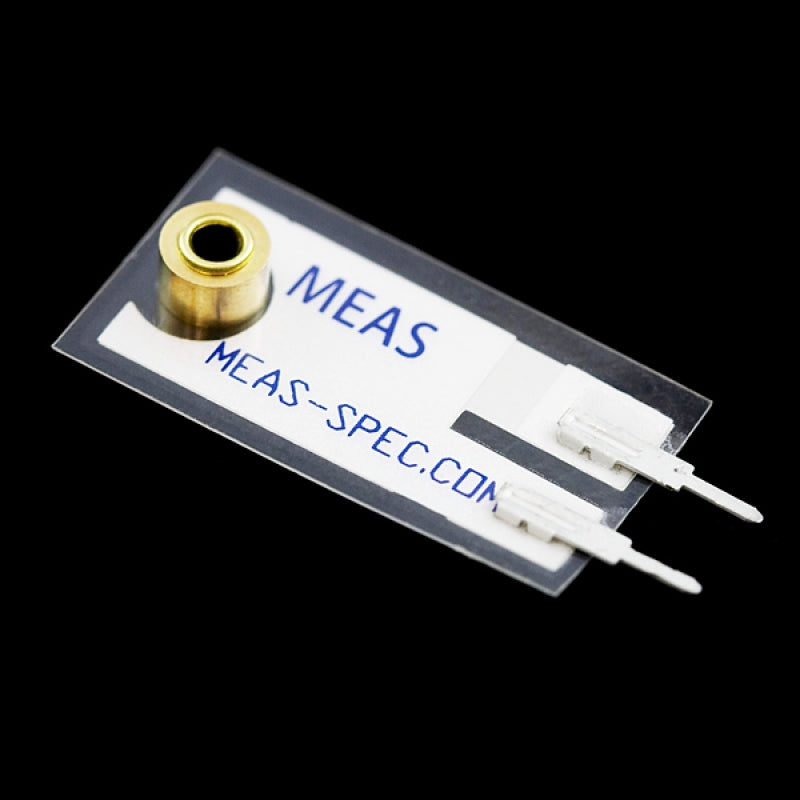

Piezo Vibration Sensor Large with Mass


This basic piezo sensor is often used for flex, touch, vibration and shock measurements. A small AC and large voltage (up to +/-90V) is created when the film moves back and forth. A simple resistor should get the voltage down to ADC levels. Can also be used for impact sensing or a flexible switch.

Comes with solderable crimp pins and a mass attached to the tip. This mass increases the sensitivity to motion.

FEATURES:

  • Flexible PVDF Piezo Polymer Film
  • Wide dynamic range
  • Laminated for higher voltage output
  • 0.1" breadboard friendly leads

DOCUMENTS:

Piezo Vibration Sensor Large with Mass

Piezo Vibration Sensor Large with Mass

14 in stock

Product Code

SKU:SEN-09197

Regular price ₱ 325.00
Regular price Sale price ₱ 325.00
