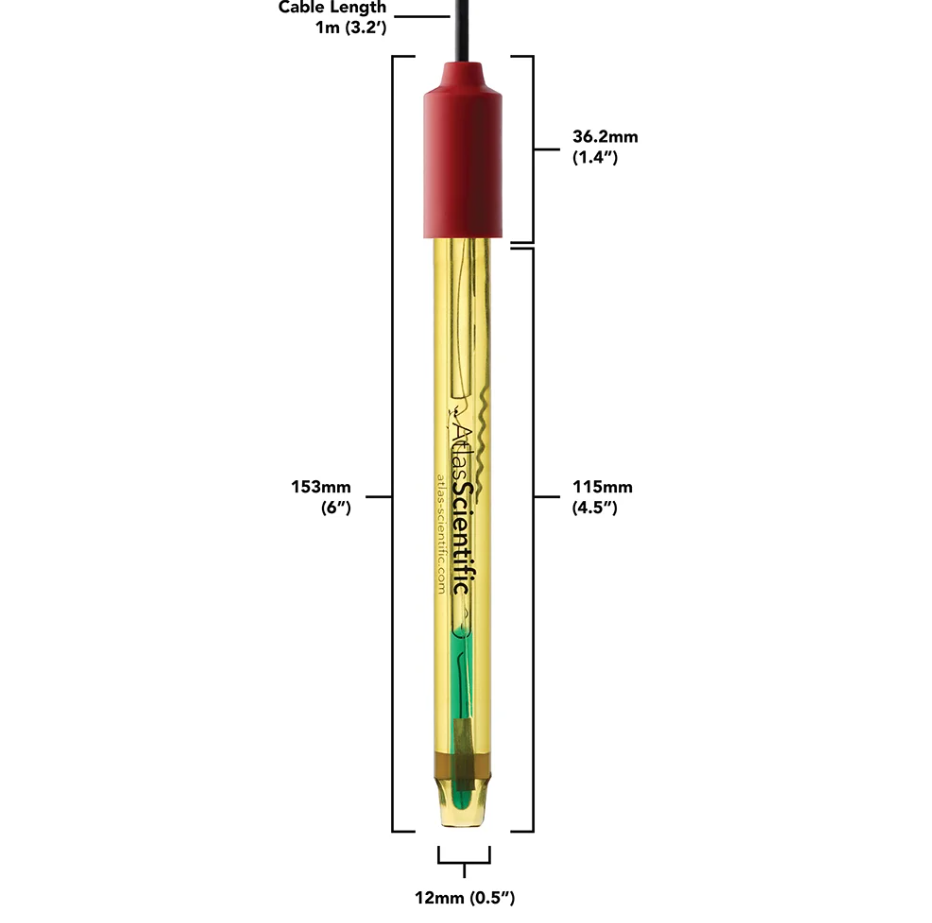

Get Precise pH Readings with a Lab Grade Probe
The Atlas Scientific Lab Grade pH Probe is built for high-accuracy pH measurement in demanding lab and engineering work. It uses a double junction design and a Vanadium III tip to improve stability and reduce noise during measurement.
Atlas also highlights the Tyvek™ junction design, which helps hold internal electrolyte longer and supports longer periods between recalibration in the right applications.
Important: This is a probe only. You still need a compatible Atlas circuit, meter, or transmitter to read and process pH data.
Why you'll love it
- High accuracy probe: Built for precise pH measurement work
- Double junction design: Helps when measuring harder samples, including protein-rich solutions

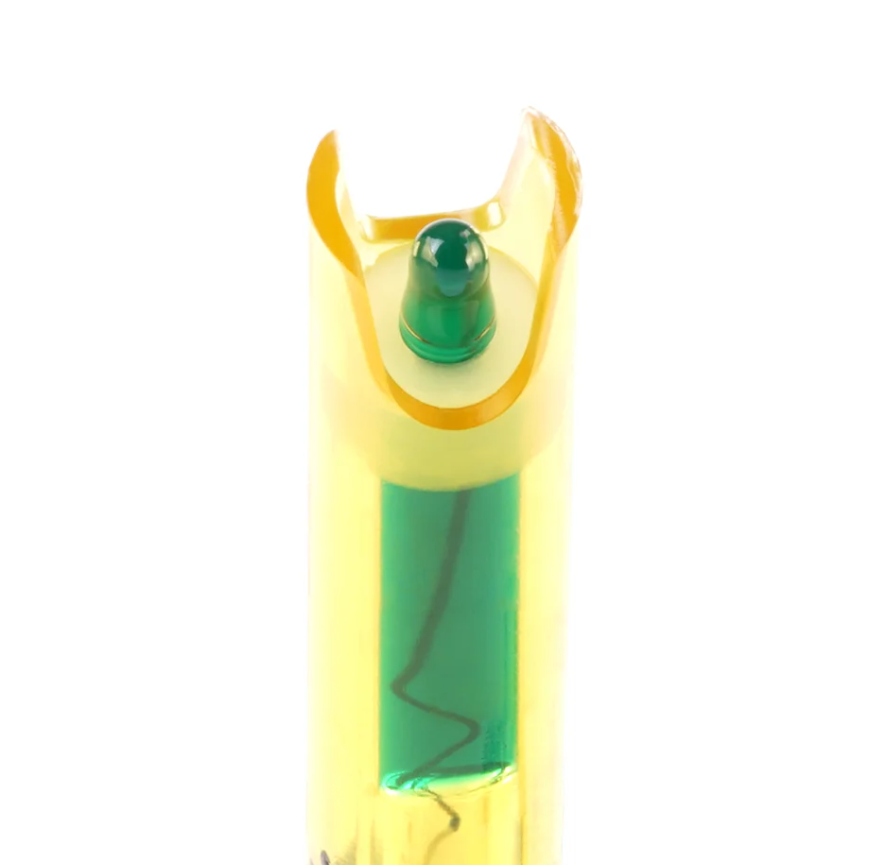

- Stable readings: Vanadium III tip helps reduce noise and improve stability
- Wide pH range: Measures from 0 to 14 pH
- Fast response: Atlas lists 95 percent response in 1 second
What you can build
Use it for lab instruments, benchtop analyzers, water testing rigs, process prototypes, and any setup where accurate pH data matters.
Starter bundles
Pair it with an Atlas EZO pH circuit, carrier board, and proper calibration solutions for a complete pH measurement setup.
Recommended add-ons
Useful add-ons include pH 4, 7, and 10 calibration solutions, storage solution, probe mounts, cable adapters, and compatible Atlas pH electronics.
Technical specifications
| Product | Atlas Scientific Lab Grade pH Probe |
|---|---|
| Probe Type | Lab grade pH probe |
| Reference Design | Double junction silver / silver chloride |
| pH Range | 0 to 14 |
| Resolution | +/- 0.001 |
| Accuracy | +/- 0.002 |
| Response Time | 95% in 1 second |
| Temperature Range | -5C to 99C |
| Max Pressure | 100 PSI |
| Max Depth | 70m / 230ft |

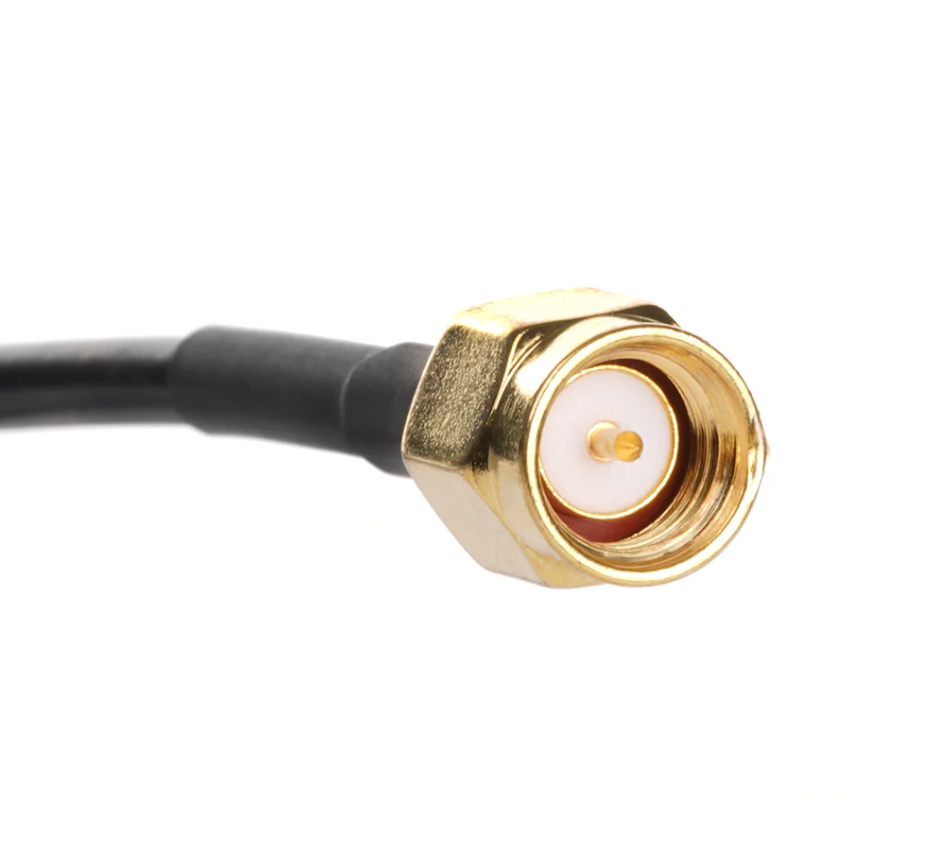

| Connector | Male SMA / Male BNC optional |
| Cable Length | 1 meter |
| Internal Temperature Sensor | No |
| Time Before Recalibration | About 1 year |
| Life Expectancy | About 2.5 years or more |
Pinout & usage notes
Connect the probe to compatible Atlas pH electronics, then calibrate with the proper pH buffers before use. The probe is intended for accurate measurement rather than simple hobby-only checks.
Because this is a probe-only product, plan for matching electronics, calibration solutions, and a suitable mounting method in your finished build.
What’s in the box
1 × Atlas Scientific Lab Grade pH Probe
Note: Reading electronics and calibration solutions are sold separately
Frequently Asked Questions
What pH range does it cover?
Atlas lists a 0 to 14 pH range.
Does it have a built-in temperature sensor?
No. Atlas lists no internal temperature sensor for this probe.
How accurate is it?
Atlas lists accuracy at plus or minus 0.002 pH.
Is this just the probe?
Yes. You need compatible Atlas electronics to read it.
