Nut Traveling for TR8×8(P2) Threaded Rods

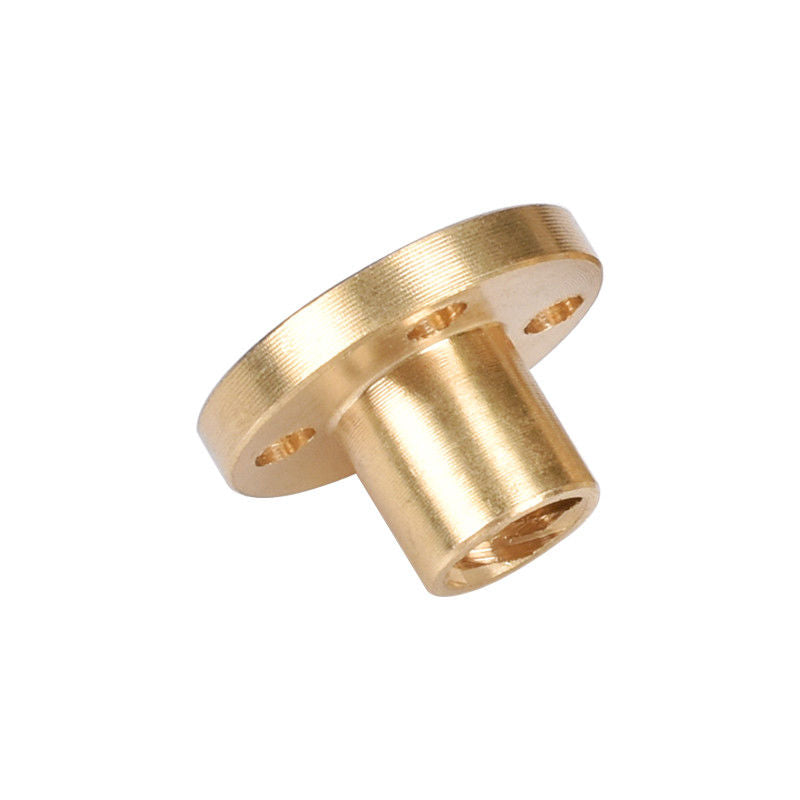

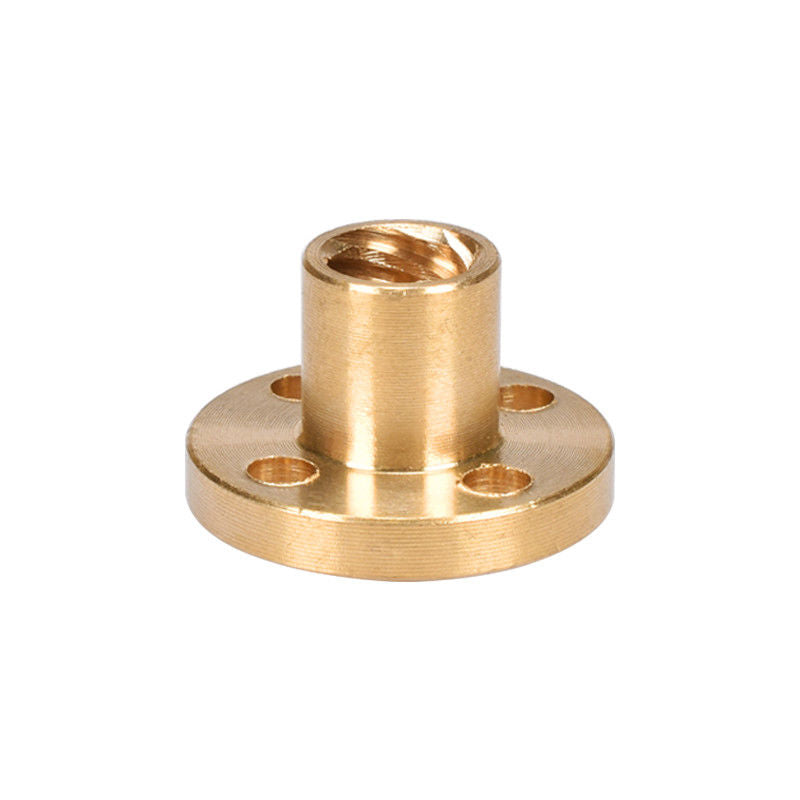

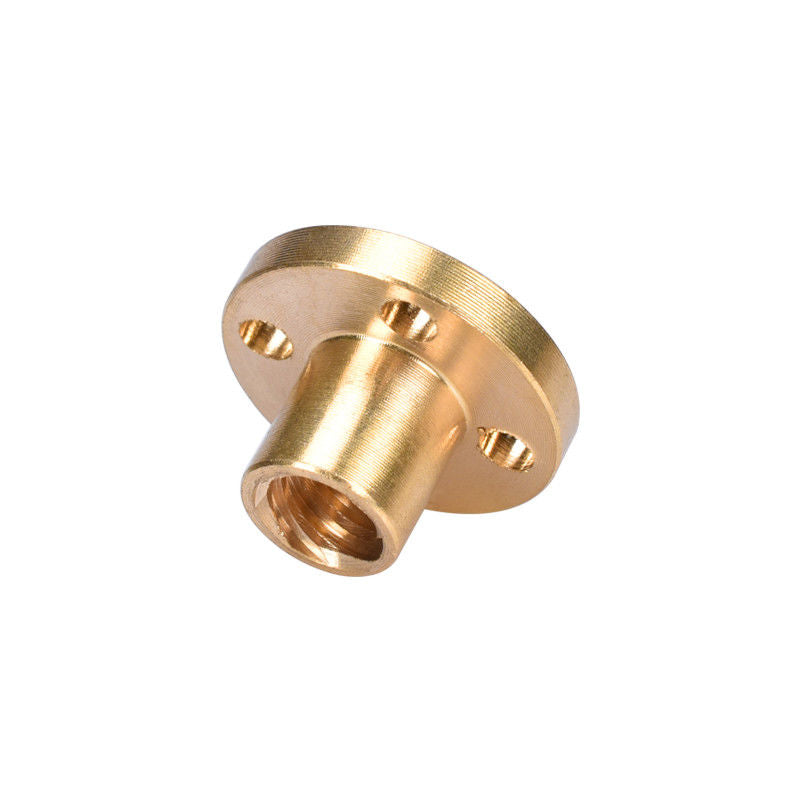

This copper alloy traveling nut is intended for use with Threaded Rods and features a mounting flange with four holes threaded for M3 screws. This is the same nut that is included with our stepper motors with lead screw.

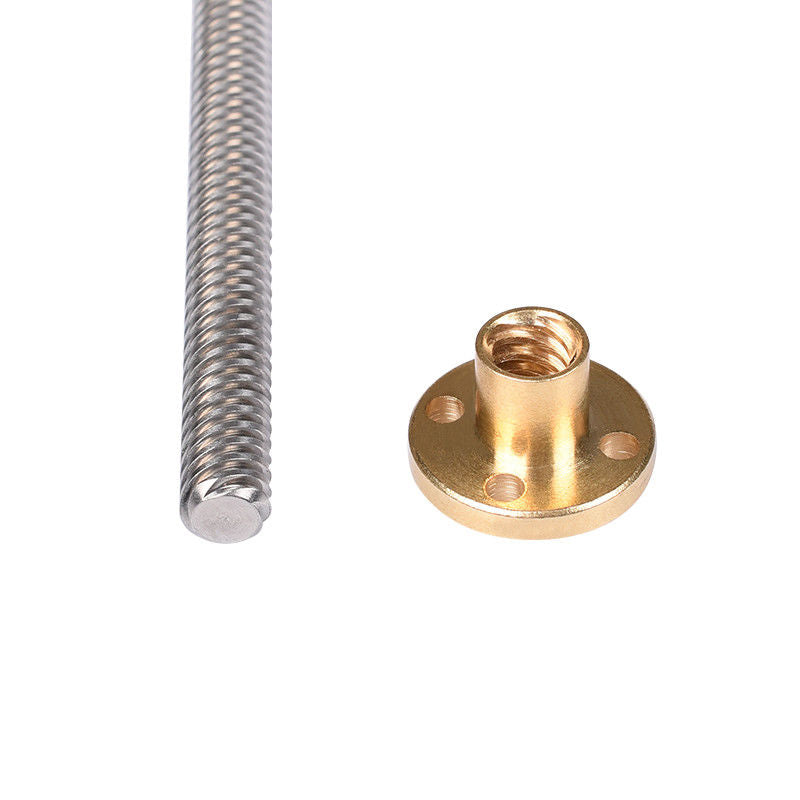

This copper alloy traveling nut (also known as a carriage nut) features a mounting flange with four holes threaded for M3 screws. It is intended for use with Tr8×8(P2) leadscrews, which are 8 mm-diameter rods with four independent trapezoidal threads spaced 2 mm apart. One full revolution of such a rod will result in a 8.0 mm linear displacement of the traveling nut.
