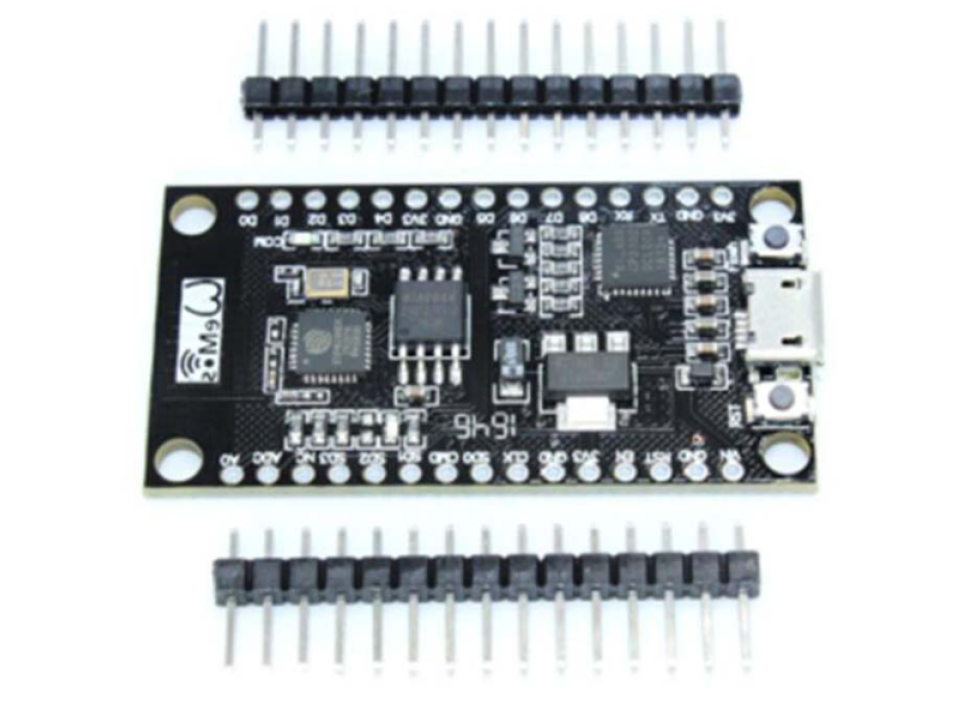

NodeMCU ESP8266 Development Board with CP2102 — Beginner-Friendly IoT Platform
The NodeMCU Lua WiFi Board (CP2102 version) is one of the most popular entry points into IoT development. It puts the ESP8266 chip, a CP2102 USB-to-serial bridge, 3.3V regulator, and reset circuitry all on one breadboard-friendly board — plug in a Micro-USB cable and you are ready to program in Lua, MicroPython, or Arduino C++.
The CP2102 chip provides reliable USB-to-serial communication on Windows, macOS, and Linux with widely available drivers, making this version slightly more compatible than the CH340-based alternatives on some systems.
NodeMCU CP2102 vs CH340 — which USB chip is right for you?
| Feature | CP2102 (this board) | CH340 (NodeMCU V3) |
|---|---|---|
| Driver support | Excellent on all OS — often auto-installs | Good — manual driver needed on some systems |
| Max baud rate | Up to 921600 baud | Up to 2 Mbaud |
| Board size | Compact (V1 form factor) | Wider (V3 form factor) |
| Cost | Slightly higher | More affordable |
| Best for | Plug-and-play on macOS/Linux, corporate laptops | Windows desktops, budget builds |
Key features
- CP2102 USB-to-serial: Reliable, widely compatible across all operating systems
- 11 digital I/O pins: PWM, I2C, SPI, UART — full GPIO access
- 1 analog input: ADC up to 3.3V
- 4 MB flash: Plenty of space for firmware, OTA, and file system
- Micro-USB powered: Straight from laptop or phone charger
- 3.3V logic: Use a level shifter for 5V sensors
- Arduino IDE compatible: Install ESP8266 board package and code like Arduino
Technical specifications
| Core Chip | ESP8266EX (ESP-12E module) |
|---|---|
| USB Bridge | CP2102 |
| Flash Memory | 4 MB |
| Digital GPIO | 11 pins (PWM, I2C, SPI, UART) |
| Analog Input | 1 × ADC (0–3.3V, 10-bit) |
| WiFi | 802.11 b/g/n, 2.4 GHz |
| Power Input | Micro-USB or VIN (4.5V–9V) |
| Operating Voltage | 3.3V logic |
| Programming | Arduino IDE, MicroPython, NodeMCU Lua |
Frequently Asked Questions
What is the difference between NodeMCU V1, V2, and V3? V1 uses the ESP-12 module; V2 (Amica) uses ESP-12E with CP2102, narrower PCB; V3 (LoLin) uses ESP-12E with CH340, wider PCB fitting standard breadboards. This board is based on the V1/V2 form factor with CP2102.
Is it compatible with Arduino IDE? Yes. Add the ESP8266 board URL in Arduino preferences and select "NodeMCU 1.0 (ESP-12E Module)".
Can it run MicroPython? Yes. Flash MicroPython firmware using esptool and code in Python.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
