Build Better micro:bit Robots and Motor Projects

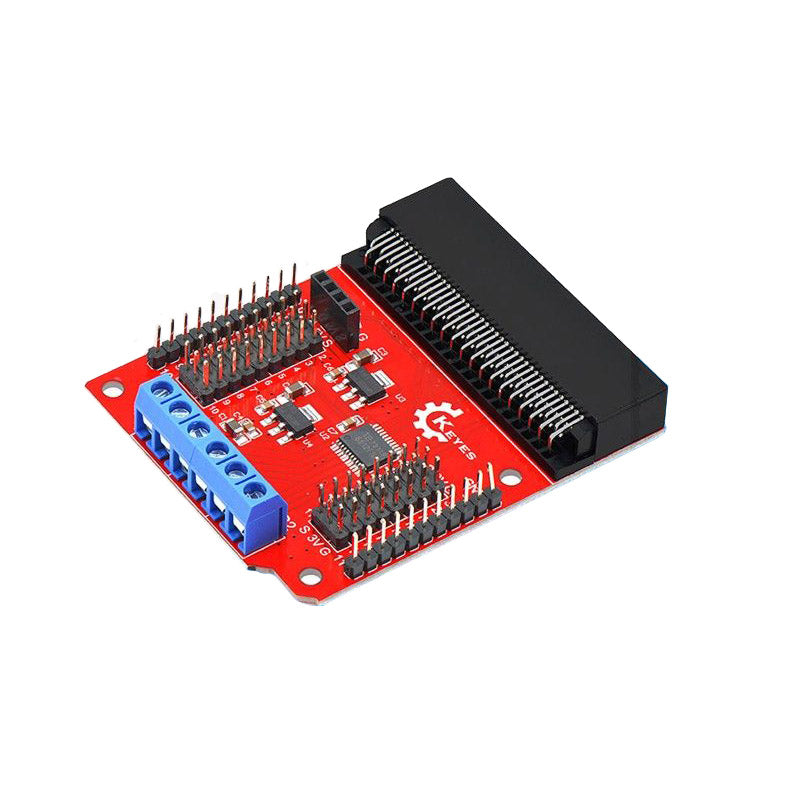

The micro:bit Motor Driver Expansion Board makes it easier to connect your BBC micro:bit to motors, servos, and other project modules. It is ideal for small robots, smart cars, moving mechanisms, and classroom automation projects.
This board adds motor control and extra ports without messy wiring. Just slot your micro:bit into the edge connector, connect your motors or servos, add power, and start coding.
Why Use This Expansion Board?
- Controls up to 4 DC motors or 2 stepper motors
- Includes 8 servo interfaces for moving arms, grippers, or steering systems
- Uses I2C control to save micro:bit pins
- Great for robotics, STEM lessons, and beginner automation projects
- Has labeled ports for cleaner and easier wiring
- Works well with small motors such as ordinary DC motors and N20 gear motors
What You Can Build
- micro:bit smart car
- Line-following robot
- Servo-controlled robot arm
- Small walking robot
- Mini conveyor project
- Motorized school project prototype
Recommended Add-ons
- BBC micro:bit board
- DC motors or N20 gear motors
- Servo motors
- Robot wheels
- Battery holder or external power source
- Jumper wires
Technical Specifications
| Compatible Board | BBC micro:bit |
|---|---|
| Input Voltage | 3.5V to 5.5V DC |
| Digital Output Voltage | 0V / 3.3V |
| Analog Output Voltage | 0V to 3.3V DC |
| Motor Interface | 4 DC motors or 2 stepper motors |
| Servo Interfaces | 8 servo outputs |
| micro:bit GPIO Pins | P0, P1, P2, P8, P12, P13, P14, P15, P16 |
| Motor Driver | HR8833 motor driver |
| Max Motor Current | Up to 1.5A per channel |
| Board Size | Approx. 63mm x 58mm |
Power Notes
Use an external power source when driving motors or multiple servos. The micro:bit alone should not be used as the main power source for motors. Always match the motor power supply to your motor requirements.
What’s in the Box
- 1 x micro:bit Motor Driver Expansion Board
Note: BBC micro:bit board, motors, servos, wheels, and batteries are not included unless stated in the product bundle.
FAQ
Can this control DC motors?
Yes. It can control up to 4 DC motors.
Can this control stepper motors?
Yes. The 4 motor outputs can also be used for up to 2 stepper motors.
Can I connect servos?
Yes. The board has 8 servo interfaces for servo-based projects.
Is this good for beginner robot projects?
Yes. It is a good choice for micro:bit smart cars, small robots, and school projects.
