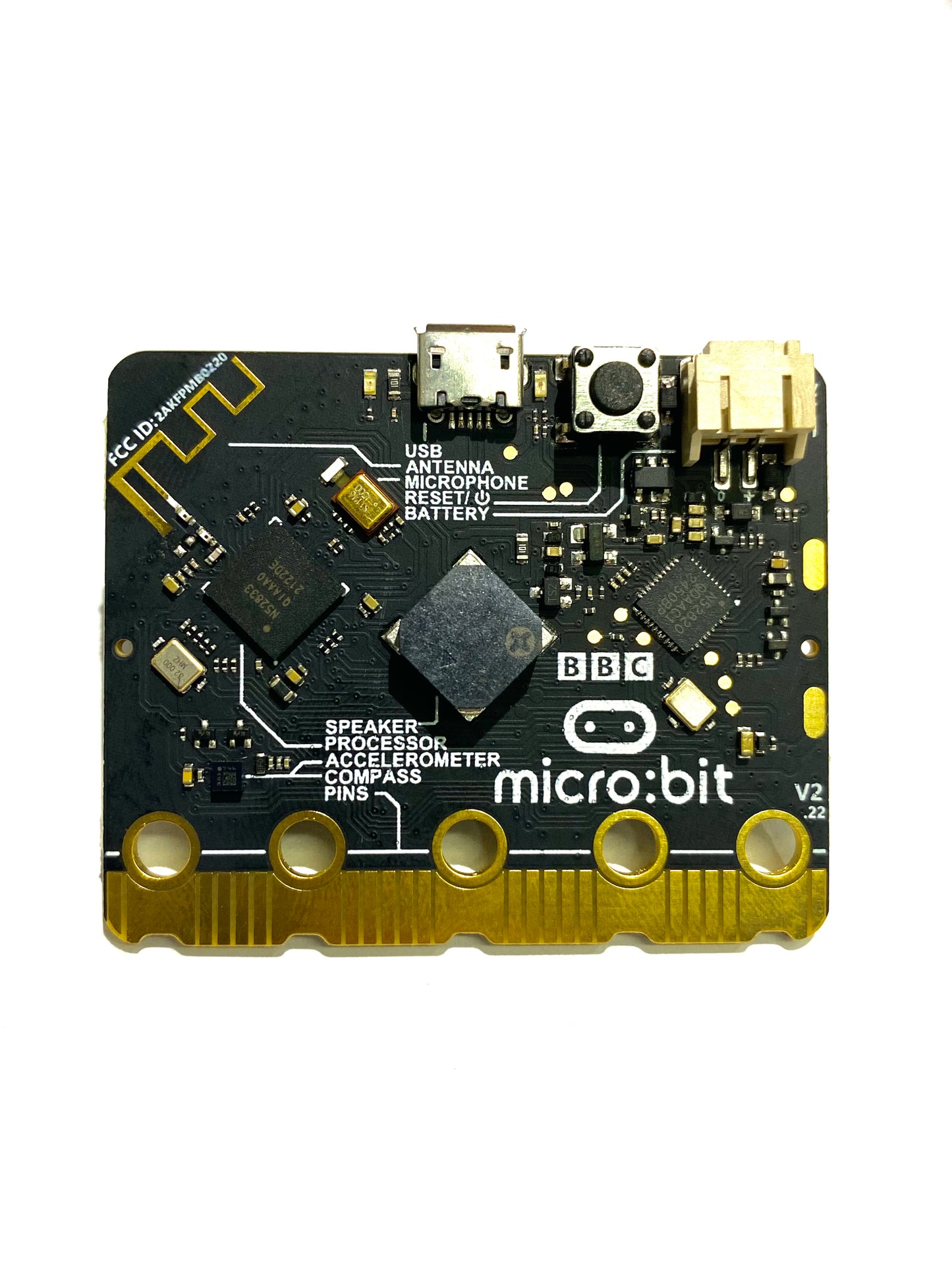

micro:bit v2.2 Board

Description
The BBC micro:bit V2.2 is a pocket-sized computer designed to make learning and teaching easy and fun! It features a built-in display, sensors, microphone, speaker, and Bluetooth. It's programmable via USB or Bluetooth and is widely used in educational environments.

 Specifications
✅ General Features:
      Processor: Nordic nRF52833
          64 MHz ARM Cortex-M4
         512 KB Flash, 128 KB RAM

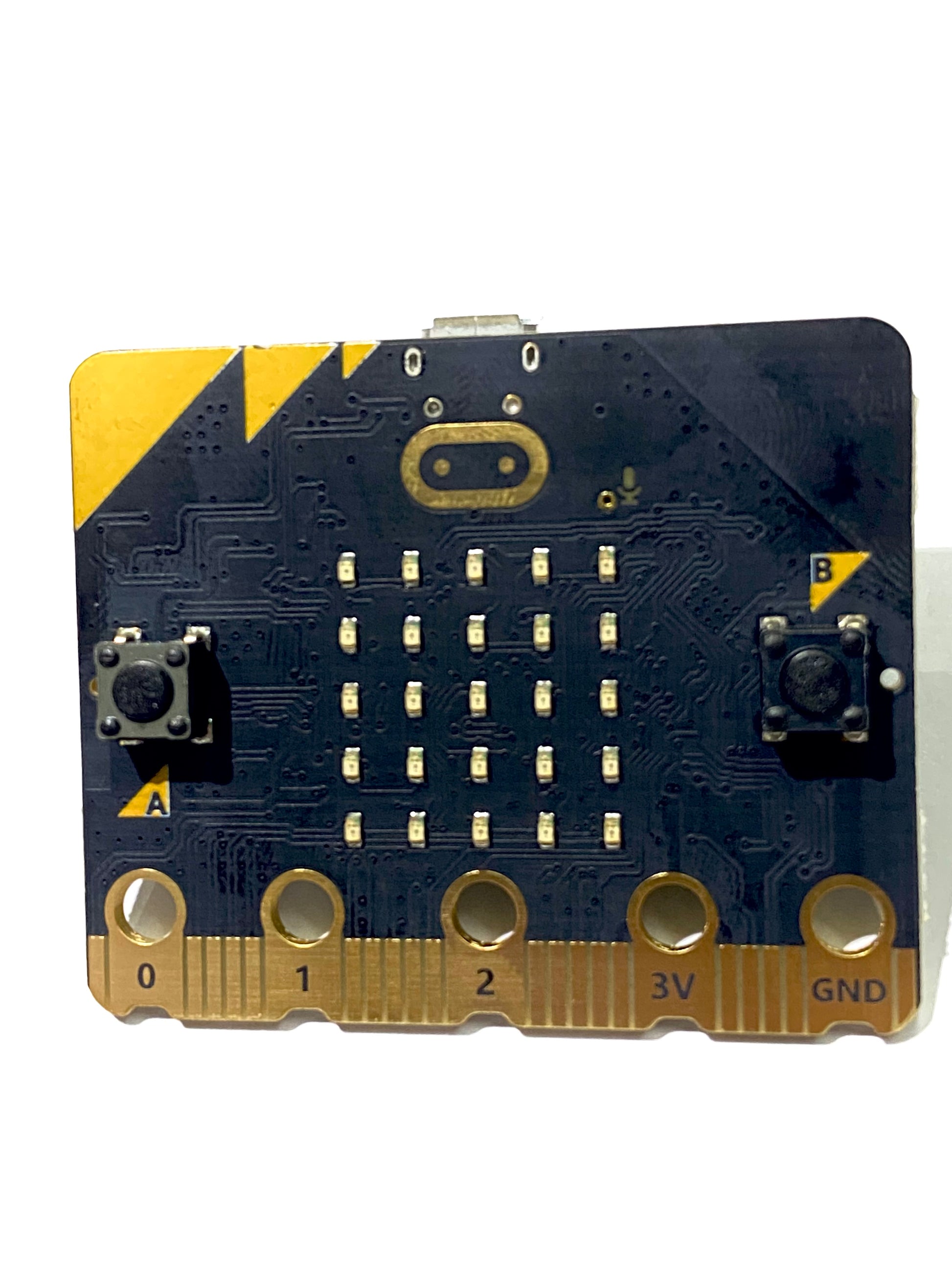

    Display: 5x5 Red LED matrix
    Buttons: 2 programmable push buttons (A & B)
    Touch Input: Capacitive touch logo
✅ Sensors:
    Accelerometer: 3-axis motion sensing
   Magnetometer: Compass functionality
   Microphone: MEMS microphone with LED indicator
   Speaker: Built-in sound output
✅ Connectivity:
     Bluetooth: Bluetooth Low Energy (BLE) 5.0
     USB: Micro USB for power and data
     Edge Connector: 25 pins (including GPIO, PWM, I2C, SPI, and power)
     I2C, SPI, UART support
✅ Power Supply:
     3V JST Battery Connector
     Micro USB (5V)
✅ Other Features:
    Onboard Antenna
    Reset button
    Debug interface via edge connector
    FCC ID: 2AHMR-MB20
 Typical Use Cases:
    Beginner programming projects
    Robotics
    IoT (Internet of Things)
    Interactive games and music
    STEM education
