Detect Nearby Objects Without Contact

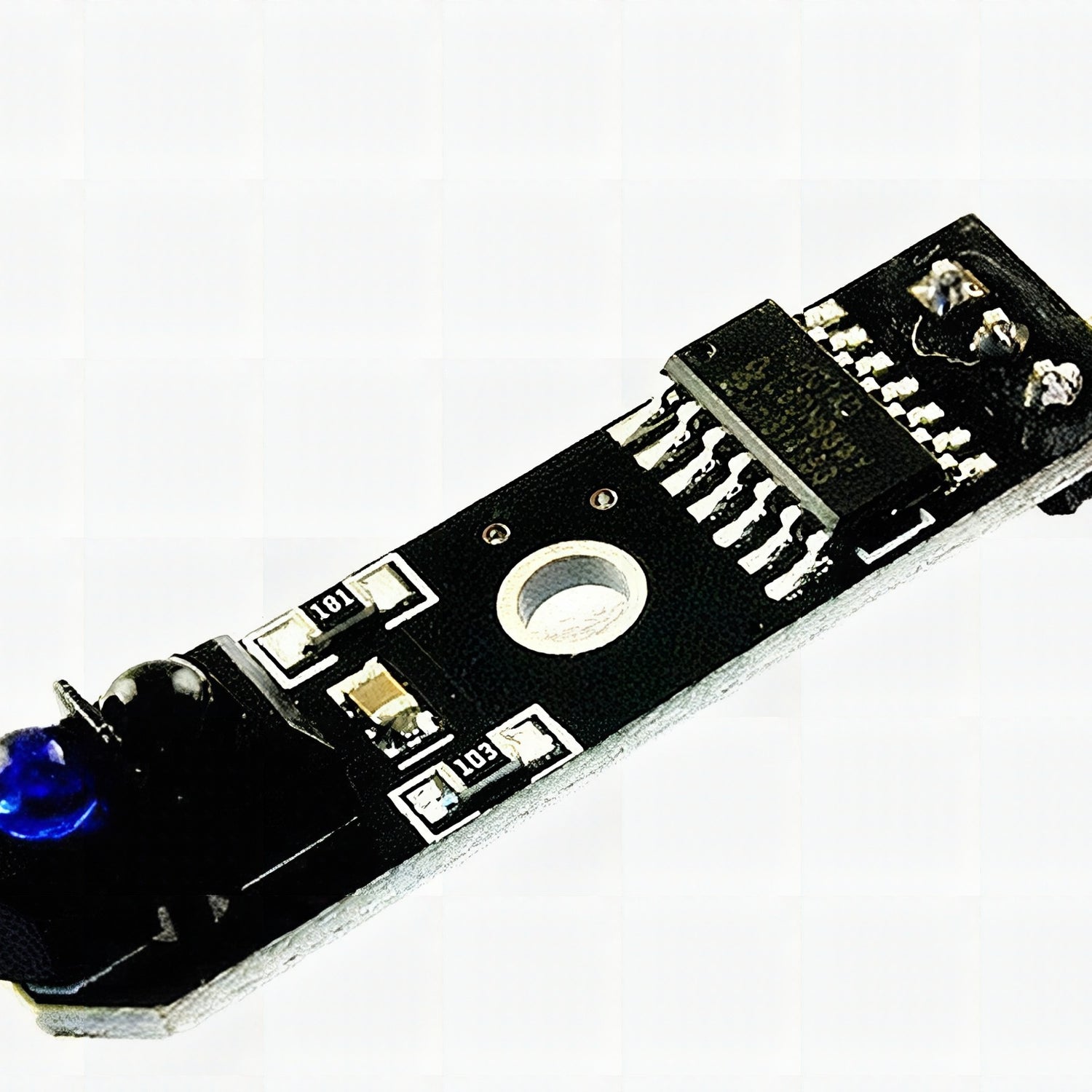

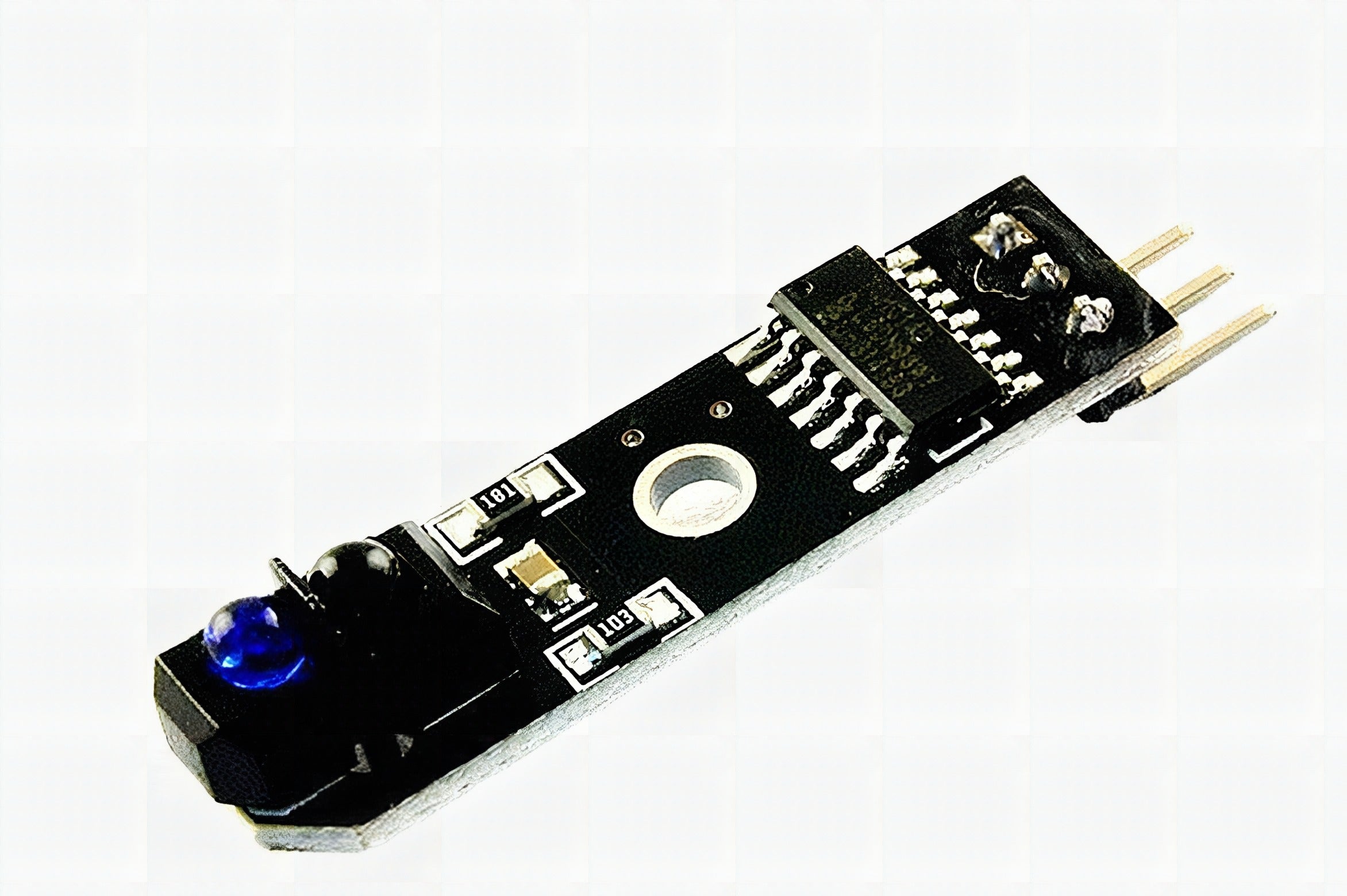

The Line Tracking Sensor Module TCRT5000 is a line tracking sensor designed for obstacle detection, touchless triggers, object counting, and simple automation. It is a practical fit for makers, students, and engineers who want reliable sensor data in embedded builds.

Key details include Supply Voltage: 3.3V~5V; Interface: Digital GPIO.

Important: Infrared and optical readings change with target color, surface finish, distance, and strong ambient light. Test with your real target before final mounting.

Why you’ll love it

  • Digital Outputs LOW when objects detected: Digital Outputs LOW when objects detected
  • Power range: 3.3V~5V
  • Useful spec: 1mm-8mm
  • Easy wiring: Digital GPIO
  • Maker-friendly build: Easy to use in prototypes, classroom projects, and custom electronics
  • Common controller support: Works well with Arduino, ESP32, Raspberry Pi, and similar boards

Compare with similar products

Product Sensor style Standout
Line Tracking Sensor Module TCRT5000 line tracking sensor Current item
TCRT5000 Infrared Reflectance Obstacle Avoidance Module infrared proximity sensor with digital output infrared sensing
Line Tracking Sensor 5 Channel Module line tracking sensor infrared sensing
Line Tracking Sensor 3 Channel Module line tracking sensor with digital output infrared sensing

What you can build

This sensor is a good fit for robot obstacle avoidance, touchless dispensers, automatic doors, object counters, parking aids, and level alarms.

Starter bundles

Pair it with an Arduino-compatible board, ESP32, or Raspberry Pi, plus a breadboard and jumper wires for quick setup and testing.

Recommended add-ons

Useful add-ons include a microcontroller board, jumper wires, and pull-up or pull-down support when needed, depending on how you plan to power, mount, and log the sensor.

Technical specifications

Product Line Tracking Sensor Module TCRT5000
Supply Voltage 3.3V~5V
Detect distance 1mm-8mm
Interface Digital GPIO
Category proximity presence sensors

Wiring & usage notes

Connect power and ground, then wire the output pin to a digital GPIO input. Check whether the module uses active-high or active-low logic in your code. Infrared and optical readings change with target color, surface finish, distance, and strong ambient light. Test with your real target before final mounting.

What’s in the box

1 × Line Tracking Sensor Module TCRT5000

Frequently Asked Questions

What does the Line Tracking Sensor Module TCRT5000 measure? It is designed to measure line contrast or surface reflectivity.
Can I use it with Arduino, ESP32, or Raspberry Pi? Yes. It is well suited for common maker and embedded platforms, as long as you power it at the correct voltage and match the signal level to your controller.
How do I connect this Digital GPIO sensor? This sensor provides a digital switching-style signal that is easy to read from a GPIO pin.
What affects accuracy? Power quality, wiring, mounting, target material, and the real environment can all affect the reading. It is best to test and calibrate in the final setup.
Is it good for prototyping? Yes. It is a practical choice for learning, proof-of-concept builds, and small automation projects.

Line Tracking Sensor Module TCRT5000

Line Tracking Sensor Module TCRT5000

43 in stock

Product Code

AB604

₱ 27.00
