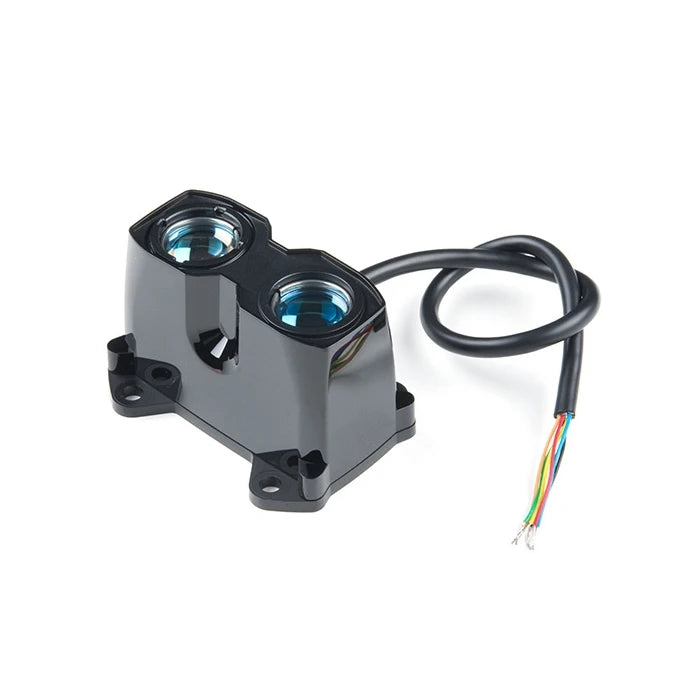

The Garmin LIDAR-Lite v3HP is a compact optical distance sensor made for fast and accurate ranging. It can measure from 1m to 40m with 1cm resolution, making it useful for drones, robots, UAVs, UGVs, and outdoor sensing projects.
This HP version offers faster sampling, with an update rate of over 1kHz. That helps projects track moving objects more smoothly compared with slower distance sensors. It also uses less current than the older LIDAR-Lite v3, helping battery-powered builds run longer.
The sensor supports both I2C and PWM, so it can work with many microcontrollers. It runs on 4.75V to 5VDC, with a 6V max limit. Its rugged water-rated housing also makes it a strong choice for outdoor robotics and drone projects.
Key Features:
- 1m to 40m measuring range
- 1cm resolution
- ±2.5cm typical accuracy beyond 2m
- Over 1kHz update rate
- I2C or PWM interface
- 4.75V to 5VDC operating voltage
- 65mA idle current
- 85mA current during measurement
- 905nm laser wavelength
- IPX7 water rating
- Compact 24.5mm × 53.5mm × 33.5mm body
- Lightweight 34g design
