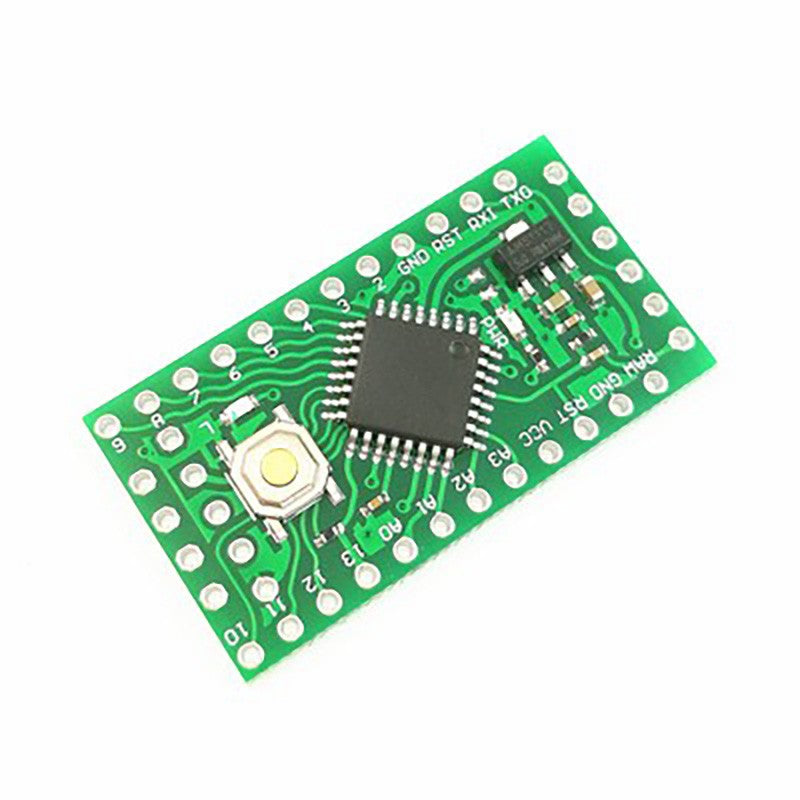

LGT8F328P LQFP32 Mini EVB Expansion Board

The LGT8F328P LQFP32 Mini EVB Expansion Board is a compact, high-performance development board based on the Logic Green LGT8F328P microcontroller. Designed as an enhanced alternative to the ATmega328P, it offers higher processing speed, additional peripherals, and improved analog performance while maintaining excellent compatibility with the Arduino development ecosystem. The LGT8F328P adds features such as a 32 MHz internal oscillator, integrated DAC, and operation at both 3.3 V and 5 V, making it a capable upgrade over traditional ATmega328P-based boards.

Ideal for embedded development, robotics, IoT, automation, sensor interfacing, and educational projects, this Mini EVB provides reliable performance in a compact form factor while remaining easy to program using the Arduino IDE with the appropriate board package.

Features

• Based on the Logic Green LGT8F328P 8-bit AVR-compatible microcontroller

• Available in 3.3V and 5V operating versions

• Internal oscillator supporting system clocks up to 32 MHz

• 32 KB Flash memory

• 2 KB SRAM

• Multiple PWM outputs for motor and LED control

• Built-in ADC and DAC peripherals

• Supports UART, SPI, I²C (TWI) communication interfaces

• High-speed timers for precision timing applications

• Programmable watchdog timer

• Compact Mini EVB form factor for breadboard and embedded applications

Specifications

• Microcontroller: LGT8F328P (LQFP32)

• Operating Voltage: 3.3V or 5V (depending on model)

• System Clock: Up to 32 MHz

• Flash Memory: 32 KB

• SRAM: 2 KB

• PWM Channels: 8

• Communication Interfaces:

  • UART (USART)

  • SPI

  • I²C / TWI

• Analog Functions:

  • ADC

  • DAC

• Timers:

  • 2 × 8-bit Timers

  • 2 × 16-bit Timers

Applications

• Arduino-compatible development

• Robotics and automation

• IoT devices

• Sensor monitoring systems

• Motor control

• Embedded control systems

• Educational electronics projects

• DIY prototypes

Package Includes

• 1 × LGT8F328P LQFP32 Mini EVB Expansion Board

Note: This board requires the appropriate LGT8F328P board package to be installed in the Arduino IDE before programming. Please select the correct 3.3V or 5V version when ordering.
