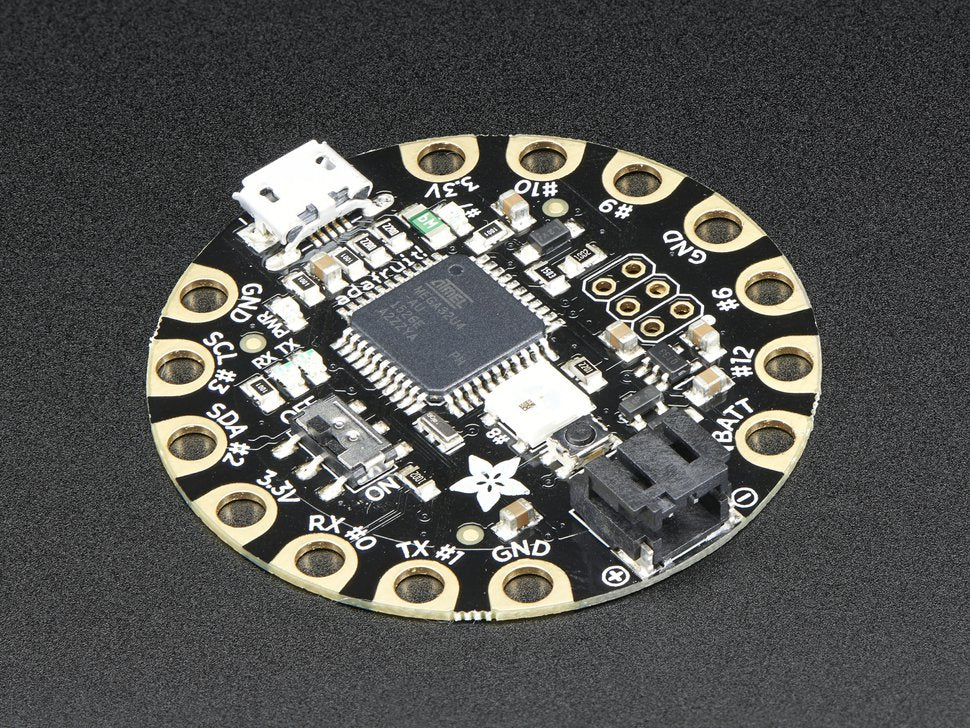

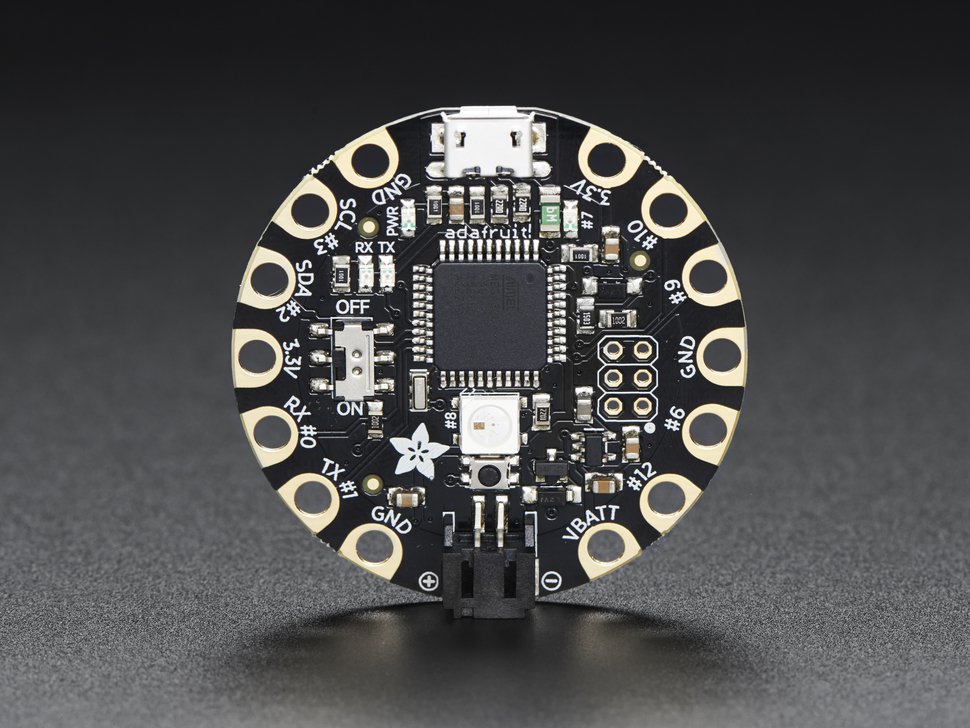

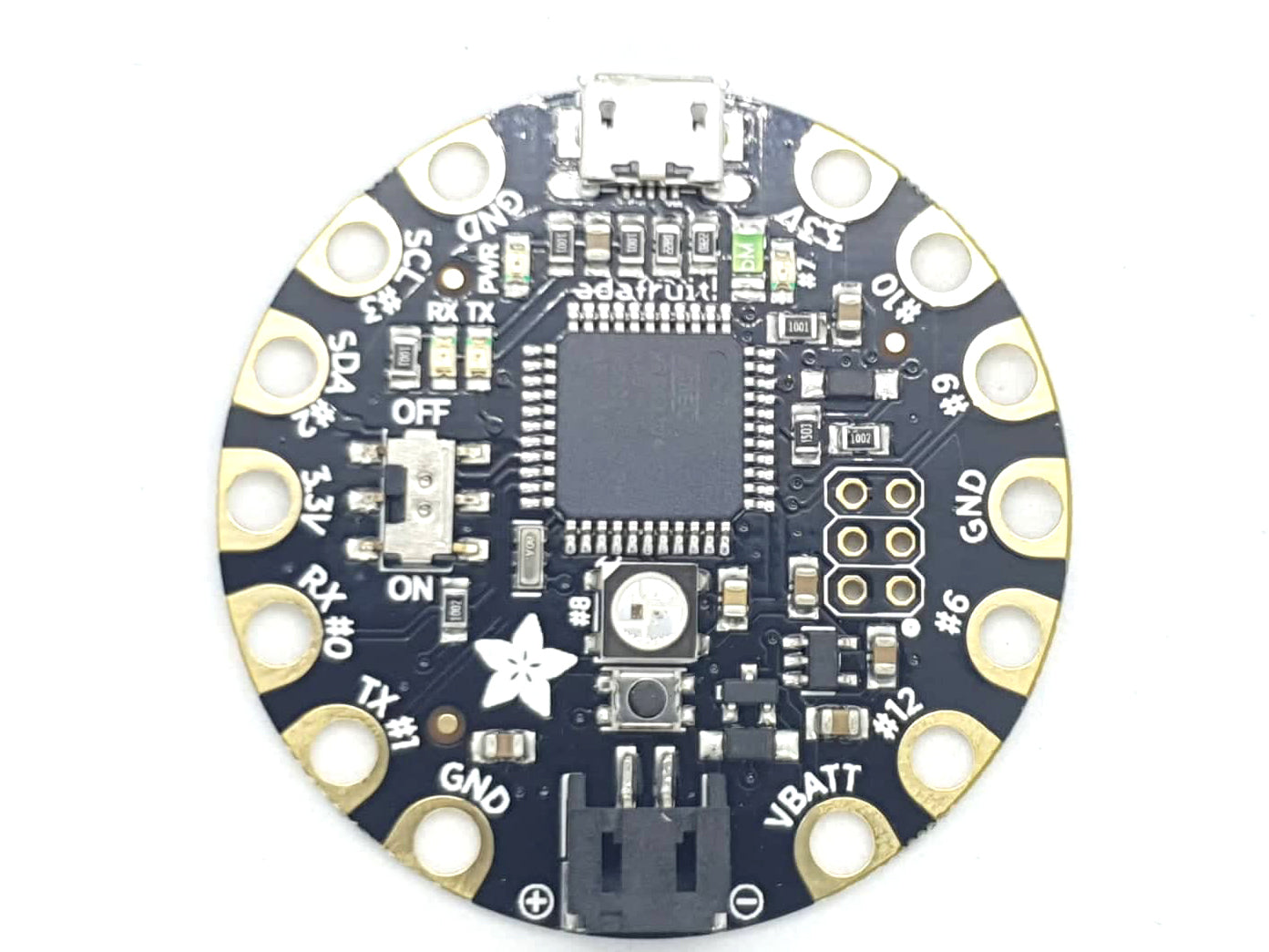

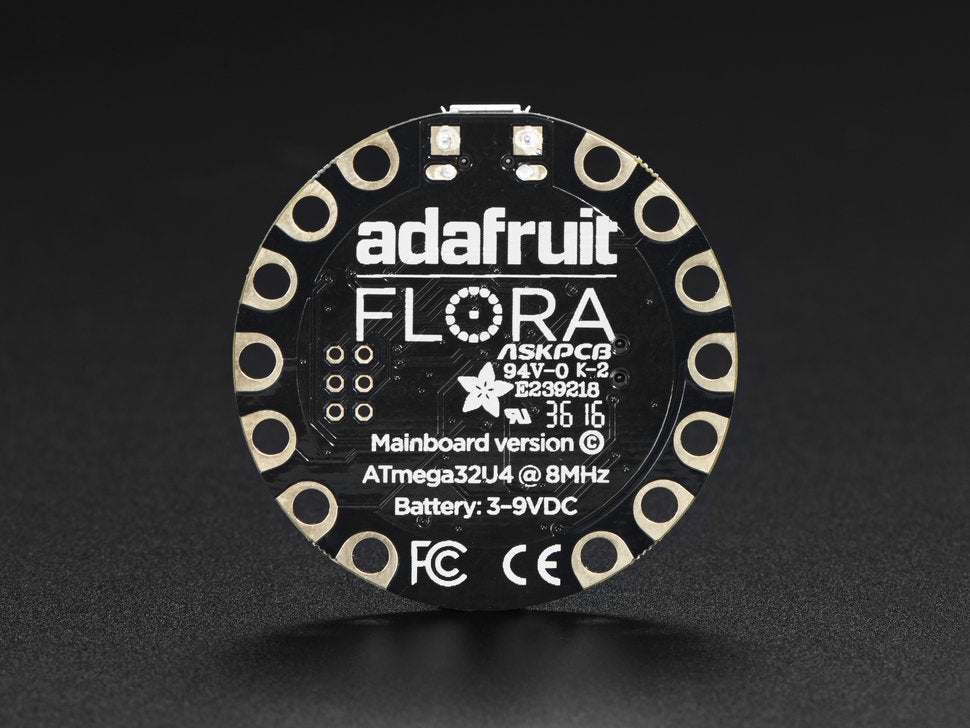

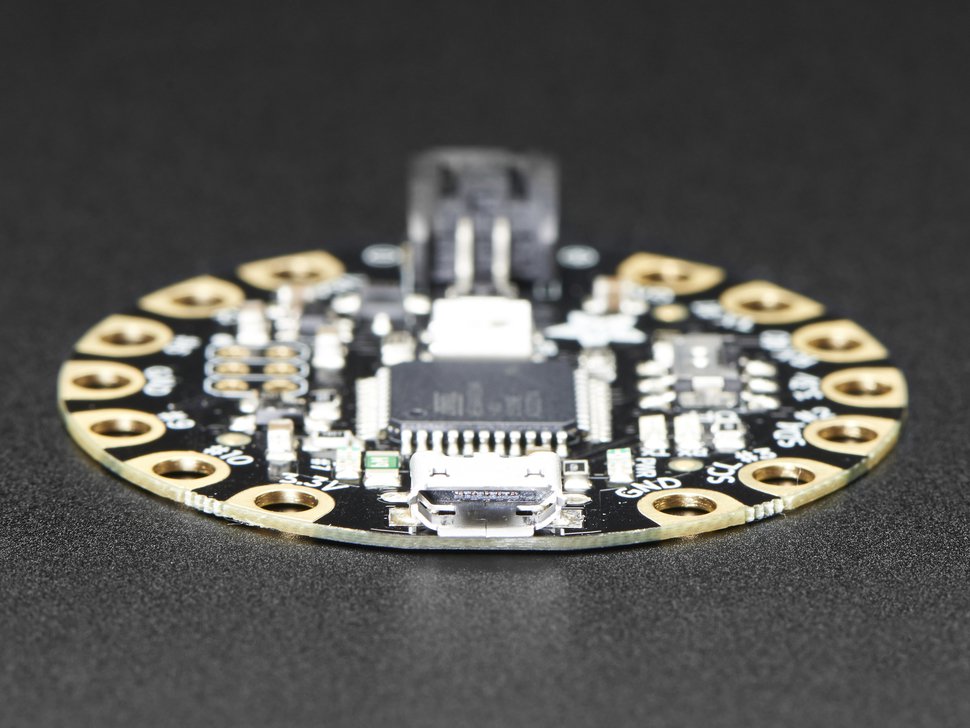

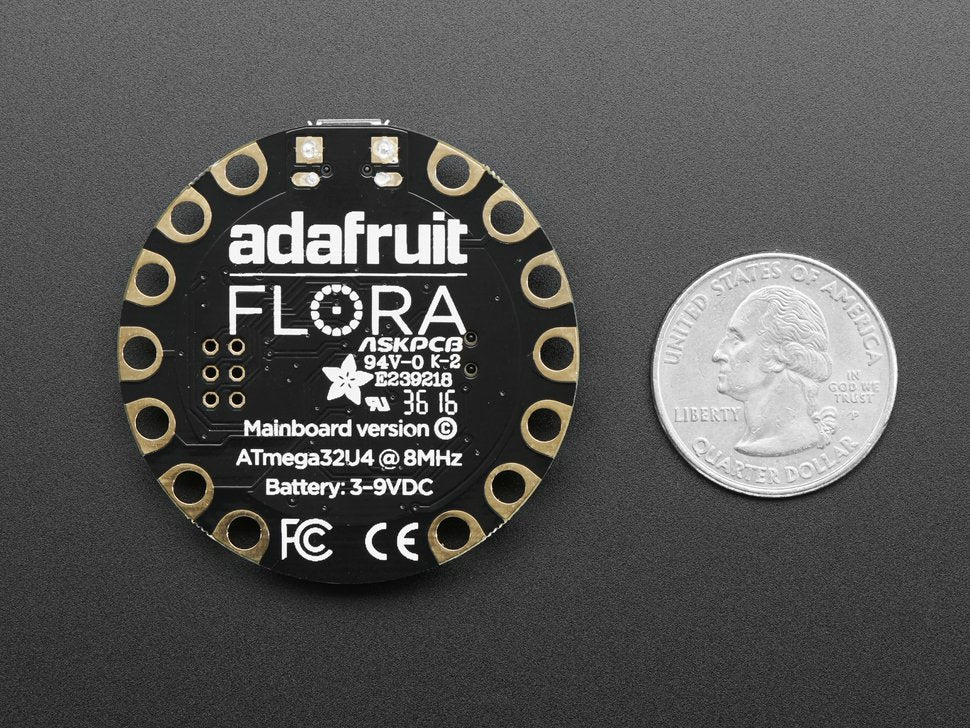

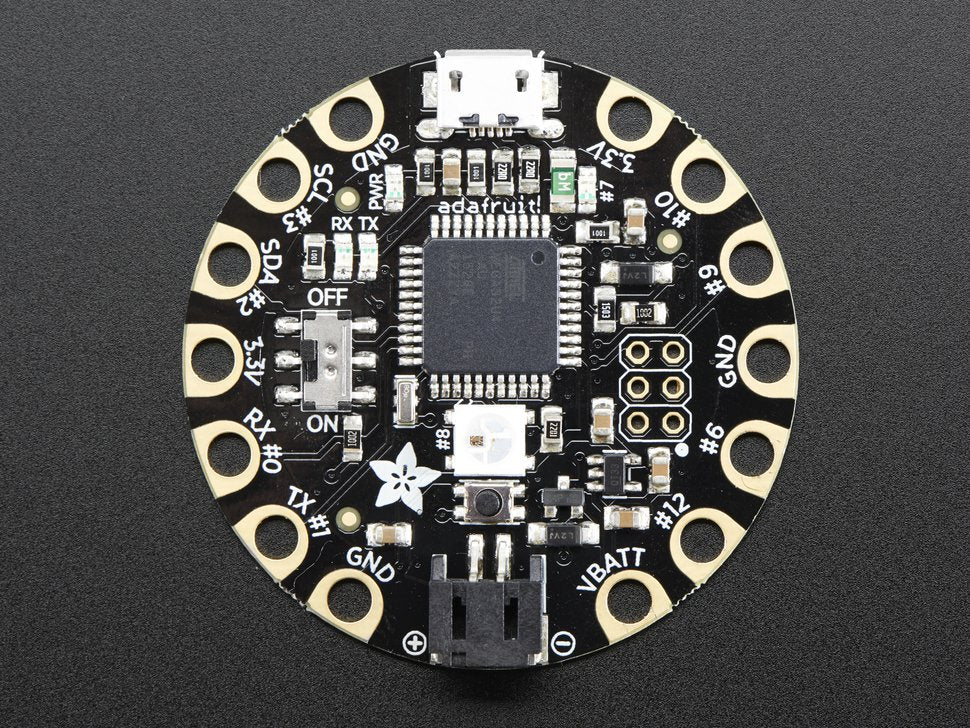

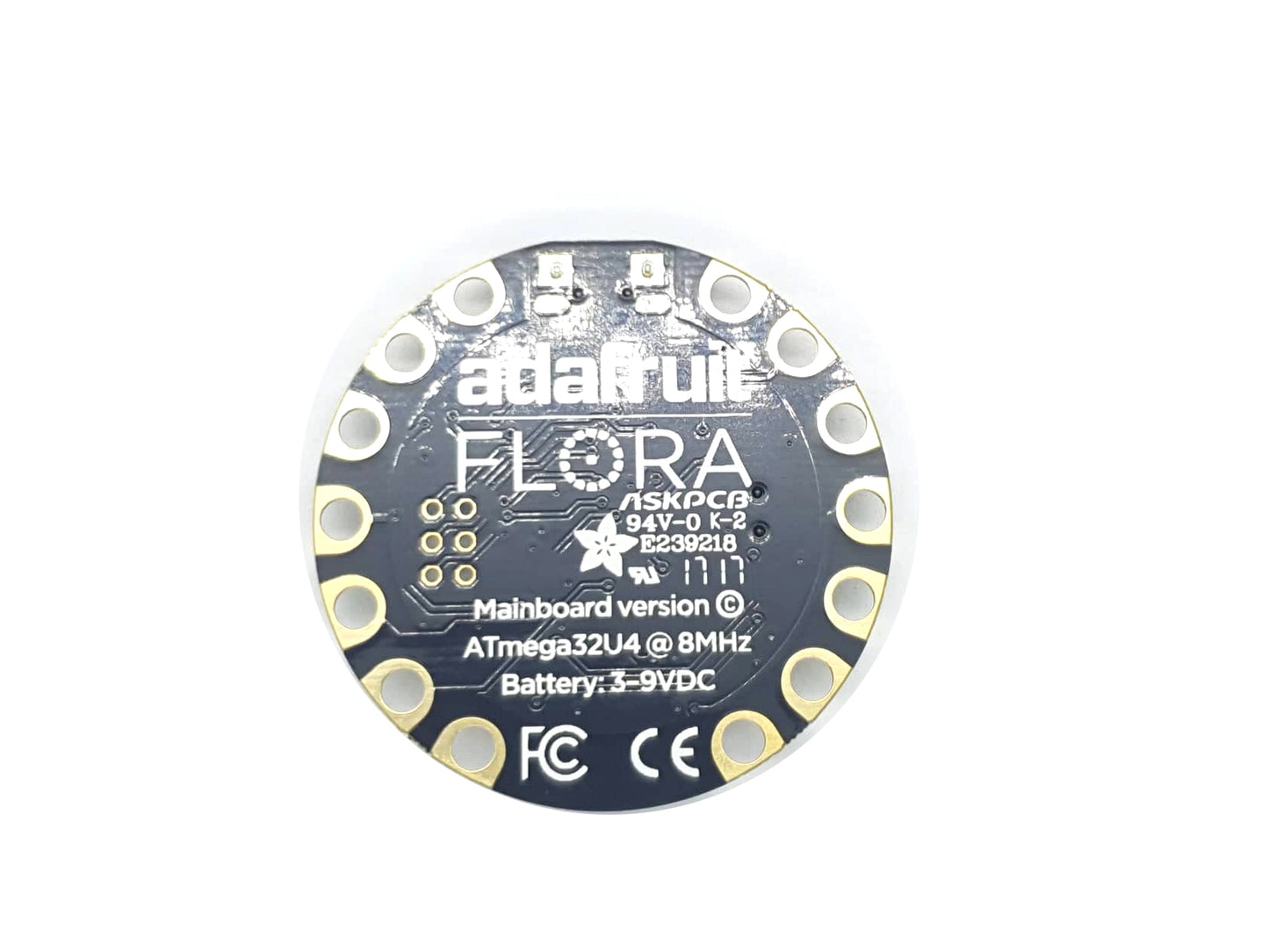

Adafruit FLORA is a round, sewable, Arduino-compatible microcontroller for wearable projects. This is v3, with a new silkscreen and large alligator-clip friendly pads, so you can prototype before you sew.
Built-in USB means you plug it in with a micro-B cable and it shows up ready to program, no extra hardware. It also does USB HID, so it can act as a mouse or keyboard. Power is flexible: polarized JST battery connector (3.5-16V DC) with a protection diode, so a battery in backwards or a 9V won't fry it. Onboard 3.3V 250mA regulator and a 2A power FET switch. Drives up to 50 NeoPixels straight off the onboard supply, or 500 with an external 5V line.
Specs
| Platform | Arduino-compatible (Arduino IDE 1.6.4+) |
| Dimensions | 45mm round x 7mm thick |
| Weight | 4.7 g |
| USB | Micro-B, native USB + HID |
| Battery input | Polarized JST, 3.5-16V DC |
| Regulator | 3.3V 250mA, protection diode + USB fuse |
| Sew pads | 14 tap pads, alligator-clip friendly |
| Extras | Reset button, 4 indicator LEDs, RGB NeoPixel, ICSP header |
No LiPo charger onboard by design. Grab a micro-lipo charger separately if you run LiPo. JST connector may ship off-white or black.
