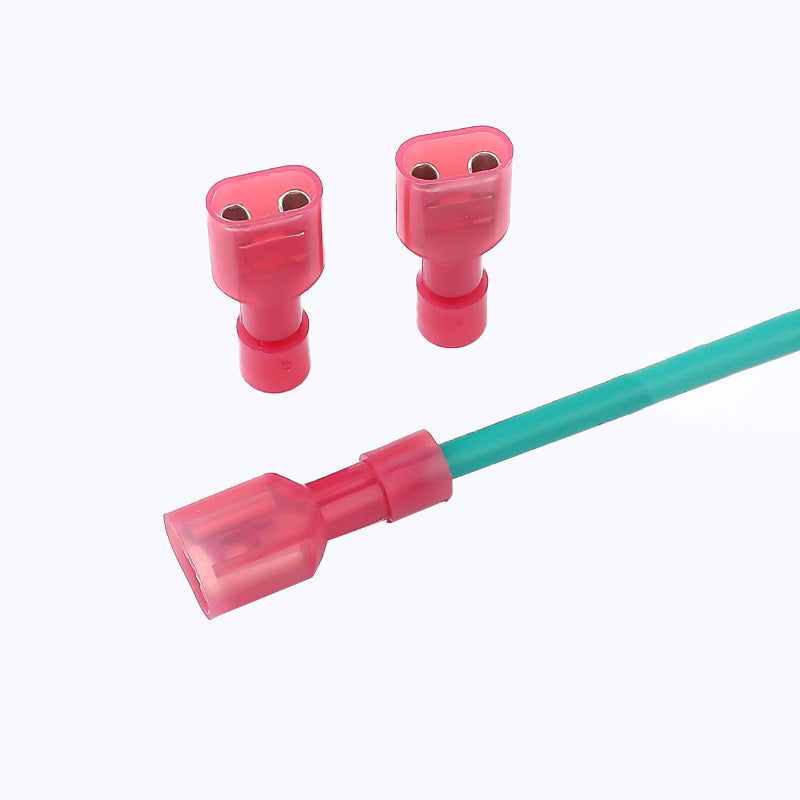

FDFN1.25-250 Red Nylon Fully Insulated Female Spade Terminals
The FDFN1.25-250 Cold-Pressed Nylon Insulated Terminal is a red fully insulated female spade connector for clean and secure wire connections. It is made with tin-plated brass and nylon insulation, making it useful for low-voltage wiring, electronics repair, control panels, automotive wiring, and DIY electrical projects.
This terminal fits 22-16AWG wires and connects to a 0.8 x 6.35mm male spade tab. The fully insulated body helps protect the crimped connection and reduces exposed metal after installation.
Why Choose This Terminal?
- Fully insulated female spade terminal for safer wiring.
- Fits 22-16AWG or 0.5-1.5mm² wires.
- Made with tin-plated brass for good electrical contact.
- Nylon insulation helps protect the connector body.
- Red color makes it easy to identify during wiring work.
- Good for quick-disconnect wiring setups.
- Useful for repair work, control wiring, and DIY electronics.
Common Applications
- Electrical wiring repair
- Control panel wiring
- Automotive wiring projects
- Power supply and switch connections
- Relay and terminal connections
- DIY electronics projects
- Appliance and equipment repair
- Quick-disconnect cable harnesses
What’s Included?
- FDFN1.25-250 Red Nylon Fully Insulated Female Spade Terminals - 100 pcs
Note: Crimping tool, wires, male spade terminals, and other accessories are sold separately unless stated in the package.
Technical Specifications
| Product Type | Fully insulated female spade terminal |
|---|---|
| Model | FDFN1.25-250 |
| Quantity | 100 pcs |
| Material | Tin-plated brass |
| Insulation Material | Nylon |
| Color | Red |
| Wire Range | 22-16AWG / 0.5-1.5mm² |
| Connector Specification | 0.8 x 6.35mm |
| Size | 9 x 22mm |
| Current Rating | 10A max |
| Best For | Wiring repair, quick-disconnect connections, control wiring, automotive wiring, and electronics projects |
Usage Notes
Strip the wire end, insert it into the terminal barrel, then crimp it firmly using a proper crimping tool. Tug the wire gently after crimping to check if the connection is secure.
Match the terminal with the correct wire size and male spade tab. Loose or poorly crimped terminals may cause weak contact, heat, or connection failure.
Important Notes
- Use only with the correct wire range.
- Use a proper crimping tool for a secure connection.
- Check the current rating before using it in a circuit.
- Do not use damaged or loose terminals.
- Disconnect power before installing or replacing terminals.
Recommended Add-ons
FAQ
What is this terminal used for?
It is used to connect a wire to a matching male spade terminal for quick-disconnect wiring.
What wire size does it support?
It supports 22-16AWG wires, or 0.5-1.5mm².
Is this terminal insulated?
Yes. It has a red nylon fully insulated body.
Do I need a crimping tool?
Yes. A proper crimping tool is needed for a secure connection.
How many pieces are included?
This listing includes 100pcs of FDFN1.25-250 terminals.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
