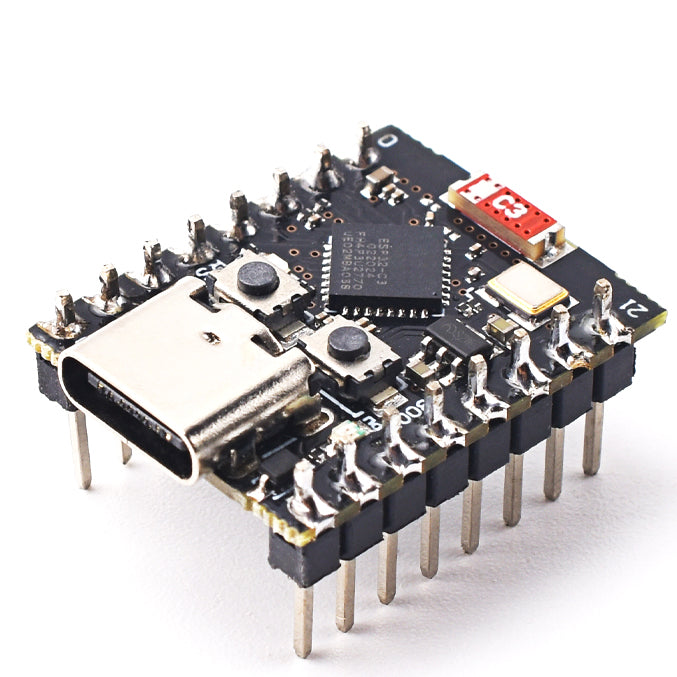

ESP32-C3 Super Mini Development Board
The ESP32-C3 Super Mini Development Board is a compact WiFi and Bluetooth board for IoT projects, smart devices, sensors, automation, and portable electronics. It uses the ESP32-C3 chip with a 32-bit RISC-V processor, making it a small but capable board for wireless projects.
This board is a good choice for users who need an ESP32 board in a smaller size. It supports WiFi, Bluetooth 5 LE, USB-C programming, GPIO control, PWM, ADC, UART, I2C, and SPI for many microcontroller projects.
Available Styles
| ESP32-C3 with Flash Memory Welded | Version with external flash memory soldered on the board. |
|---|---|
| ESP32-C3 Built-in 4M Flash Memory | Version with built-in 4MB flash memory for normal firmware storage. |
Why Choose This ESP32-C3 Super Mini Board?
- Small board size for compact IoT projects.
- Supports 2.4GHz WiFi and Bluetooth 5 LE.
- Uses a 32-bit RISC-V single-core processor.
- Comes with 4MB flash memory, depending on selected style.
- USB-C port for easier programming and power.
- Supports Arduino IDE, ESP-IDF, MicroPython, and PlatformIO.
- Good for sensors, smart devices, automation, and wireless control.
Common Applications
- WiFi IoT projects
- Bluetooth LE projects
- Wireless sensor nodes
- Smart home devices
- Remote monitoring systems
- Wearable and compact electronics
- LED and relay control projects
- Battery-powered prototypes
- Arduino IDE learning projects
What’s Included?
- ESP32-C3 Super Mini Development Board - 1 pc
Note: USB-C cable, headers, sensors, batteries, jumper wires, and other accessories are not included unless stated in the package.
Technical Specifications
| Product Type | ESP32-C3 mini development board |
|---|---|
| Available Styles | ESP32-C3 with flash memory welded / ESP32-C3 built-in 4M flash memory |
| Main Chip | ESP32-C3 |
| Processor | 32-bit RISC-V single-core processor |
| Clock Speed | Up to 160MHz |
| Flash Memory | 4MB, depending on selected style |
| SRAM | 400KB |
| Wireless Support | 2.4GHz WiFi and Bluetooth 5 LE |
| USB Port | USB Type-C |
| GPIO | Multiple GPIO pins for digital I/O, PWM, ADC, UART, I2C, and SPI |
| Logic Level | 3.3V |
| Programming Support | Arduino IDE, ESP-IDF, MicroPython, and PlatformIO |
| Best For | IoT projects, wireless sensors, smart devices, automation, and compact prototypes |
Setup Notes
Connect the board to your computer using a USB-C cable. Install ESP32 board support in Arduino IDE, then select the correct ESP32-C3 board and COM port before uploading code.
Use 3.3V-safe sensors and modules when connecting to GPIO pins. Do not connect 5V signals directly to ESP32-C3 GPIO pins.
Important Notes
- Select the correct style before checkout.
- USB-C cable is not included unless stated in the package.
- Use 3.3V logic on GPIO pins.
- Use a stable USB power source for WiFi projects.
- Check the board pinout before wiring sensors or modules.
- For first upload, you may need to use the BOOT button.
Recommended Add-ons
- ESP32 boards and modules
- Sensors and modules
- Jumper wires
- USB cables
- Breadboards and prototyping parts
FAQ
What is the ESP32-C3 Super Mini used for?
It is used for compact WiFi and Bluetooth projects, IoT devices, sensors, smart controls, and small prototypes.
What is the difference between the two styles?
The flash memory welded style uses external flash soldered on the board. The built-in 4M flash style uses built-in 4MB flash memory.
Can I use this with Arduino IDE?
Yes. Install ESP32 board support in Arduino IDE before uploading code.
Does it support Bluetooth?
Yes. ESP32-C3 supports Bluetooth 5 LE.
Are the GPIO pins 5V tolerant?
No. Use 3.3V logic. Do not connect 5V signals directly to the GPIO pins.
